Mahindra 1123 HST Cab vs Kubota BX23S | Side-by-side comparison | ITC Resource Center
Compare Tractors

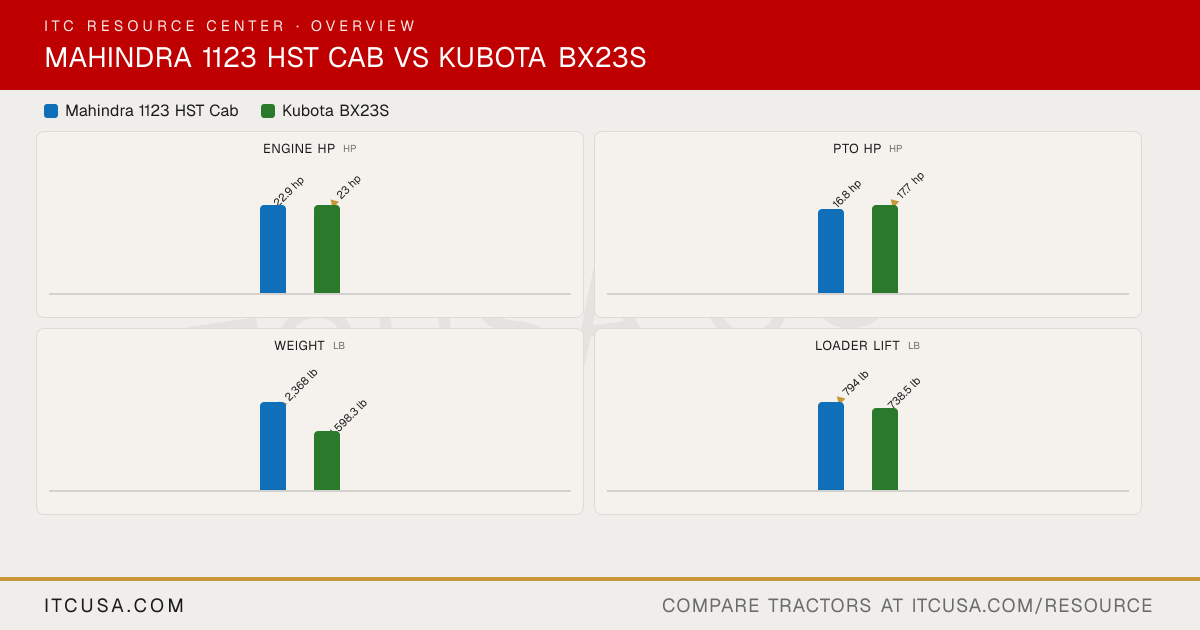

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.
Pump Type
Not Published
Hydrostatic transmission
Steering Flow
3.8 gpm
1.0 gpm
Implement Flow
7.6 gpm
6.2 gpm (23.5 l/min.)
Total Hydraulic Flow
11.4 gpm
6.2 gpm
Hydraulic System Type
Open Center, full-live hydraulic with position control
Open center tandem pump gear type
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.4 gpm
6.2 gpm
No. of Optional Remote Valves
Single or dual
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
Not Published
2 valves
System Operating Pressure
—
12.3 MPa to 12.8 MPa
PTO Rear
540 rpm @ 2837 rpm
STD 540 rpm
PTO Type
Independent Wet Clutch
Live independent PTO (with hydraulic clutch)
Lift Control Type
Position Control
Quarter-inching valve
Hitch Lift Capacity
Not Published
1,213 lbs.
Mid-PTO Availability
Optional; 2500 rpm @ 2837 rpm
STD (2500rpm)
Category, 3-Point Hitch
CAT I with check chains
SAE Category 1
Hitch Lift Capacity (at 24”)
771 lb
680 lb
R3 Turf - Rear
26X12-12
26×12-12
R3 Turf - Front
18X8.5-10
18×8.5-10
Tire Size & Options
R3 Turf, R4 Industrial
Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R4 Industrial - Rear
26X12-12
26×12-12
R4 Industrial - Front
18X8.5-10
18×8.5-10
R1 Agricultural - Rear
Not Published
Not Applicable
R1 Agricultural - Front
Not Published
Not Applicable
Coolant Capacity
Not Published
0.8 gal (3.3 U.S.qts.)
Crankcase Capacity
Not Published
0.9 gal (3.4 U.S.qts.)
Fuel Tank Capacity
6.6 gal
6.6 gal (6.6 U.S.gals.)
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
2.98 U.S. gals.
Loader Lift Height
68 in
71.0 in
Loader Breakout Force
1433 lb
6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]
Quick Attach Loader System
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
