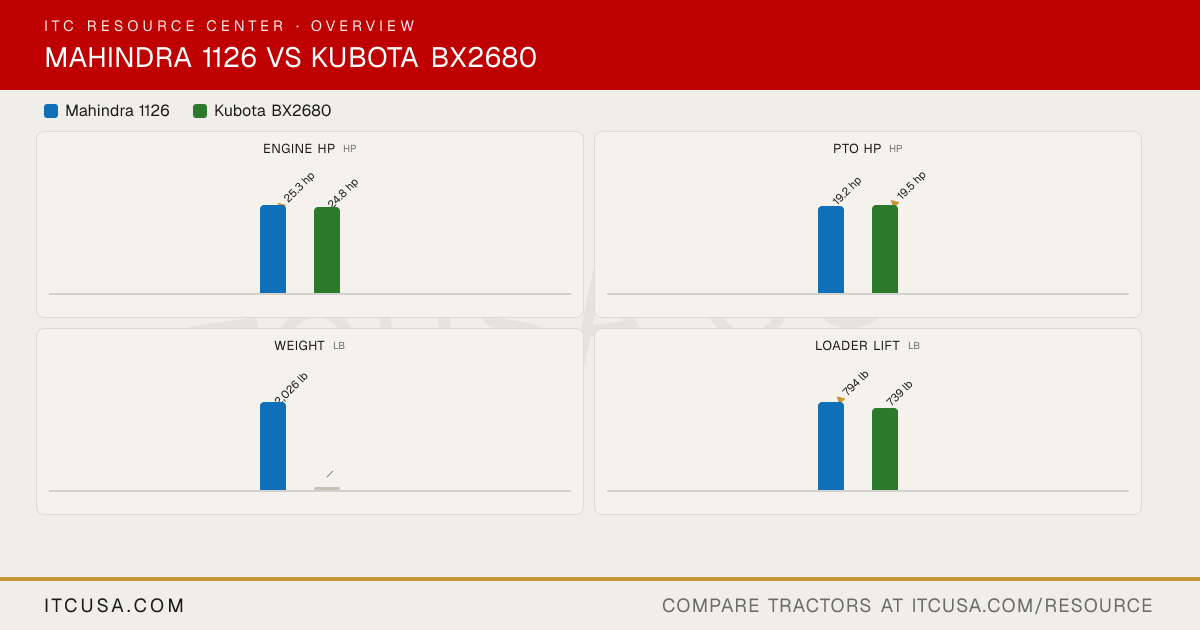

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra1126
KubotaBX2680
PTO Power
19.2 hp
19.5 hp
Alternator
55 A, 12 V
40 A, 12 V
Air Cleaner
Not Published
Sheet net and replaceable treated paper element, spin on oil filter
Engine Type
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Liquid cooled, 4-cycle, diesel
Fuel System
Indirect Injection
Direct injection
Displacement
67.2 in³
61.1 in³
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
3200 rpm
Cooling System Type
Water-Cooled
Water with pressurized radiator, reverse air-flow design
Engine Manufacturer
Mitsubishi
Kubota
Engine Power (Gross)
25.3 hp
24.8 hp
Engine Emissions Constraints
No DPF
Not Published
Weight with ROPS and Loader
2026 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
7-Year Limited Powertrain Warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Open center tandem pump gear type
Steering Flow
3.8 gpm
1.0 gpm
Implement Flow
7.6 gpm
5.2 gpm
Total Hydraulic Flow
11.4 gpm
6.2 gpm
Hydraulic System Type
Open Center, full-live hydraulic with position control
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.4 gpm
6.2 gpm
No. of Optional Remote Valves
Single or dual
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm @ 2837 rpm
STD (540 rpm)
PTO Type
Independent Wet Clutch
Live independent PTO (with hydraulic clutch)
Lift Control Type
Position Control
Not Published
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Optional; 2500 rpm @ 2837 rpm
STD (2500 rpm)
Category, 3-Point Hitch
CAT I with check chains
SAE Category I Optional
Hitch Lift Capacity (at 24”)
771 lb
680 lb
R3 Turf - Rear
26X12-12
26X12-12
R3 Turf - Front
18X8.5-10
18X8.5-10
Tire Size & Options
R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
26X12-12
R4 Industrial - Front
18X8.5-10
18X8.5-10
R1 Agricultural - Rear
Not Published
26X12-12
R1 Agricultural - Front
Not Published
18X8.5-10
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
6.6 gal
6.6 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
68 in
71.0 in
Loader Breakout Force
1433 lb
1,286 lbf (bucket pivot pin)
Quick Attach Loader System
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)
794 lb
739 lb
Clutch
Not Applicable
Dry type single plate - Main clutch 9.45 in.
No. of Speeds
Infinite / 2 ranges
2 Range (Low-High)
Transmission Type
HST
Hydrostatic transmission
Max Travel Speed (Forward)
7.3 mph
8.1 mph
Max Travel Speed (Reverse)
Not Published
6.2 mph
Differential Lock & Limited Slip Options
Not Published
Rear differential lock standard
Brakes
Single Pedal
Mechanical, wet disc type
Steering
Hydrostatic Power Steering
Integral power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
4WD: Bevel gear front axle, non-adjustable tread spacing
