Mahindra 1126 HST Cab vs Kubota LX2610 | Side-by-side comparison | ITC Resource Center
Compare Tractors

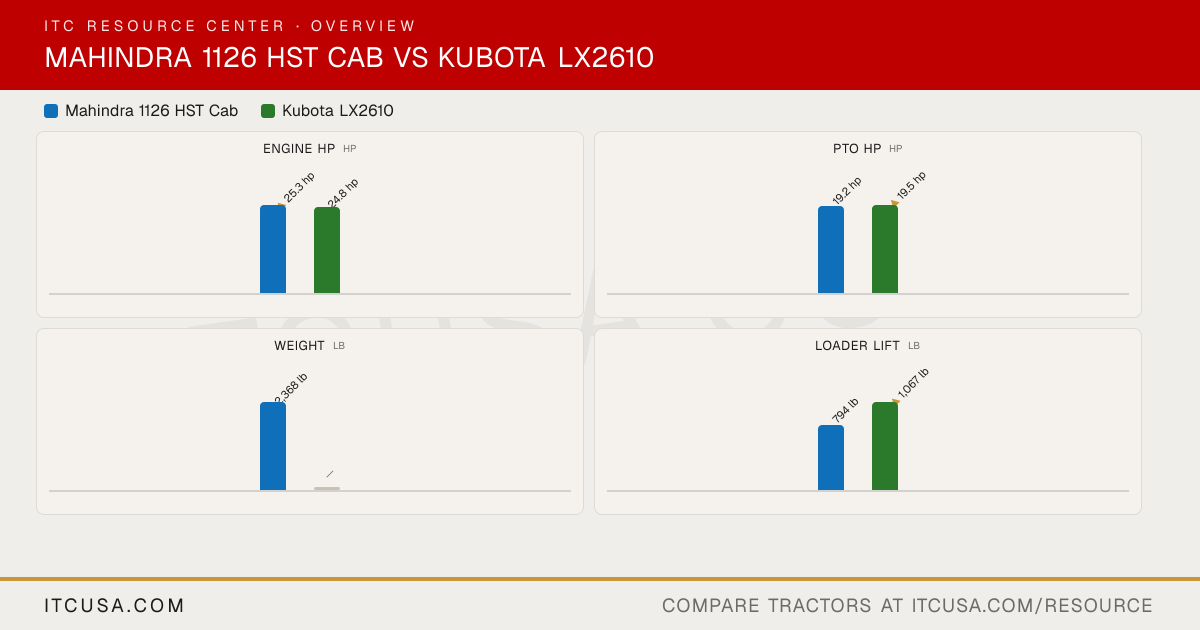

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra1126 HST Cab
KubotaLX2610
Engine Manufacturer
Mitsubishi
Kubota
Engine Model
MVL3E3
D1305-E4-D36-R
Engine Type
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
E-TVCS, liquid cooled, 3-cylinder, diesel
No. of Cylinders
3
3
Displacement
67.2 in³
77 in³
Rated Engine Speed
3000 rpm
2500 rpm
Engine Power (Gross)
25.3 hp
24.8 hp
PTO Power
19.2 hp
19.5 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water-Cooled
Pressurized radiator
Air Cleaner
Not Published
4.5 in Dual paper element
Fuel System
Indirect Injection
Indirect injection
Alternator
55 A, 12 V
40 A, 12 V
Pump Type
Not Published
Dual pump
Implement Flow
7.6 gpm
5.0 gpm
Steering Flow
3.8 gpm
3.7 gpm
Total Hydraulic Flow
11.2 gpm
8.7 gpm
Overall Hydraulic Pump Flow
11.2 gpm
8.7 gpm
Hydraulic System Type
Open Center, full-live hydraulic with position control
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Single or dual
Optional, up to 2
Fuel Tank Capacity
6.6 gal
7.1 gal
Coolant Capacity
Not Published
4.5 qt
Crankcase Capacity
Not Published
4.2 qt
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Front Axle Fluid Capacity
Not Published
5.0 qt
PTO Type
Independent Wet Clutch
Independent
PTO Rear
540 rpm @ 2837 rpm
540 rpm
Mid-PTO Availability
Optional; 2500 rpm @ 2837 rpm
2500 rpm
Category, 3-Point Hitch
CAT 1 with check chains
Category I
Hitch Lift Capacity
Not Published
2139 lb
Hitch Lift Capacity (at 24”)
771 lb
1676 lb
Lift Control Type
Position Control
Position control valve
Transmission Type
HST - 2 Range
Hydrostatic transmission
No. of Speeds
Infinite forward and reverse (2 ranges)
3 ranges
Max Travel Speed (Forward)
7.3 mph
11.2 mph
Max Travel Speed (Reverse)
Not Published
8.4 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Differential lock standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic Power Steering
Hydraulic power steering
Brakes
Single Pedal
Multi-plate wet disc
Seat Suspension & Adjustability
Not Published
Deluxe high-back suspension seat
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1100 lb
Overall Length with 3-Point Hitch
100.4 in
101.8 in (without 3-point hitch)
Overall Width
46.3 in
53.7 in
Wheelbase
55.1 in
65.6 in
Ground Clearance
6.7 in
14.6 in
Min. Turn Radius without Brakes
7.2 ft (with brake applied)
6.9 ft (with brake applied)
Height to Top of ROPS
Not Published
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
80.5 in
84.6 in
Tractor Weight (Base)
1962 lb
1830 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
2368 lb
Not Published
Tire Size & Options
R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front
Not Published
7.0-12
R1 Agricultural - Rear
Not Published
12.4-16
R3 Turf - Front
18x8.5-10
24x8.50-14
R3 Turf - Rear
26x12-12
13.6-16
R4 Industrial - Front
18x8.5-10
23X8.50-14 / 25X8.50-14
R4 Industrial - Rear
26x12-12
12.4-16 / 15-19.5
Quick Attach Loader System
L11: Front loader skid-steer couplers for superfast hookups
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
L11
LA535
Loader Lift Height
L11: 68 in
84 in
Loader Lift Capacity (Full Height)
L11: 794 lb
1067 lb
Loader Breakout Force
L11: 1433 lb
2245 lb
Warranty Length & Coverage
7-Year Limited Powertrain Warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
