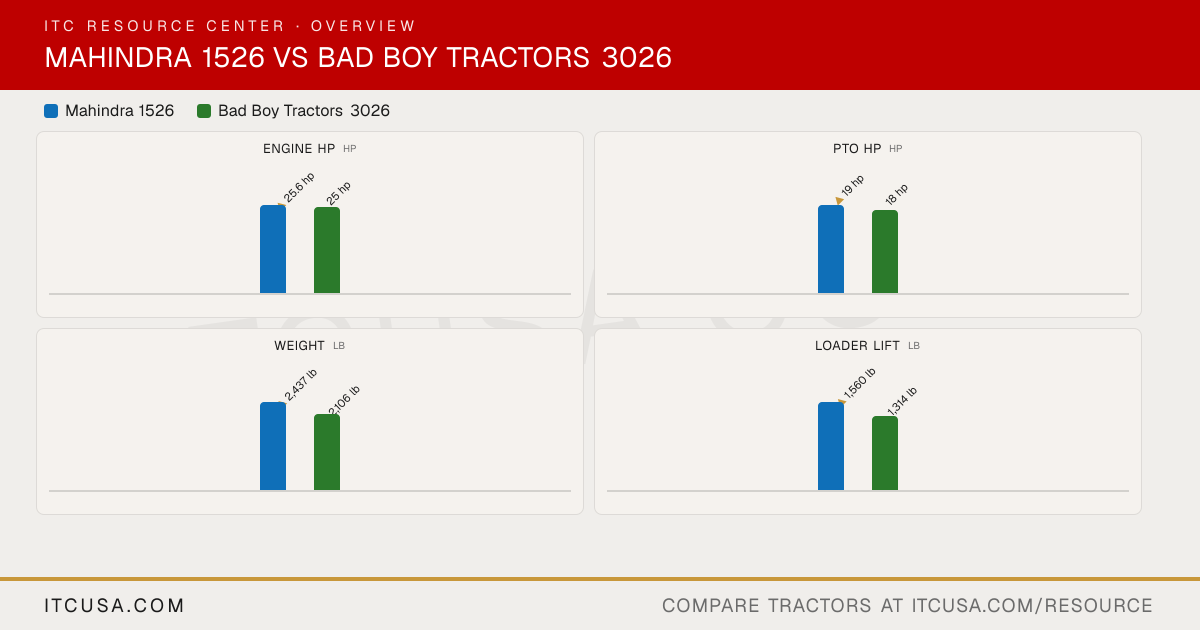

▶ EngineEngine Manufacturer Mitsubishi TYM Engine Model S3L2 A1100N2 Engine Type Tier IV, four-cycle, valve in cylinder head, naturally aspirated, indirect-injection, water-cooled diesel 3 cylinder, water-cooled diesel, natural aspiration, swirl chamber No. of Cylinders 3 3 Displacement 80.4 in³ 71.7 in³ Rated Engine Speed 2500 rpm 2600 rpm Engine Power (Gross) 25.6 hp 25 hp PTO Power 19 hp 18 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Not Published Dry element Fuel System Not Published Indirect injection (swirl chamber) Alternator 50 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Not Published Gear type pump with primary and secondary pumps Implement Flow 7.5 gpm 4.3 gpm Steering Flow 3.3 gpm 3.1 gpm Total Hydraulic Flow 10.8 gpm (7.5 + 3.3, computed) 7.4 gpm Overall Hydraulic Pump Flow Not Published 7.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 6.08 gal Coolant Capacity Not Published 1.21 gal Crankcase Capacity Not Published 0.79 gal Transmission / Hydraulic System Capacity Not Published 2.90 gal Front Axle Fluid Capacity Not Published 0.79 gal ▶ PTO & HitchPTO Type Independent (1526 Shuttle); Live (1526 HST) Live PTO (6 spline shaft) PTO Rear 540 rpm 540 / 960 rpm Mid-PTO Availability Optional; 2000 rpm Optional, 2,500 rpm Category, 3-Point Hitch CAT I with telescopic stabilizers Category I Hitch Lift Capacity 2,646 lb 1,433 lb Hitch Lift Capacity (at 24”) Not Published 974 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Constant mesh on gear shift, synchro mesh on F/R shuttle (1526 Shuttle); 3 range HST (1526 HST) Hydrostatic (HST) No. of Speeds 8F/8R (1526 Shuttle); Infinite, 3 ranges (1526 HST) 3 range (L/M/H) Max Travel Speed (Forward) Not Published 14.8 mph Max Travel Speed (Reverse) Not Published 14.8 mph Clutch Single plate, dry Dry, single plate Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Steel frame with cast iron axles Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Deluxe suspension seat Adjustable seat, flips up and back for rear backhoe operation Front Axle Type Not Published Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 63 in 53.8 in Wheelbase Not Published 65.7 in Ground Clearance Not Published 16.4 in Min. Turn Radius without Brakes 7.9 ft Not Published Height to Top of ROPS 81.5 in 91.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 121.3 in (with industrial tires) 110 in ▶ WeightTractor Weight (Base) 2,437 lb (1526 Shuttle, operating weight); 2,459 lb (1526 HST, operating weight) 2,106 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, Industrial, Turf R4 Industrial (25x8.50-14 front / 14x17.5 rear) R1 Agricultural - Front 7x16 7-16 6PR R1 Agricultural - Rear 11.2x24 11.2-20 R3 Turf - Front 25x8.5-14 Not Published R3 Turf - Rear 13.6x16 Not Published R4 Industrial - Front 27x8.5-15 25x8.50-14 R4 Industrial - Rear 15x19.5 14x17.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick attach front loader Loader Model 1526L BBL300 Loader Lift Height 1526L: 84 in 86 in Loader Lift Capacity (Full Height) 1526L: 1,560 lb (at pivot pin) 1,314 lb (at pivot pin) Loader Breakout Force 1526L: 2,795 lb (at pivot pin) 1,960 lbf ▶ WarrantyWarranty Length & Coverage 7-year limited powertrain warranty Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
