Mahindra 1640 vs Kubota LX4020 | Side-by-side comparison | ITC Resource Center
Compare Tractors

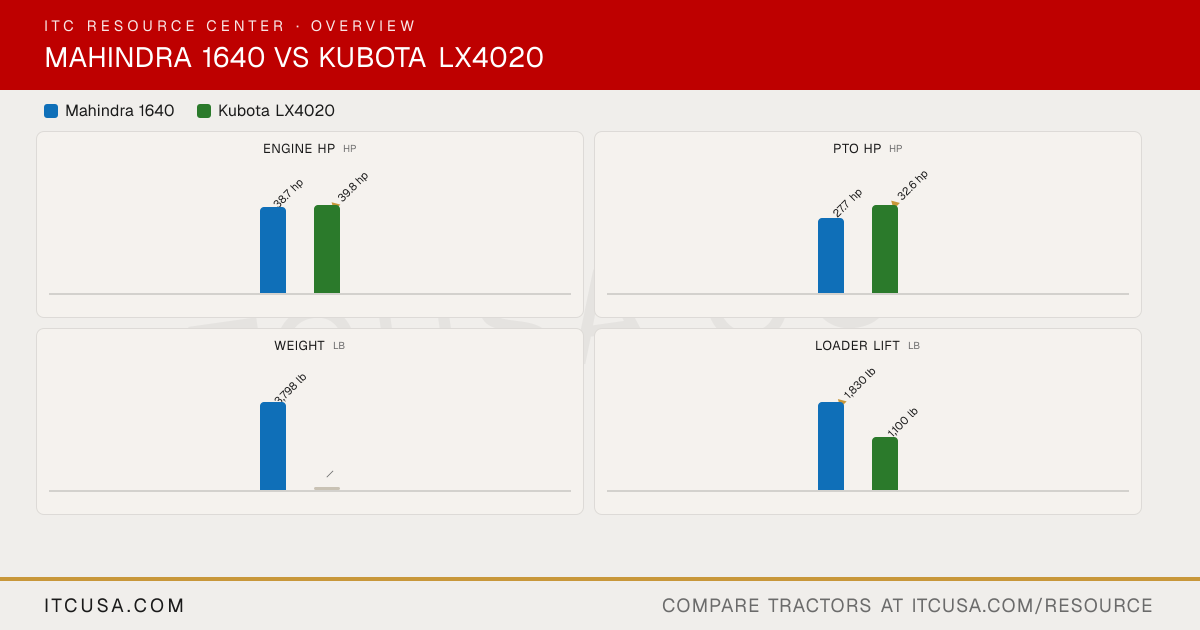

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra1640
KubotaLX4020
PTO Power
27.7 hp
32.6 hp
Alternator
90 A, 12 V
Not Published
Air Cleaner
Not Published
6 inch paper filter (with dual element)
Engine Type
Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System
Direct Injection
Not Published
Displacement
166.7 in³
91.4 in³
No. of Cylinders
4
4
Rated Engine Speed
2400 rpm
2700 rpm
Cooling System Type
Water-cooled
Pressurized radiator
Engine Manufacturer
Mahindra
Kubota
Engine Power (Gross)
38.7 hp @ 400 rpm
39.8 hp
Engine Emissions Constraints
DOC / No DPF
Not Published
Weight with ROPS and Loader
3798 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
7-Year Limited Powertrain Warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Dual pump
Steering Flow
3.4 gpm
Not Published
Implement Flow
7.7 gpm
Not Published
Total Hydraulic Flow
11.1 gpm
9.5 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.1 gpm
9.5 gpm
No. of Optional Remote Valves
1
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm @ 2376 rpm
540 rpm
PTO Type
Live with o/r clutch
Independent
Lift Control Type
Position Control
Position control valve
Hitch Lift Capacity
2646 lb
2535 lb
Mid-PTO Availability
Optional; 2000 @ 2526 rpm
2460 rpm
Category, 3-Point Hitch
CAT I with Telescoping Stabilizers & Flex Links
Category I
Hitch Lift Capacity (at 24”)
1720 lb
1962 lb
R3 Turf - Rear
41X14-20
Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front
27X10.5-15
24X8.50-14
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf
R4 Industrial - Rear
43X16-20
Not Applicable
R4 Industrial - Front
28X8.5-15
Not Applicable
R1 Agricultural - Rear
11.2X24
320/85D16
R1 Agricultural - Front
7X16
180/85D12
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
5.0 qt
Fuel Tank Capacity
7.7 gal
8.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
5.5 gal
Loader Lift Height
92 in
87.6 in
Loader Breakout Force
2777 lb
Not Published
Quick Attach Loader System
433.2 gal: Front loader with skid-steer couplers for superfast hookups.
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
