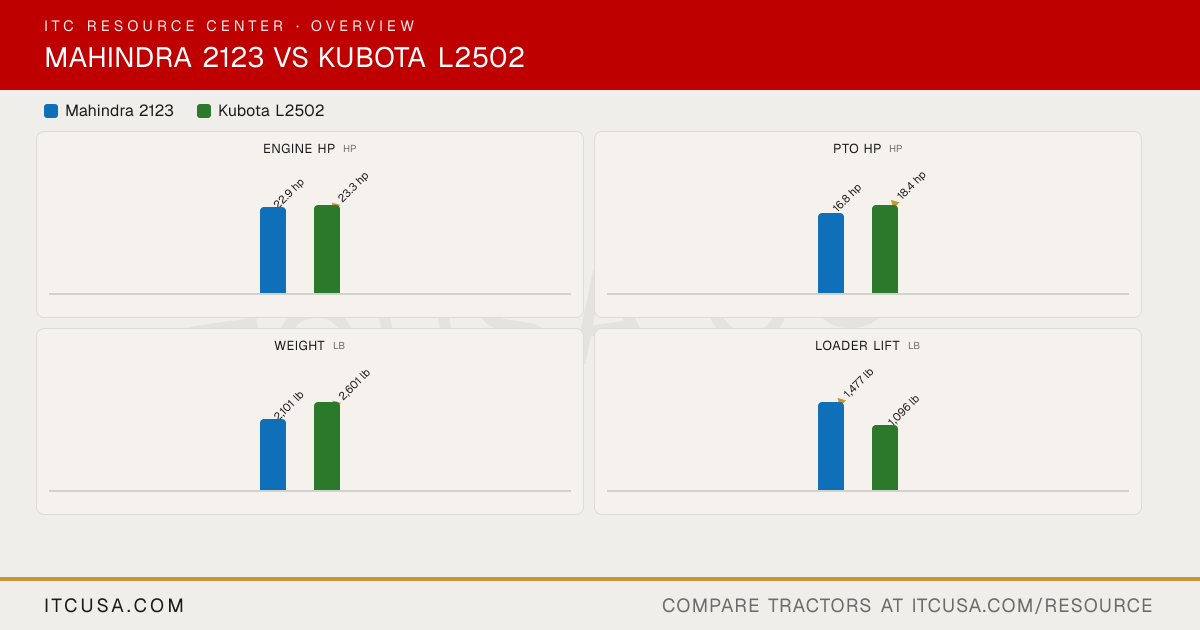

▶ EngineEngine Manufacturer Mitsubishi Kubota Engine Model MVS3L2 D1703-M-DI-E4 / D1703-M-DI-E4K Engine Type Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine Direct injection, vertical, water-cooled 4-cycle, diesel No. of Cylinders 3 3 Displacement 80.4 in³ 100.5 in³ Rated Engine Speed 2500 rpm 2200 rpm Engine Power (Gross) 22.9 hp 23.3 hp PTO Power 16.8 hp 18.4 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Water-cooled Air Cleaner Not Published Dry type, single element Fuel System Indirect Injection Direct injection Alternator 55 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 6.3 gpm 5.2 gpm Steering Flow 5.0 gpm 3.1 gpm Total Hydraulic Flow 11.2 gpm 8.28 gpm (5.15 + 3.13, computed) Overall Hydraulic Pump Flow 11.2 gpm 8.28 gpm (5.15 + 3.13, computed) Hydraulic System Type Open center, full-live hydraulic with position control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 or 2 (single or dual) Not Published ▶ Fluid CapacityFuel Tank Capacity 5.8 gal 11.1 gal Coolant Capacity Not Published 6.3 qt Crankcase Capacity Not Published 6.0 qt Transmission / Hydraulic System Capacity Not Published HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal Front Axle Fluid Capacity Not Published 4.8 qt ▶ PTO & HitchPTO Type Live DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet PTO Rear 540 rpm @ 2376 rpm 540 rpm Mid-PTO Availability Available; 2500 @ 2500 Not Published Category, 3-Point Hitch CAT I with Telescoping stabilizers SAE Category I Hitch Lift Capacity Not Published 1874 lb Hitch Lift Capacity (at 24”) 1760 lb 1389 lb Lift Control Type Position Control Position control ▶ Transmission & DrivetrainTransmission Type HST DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range) No. of Speeds Infinite / 3 Ranges DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range Max Travel Speed (Forward) 11.2 mph DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph Max Travel Speed (Reverse) Not Published DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph Clutch Not Published DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable Differential Lock & Limited Slip Options Not Published Rear differential lock, pedal operated ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Integral type power steering Brakes Two Pedal Mechanical, wet disc type Seat Suspension & Adjustability Not Published Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type Not Published Cast-iron front axle Front Axle Rating 2425 lb Not Published Drawbar Capacity Not Published 730 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 112.7 in DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch) Overall Width 54.4 in 55.1 in Wheelbase 61.4 in DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in Ground Clearance 13.4 in DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in Min. Turn Radius without Brakes 8.2 ft DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied) Height to Top of ROPS 93.6 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 84.4 in Not Published ▶ WeightTractor Weight (Base) 2101 lb (open station); 2607 lb (cab) DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb Weight with ROPS and Loader 2557 lb Not Published Weight with Cab and Loader 3063 lb Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R4 Industrial R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front Not Published DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front 8.5x14 DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14 R3 Turf - Rear 13.5-16 13.6-16 R4 Industrial - Front 8.5x14 DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15 R4 Industrial - Rear 12.4-16 DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System L21: Skid-steer couplers for superfast hookups Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) Loader Model L21 (55 in bucket) LA526 Loader Lift Height L21: 77 in LA526: 94.8 in Loader Lift Capacity (Full Height) L21: 1,477 lb LA526: 1,096 lb Loader Breakout Force L21: 2,160 lb Not Published ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
