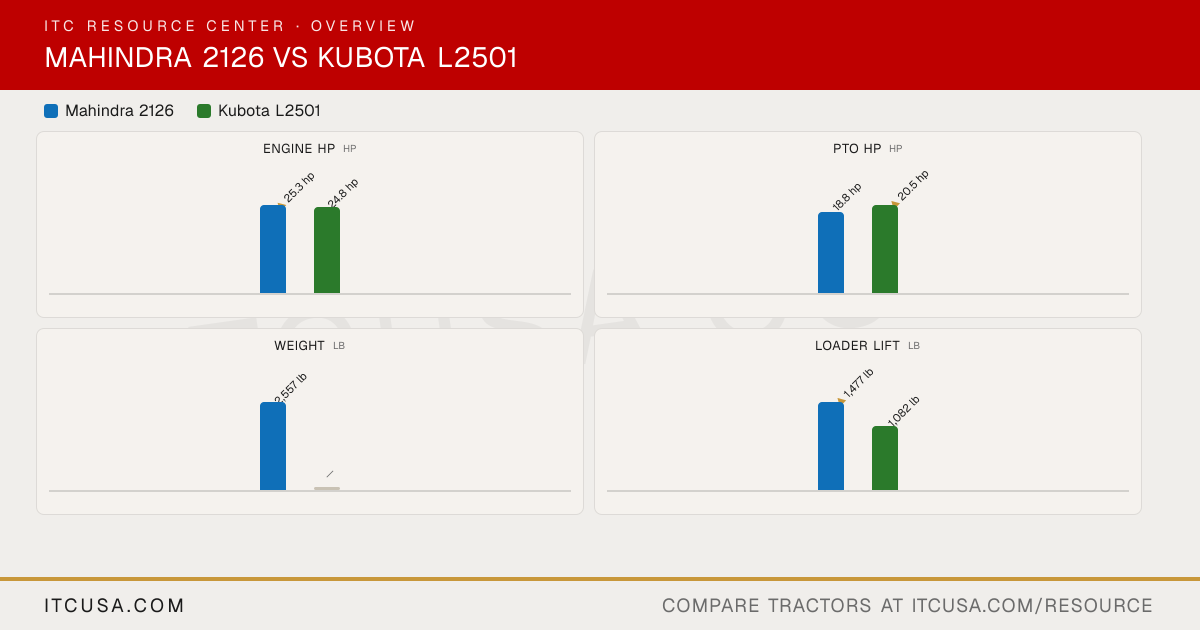

▶ EngineEngine Manufacturer Mitsubishi Kubota Engine Model MVS3L2 D1703-M-DI-E4 Engine Type Four-stroke, naturally aspirated, indirect injection, water-cooled diesel Direct injection, vertical, water-cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 80.4 in³ 100.47 in³ Rated Engine Speed 2700 rpm 2200 rpm Engine Power (Gross) 25.3 hp 24.8 hp PTO Power 18.8 hp 19 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Not Published Dry paper single element (dual optional) Fuel System Indirect Injection Direct injection Alternator 55 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Not Published Open center tandem pump, gear type Implement Flow 6.3 gpm 5.15 gpm Steering Flow 5 gpm 3.11 gpm Total Hydraulic Flow 11.2 gpm 8.26 gpm Overall Hydraulic Pump Flow 11.2 gpm 8.26 gpm Hydraulic System Type Open center, full-live hydraulic with position control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Single or dual Up to 3: self-canceling detent valve or float detent valve ▶ Fluid CapacityFuel Tank Capacity 5.8 gal 10.0 gal Coolant Capacity Not Published 6.3 qt Crankcase Capacity Not Published 6.0 qt Transmission / Hydraulic System Capacity Not Published HST (4WD): 6.2 gal; DT (2WD): 7.1 gal; DT (4WD): 7.3 gal Front Axle Fluid Capacity Not Published 6.9 qt ▶ PTO & HitchPTO Type Live F (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running PTO Rear 540 rpm @ 2376 rpm 540 rpm Mid-PTO Availability Available; 2500 @ 2500 No mid-PTO offered Category, 3-Point Hitch CAT I with Telescoping stabilizers Category I Hitch Lift Capacity Not Published 1,918 lb Hitch Lift Capacity (at 24”) 1,760 lb 1,389 lb Lift Control Type Position Control Position control ▶ Transmission & DrivetrainTransmission Type HST Hydrostatic transmission (3-range) No. of Speeds Infinite / 3 Ranges 3-range Max Travel Speed (Forward) 11.2 mph 11.5 mph Max Travel Speed (Reverse) Not Published 10.3 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Integral type power steering Brakes Two Pedal Wet disc type Seat Suspension & Adjustability Not Published Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type Not Published Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published 2,865 lb (4WD, at 43.1 in tread) Drawbar Capacity Not Published 730 lb ▶ Dimensions & ManeuverabilityOverall Width 54.4 in 55.1 in Wheelbase 61.4 in 63.3 in Ground Clearance 13.4 in 13.4 in Min. Turn Radius without Brakes 8.2 ft 8.2 ft (with brake applied) Height to Top of ROPS 93.6 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 84.4 in Not Published Overall Length 112.7 in 106.3 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 2,101 lb (open station, operating weight); 2,607 lb (cab, operating weight) 2,623 lb Weight with ROPS and Loader 2,557 lb (2,101 + 456, computed; L21 loader shipping weight) Not Published Weight with Cab and Loader 3,063 lb (2,607 + 456, computed; L21 loader shipping weight) Not Published ▶ Tire OptionsTire Size & Options Turf, Industrial R1 Agricultural; R4 Industrial R1 Agricultural - Front Not Published 7.2-16 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front 8.5x14 Not Published R3 Turf - Rear 13.5-16 Not Published R4 Industrial - Front 8.5x14 27X8.50-15 R4 Industrial - Rear 12.4-16 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System L21: Skid-steer couplers for superfast hookups Front Loader (LA525 - 2 Lever Quick Coupler) Loader Model L21 (55 in bucket) LA525 Loader Lift Height L21: 77 in 94.3 in (at pivot pin) Loader Lift Capacity (Full Height) L21: 1,477 lb (at pivot pin) 1,082 lb (at pivot pin) Loader Breakout Force L21: 2,160 lb 2,373 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
