Mahindra 2540 vs Bobcat CT2040 | Side-by-side comparison | ITC Resource Center
Compare Tractors

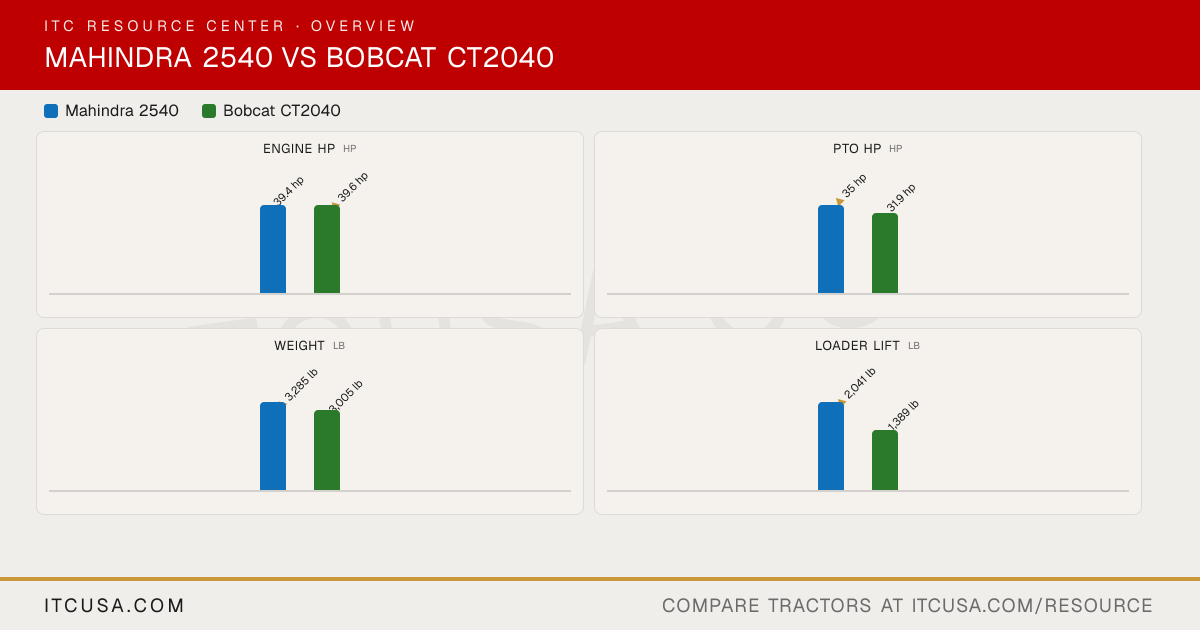

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra2540
BobcatCT2040
Engine Manufacturer
Mahindra
Daedong
Engine Model
Not Published
3H-TH4A
Engine Type
Naturally aspirated direct injection diesel
Diesel
No. of Cylinders
4
3
Displacement
166.7 in³
111.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
39.4 hp
39.6 hp
PTO Power
35 hp
31.9 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Not Published
Not Published
Fuel System
Direct injection
Not Published
Alternator
45 A, 12 V
Not Published
Pump Type
Not Published
Not Published
Implement Flow
8.2 gpm
6.9 gpm
Steering Flow
4.5 gpm
4.5 gpm
Total Hydraulic Flow
12.7 gpm (8.2 + 4.5, computed)
11.4 gpm
Overall Hydraulic Pump Flow
Not Published
11.4 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
None (rear hydraulics optional)
No. of Optional Remote Valves
Not Published
2 pairs
Fuel Tank Capacity
9.0 gal
9.0 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Live
PTO Rear
540 rpm @ 2650 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional: 1988 rpm
Category, 3-Point Hitch
CAT I with check chains
Category I
Hitch Lift Capacity
2,646 lb
Not Published
Hitch Lift Capacity (at 24”)
Not Published
1,631 lb
Lift Control Type
Position control
Hydraulic Position Control System
Transmission Type
Synchro shuttle with partial synchromesh
3-Range HST
No. of Speeds
12F/12R
Infinite, 3 range
Max Travel Speed (Forward)
Not Published
14.0 mph
Max Travel Speed (Reverse)
Not Published
9.7 mph
Clutch
Single plate, dry
Not Published
Differential Lock & Limited Slip Options
Not Published
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering, tilt
Hydrostatic power steering
Brakes
Wet disc
Wet multi-disc
Seat Suspension & Adjustability
Adjustable suspension seat
Adjustable seat (standard)
Front Axle Type
Not Published
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
59.8 in
Industrial tires: 62.4 in
Wheelbase
Not Published
65.7 in
Ground Clearance
Not Published
11.7 in
Min. Turn Radius without Brakes
7.87 ft
96.5 in (with brake applied)
Height to Top of ROPS
94.4 in
92.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Overall Length
119.3 in
120.9 in (with 3-point hitch)
Tractor Weight (Base)
3,285 lb (operating weight)
3,005 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Tire Size & Options
Ag, Industrial (turf N/A)
Turf, Industrial, Agricultural
R1 Agricultural - Front
8.3x16
Not Published
R1 Agricultural - Rear
12.4x24
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
10-16.5
Not Published
R4 Industrial - Rear
43x16-20
Not Published
Quick Attach Loader System
Not Published
Standard quick attach mounting system
Loader Model
2540L
FL8
Loader Lift Height
2540L: 101.9 in
99.6 in (to pivot pin)
Loader Lift Capacity (Full Height)
2540L: 2,041 lb (at pivot pin)
1,389 lb (at pivot pin)
Loader Breakout Force
2540L: 3,430 lb (at pivot pin)
3,285 lb (at pivot pin)
Warranty Length & Coverage
5-year powertrain warranty
Basic 24 months or 1,500 hours, on all components; powertrain 48 months, unlimited hours, for consumer purchasers, or 36 months or 2,000 hours for commercial purchasers
