Keep exploring

Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

Mahindra2660PST

n/a

JohnDeere4520

Comparison loaded for 2 tractors.

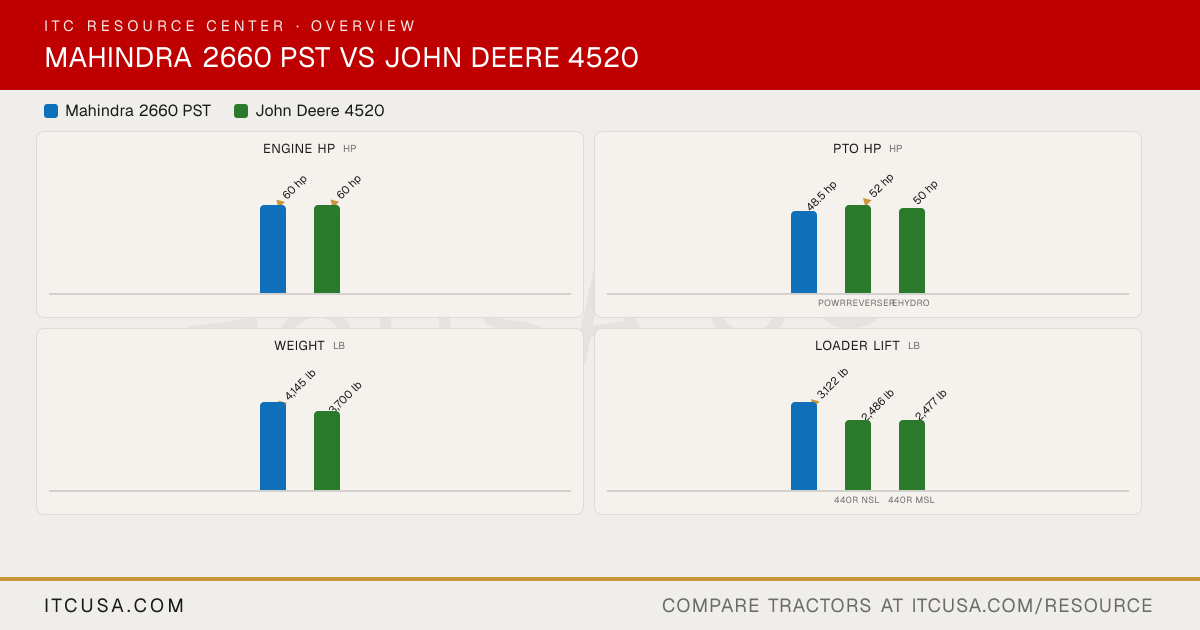

The headline numbers at a glance.

Mahindra 2660 PSTJohn Deere 4520

Engine HPhp

▲60 hp

PTO HPhp

48.5 hp

▲52 hp

50 hp

PowrReversereHydro

Weightlb

▲4,145 lb

3,700 lb

Loader Liftlb

▲3,122 lb

2,486 lb

2,477 lb

440R NSL440R MSL

3-Pt Lift (24 in)lb

▲2,945 lb

2,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra2660 PST	John Deere4520


Engine Manufacturer	Mahindra	John Deere
Engine Model	VNEF	PowerTech 4024T
Engine Type	Turbocharged, direct injection, liquid-cooled diesel	4-cylinder, turbocharged, direct injection diesel
No. of Cylinders	3	4
Displacement	161.7 in³	149 in³
Rated Engine Speed	2300 rpm	2400 rpm
Engine Power (Gross)	60 hp	60 hp
PTO Power	48.5 hp	PowrReverser: 52 hp; eHydro: 50 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dual dry	Dry type with safety element
Fuel System	Direct Injection (mCRD fuel-injected)	Direct injection, mechanical fuel pump
Alternator	90 A, 12 V	70 A

Pump Type	Not Published	Dual tandem gear pump
Implement Flow	11.8 gpm	12 gpm
Steering Flow	4.9 gpm	5.1 gpm
Total Hydraulic Flow	16.7 gpm	17.1 gpm
Overall Hydraulic Pump Flow	16.7 gpm	17.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 Spool	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	16 gal	14.5 gal (open station); 13.8 gal (cab)
Coolant Capacity	9.0 qt	1.6 gal (open station); 2.2 gal (cab)
Crankcase Capacity	7.1 qt	7.9 qt
Transmission / Hydraulic System Capacity	9.2 gal	10.3 gal (PowrReverser); 9.6 gal (eHydro)
Front Axle Fluid Capacity	10.5 qt	1.3 gal

PTO Type	Independent	Independent, wet disk clutch and brake
PTO Rear	540 rpm @ 2300 rpm	540 rpm
Mid-PTO Availability	Not Applicable	Optional, 2100 rpm
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers & Flex Links	Category 1
Hitch Lift Capacity	3,314 lb	3,130 lb
Hitch Lift Capacity (at 24”)	2,945 lb	2,500 lb
Lift Control Type	Position Control	Position control

Transmission Type	Power Shuttle	PowrReverser 12F/12R standard; eHydro optional (4WD)
No. of Speeds	12F / 12R	12 forward, 12 reverse (PowrReverser); infinite forward and reverse, 3 ranges (eHydro)
Max Travel Speed (Forward)	15.7 mph	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Max Travel Speed (Reverse)	13.3 mph	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Clutch	Dry Single Plate	Multiple stage wet disk, 5.1 in (PowrReverser)
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock

Frame Type	Not Published	Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering	Hydraulic, tiltable	Power steering
Brakes	Wet Disc Brake, Mechanical	Wet disk
Seat Suspension & Adjustability	Seat with mechanical suspension, adjustable headrest, folding armrests	Air ride seat optional
Front Axle Type	Not Published	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	Not Published	3,528 lb
Drawbar Capacity	Not Published	1,103 lb

Overall Width	71.1 in	65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase	73.7 in	71.5 in
Ground Clearance	14.5 in	Not Published
Min. Turn Radius without Brakes	145.2 in	Not Published
Height to Top of ROPS	102 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.4 in
Overall Length	138.8 in	128.2 in (with 3-point hitch)

Tractor Weight (Base)	4,145 lb	3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader	5,415 lb (4,145 + 1,270, computed; 702.7 gal loader shipping weight)	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front	9.5X20	8.00-16
R1 Agricultural - Rear	14.9X28	13.6-28
R3 Turf - Front	Not Published	27x10.5-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	10.5/80X18	10.00-16.5
R4 Industrial - Rear	18.4X24	17.5L-24

Quick Attach Loader System	2660L: quick-attach adapter included	Not Published
Loader Model	2660L	440R (NSL and MSL)
Loader Lift Height	2660L: 115.4 in	440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)	2660L: 3,122 lb at pivot pin to full height	440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
Loader Breakout Force	2660L: 5,225 lb	440R NSL: 3,934 lbf; 440R MSL: 3,917 lbf (at pivot point)

Warranty Length & Coverage	Not Published	3-year / 2,000-hour limited warranty (as sold new)
