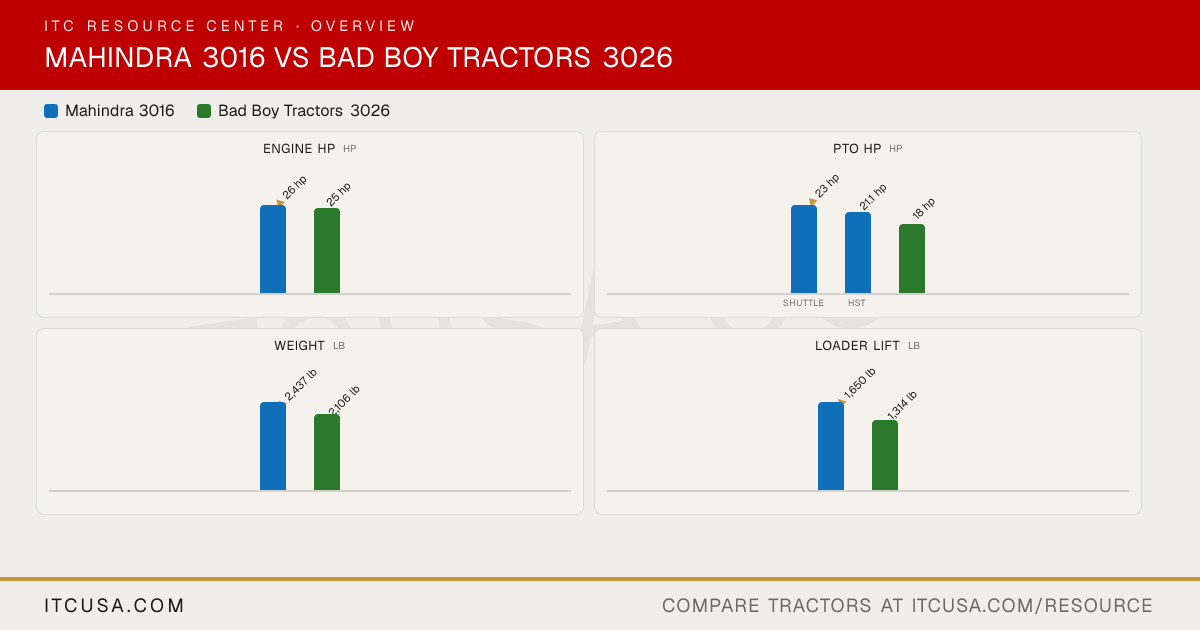

▶ EngineEngine Manufacturer Mitsubishi TYM Engine Model Not Published A1100N2 Engine Type 3-cylinder, four-cycle, valve in cylinder head, cross-flow porting diesel 3 cylinder, water-cooled diesel, natural aspiration, swirl chamber No. of Cylinders 3 3 Displacement 80.43 in³ 71.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 26 hp 25 hp PTO Power Shuttle: 23 hp; HST: 21.1 hp 18 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled, pressurized, thermostat controlled bypass, impeller pump Water-cooled Air Cleaner Dry type with double filter Dry element Fuel System Indirect injection; Bosch M-type ND-PFR (Denso) injection pump, throttle-type injectors Indirect injection (swirl chamber) Alternator 50 A 50 A, 12 V ▶ HydraulicsPump Type Gear type, front mounted, engine driven Gear type pump with primary and secondary pumps Implement Flow 7.8 gpm 4.3 gpm Steering Flow 3.4 gpm 3.1 gpm Total Hydraulic Flow 11.2 gpm (7.8 + 3.4, computed) 7.4 gpm Overall Hydraulic Pump Flow Not Published 7.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity Not Published 6.08 gal Coolant Capacity Not Published 1.21 gal Crankcase Capacity Not Published 0.79 gal Transmission / Hydraulic System Capacity Not Published 2.90 gal Front Axle Fluid Capacity Not Published 0.79 gal ▶ PTO & HitchPTO Type Independent (3016 Gear Drive); Live (3016 Hydrostatic Drive) Live PTO (6 spline shaft) PTO Rear 540 rpm @ 2376 rpm 540 / 960 rpm Mid-PTO Availability Optional; 2000 rpm @ 2525 rpm Optional, 2,500 rpm Category, 3-Point Hitch CAT I Category I Hitch Lift Capacity Not Published 1,433 lb Hitch Lift Capacity (at 24”) 1,720 lb 974 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Synchro shuttle, constant-mesh main, two ranges (3016 Gear Drive); hydrostatic, three ranges (3016 Hydrostatic Drive) Hydrostatic (HST) No. of Speeds 8F/8R (3016 Gear Drive); infinite, 3 ranges (3016 Hydrostatic Drive) 3 range (L/M/H) Max Travel Speed (Forward) 11.9 mph (3016 Gear Drive); 13.8 mph (3016 Hydrostatic Drive) 14.8 mph Max Travel Speed (Reverse) 9.9 mph (3016 Gear Drive); 6.9 mph (3016 Hydrostatic Drive) 14.8 mph Clutch Dry single disc, diaphragm type, 8.46 in Dry, single plate Differential Lock & Limited Slip Options Mechanical differential lock, pedal actuated Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Steel frame with cast iron axles Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc, mechanical Wet disc Seat Suspension & Adjustability Not Published Adjustable seat, flips up and back for rear backhoe operation Front Axle Type MFD, spiral bevel gear type differential with bevel gear reductions Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity 969 lbf Not Published ▶ Dimensions & ManeuverabilityOverall Width 63 in 53.8 in Wheelbase 67.3 in 65.7 in Ground Clearance 11.4 in 16.4 in Min. Turn Radius without Brakes 94.5 in (with brake applied) Not Published Height to Top of ROPS 81.5 in 91.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 121.3 in (to end of lower link) 110 in ▶ WeightTractor Weight (Base) 2,437 lb (3016 Gear Drive); 2,459 lb (3016 Hydrostatic Drive) 2,106 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R4 Industrial (25x8.50-14 front / 14x17.5 rear) R1 Agricultural - Front 7x16 7-16 6PR R1 Agricultural - Rear 11.2x24 11.2-20 R3 Turf - Front 25x8.5-14 Not Published R3 Turf - Rear 13.6x16 Not Published R4 Industrial - Front 27x8.50-15 25x8.50-14 R4 Industrial - Rear 15x19.5 14x17.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick attach front loader Loader Model ML115 BBL300 Loader Lift Height ML115: 99 in 86 in Loader Lift Capacity (Full Height) ML115: 1,650 lb (at pivot pin) 1,314 lb (at pivot pin) Loader Breakout Force ML115: 2,350 lb (at pivot pin) 1,960 lbf ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
