Mahindra 3540 vs Case IH Farmall 40A | Side-by-side comparison | ITC Resource Center
Compare Tractors

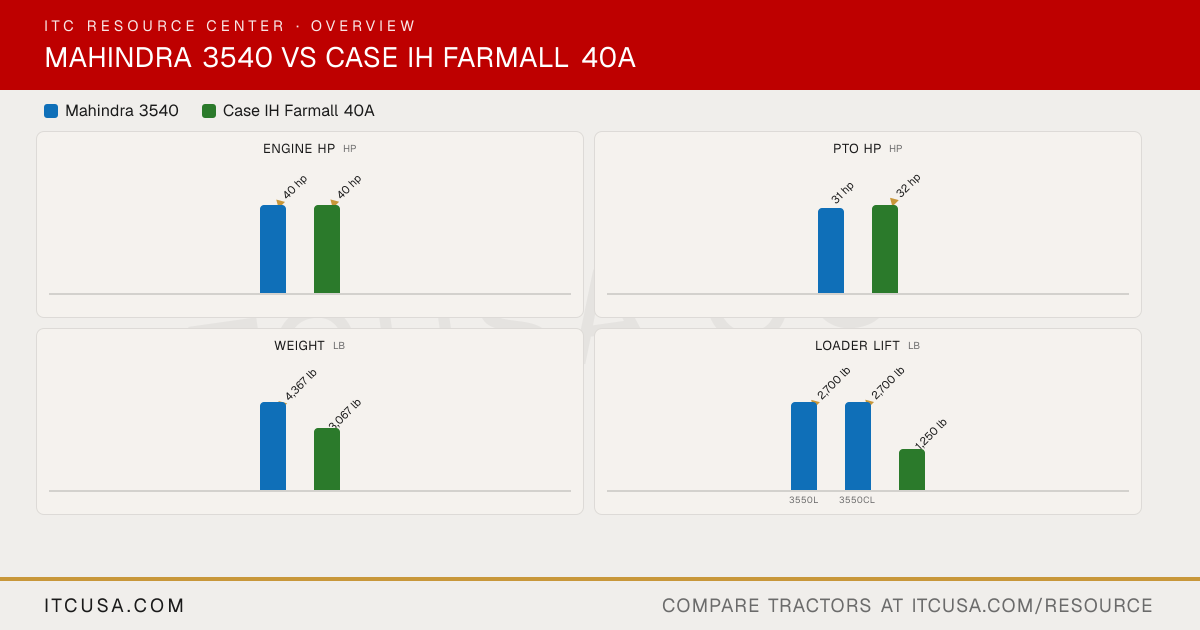

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra3540
Case IHFarmall 40A
Engine Manufacturer
Mahindra
LS Mtron
Engine Model
Not Published
Not Published
Engine Type
Naturally aspirated direct injection diesel
3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders
4
3
Displacement
166.7 in³
114.7 in³
Rated Engine Speed
2800 rpm
2600 rpm
Engine Power (Gross)
40 hp
40 hp
PTO Power
31 hp
34.8 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Not Published
Air Cleaner
Not Published
Not Published
Fuel System
Direct injection
Not Published
Alternator
45 A, 12 V
85 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
11 gpm
8.4 gpm
Steering Flow
5 gpm
Not Published
Total Hydraulic Flow
16 gpm (11 + 5, computed)
13.3 gpm
Overall Hydraulic Pump Flow
Not Published
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
One standard, two optional
0
No. of Optional Remote Valves
Not Published
3
Fuel Tank Capacity
11.3 gal (3540 PST); 11.3 gal (3540 HST); 14.5 gal (3540 PST Cab); 14.5 gal (3540 HST Cab)
12.6 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Independent, electro-hydraulic engagement
PTO Rear
540 rpm @ 2404 rpm
540 rpm
Mid-PTO Availability
Not Published
Not available
Category, 3-Point Hitch
CAT 1/2 with telescopic stabilizers & flex links
Category I
Hitch Lift Capacity
3,090 lb
Not Published
Hitch Lift Capacity (at 24”)
Not Published
1,596 lb
Lift Control Type
Position and draft control
Mechanical Draft Control (MDC)
Transmission Type
Power shuttle with full synchro mesh (3540 PST); HST, 3 ranges (3540 HST); Power shuttle with full synchro mesh (3540 PST Cab); HST, 3 ranges (3540 HST Cab)
