Mahindra 3540 vs Mahindra 1640 Shuttle | Side-by-side comparison | ITC Resource Center
Compare Tractors

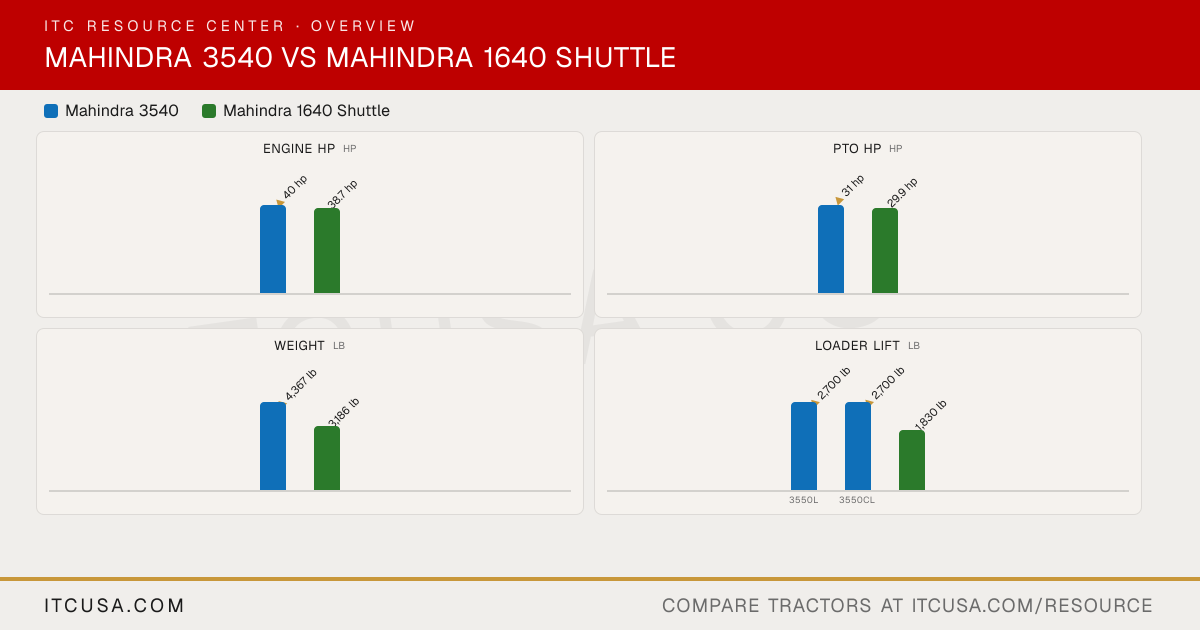

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra3540
Mahindra1640 Shuttle
Engine Manufacturer
Mahindra
Mahindra
Engine Model
Not Published
CE-38
Engine Type
Naturally aspirated direct injection diesel
Four-stroke, naturally aspirated, direct injection, water cooled diesel
No. of Cylinders
4
4
Displacement
166.64 in³
166.7 in³
Rated Engine Speed
2800 rpm
2400 rpm
Engine Power (Gross)
40 hp
38.7 hp
PTO Power
31 hp
29.9 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Not Published
Not Published
Fuel System
Direct injection
Direct injection
Alternator
45 A, 12 V
90 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
11 gpm
7.7 gpm
Steering Flow
5 gpm
3.4 gpm
Total Hydraulic Flow
16 gpm (11 + 5, computed)
11.1 gpm
Overall Hydraulic Pump Flow
Not Published
11.1 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
Not Published
1
Fuel Tank Capacity
11.3 gal (3540 PST); 11.3 gal (3540 HST); 14.5 gal (3540 PST Cab); 14.5 gal (3540 HST Cab)
7.7 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Independent
PTO Rear
540 rpm @ 2404 rpm
540 rpm @ 2376 rpm
Mid-PTO Availability
Not Published
Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch
CAT I with telescopic lower links
CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity
3090 lb
2646 lb
Hitch Lift Capacity (at 24”)
Not Published
1720 lb
Lift Control Type
Position and draft control
Position control
Transmission Type
Power shuttle with full synchro mesh (3540 PST); HST, 3 ranges (3540 HST); Power shuttle with full synchro mesh (3540 PST Cab); HST, 3 ranges (3540 HST Cab)
Constant mesh on gearshift and synchromesh on F-R shuttle
