Mahindra 3550 vs Kubota L4760 | Side-by-side comparison | ITC Resource Center
Compare Tractors

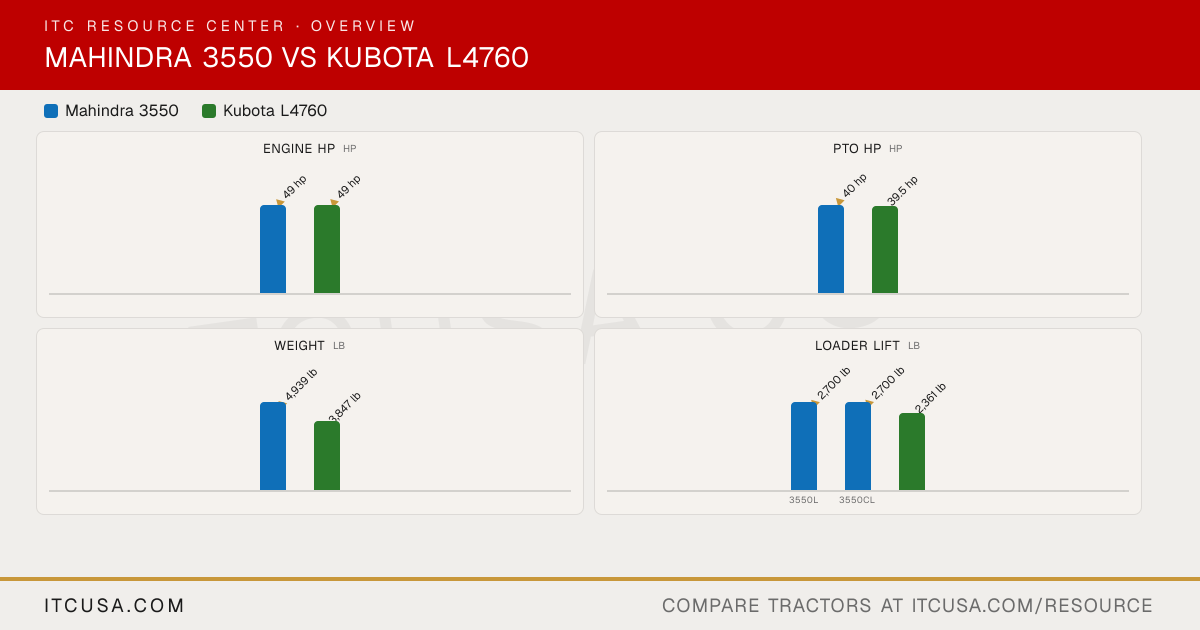

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra3550
KubotaL4760
Engine Manufacturer
Mahindra
Kubota
Engine Model
Not Published
V2403-CR-E4-GL5
Engine Type
Naturally aspirated direct injection diesel
Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders
4
4
Displacement
166.64 in³
148.5 in³
Rated Engine Speed
2800 rpm
2600 rpm
Engine Power (Gross)
49 hp
49 hp
PTO Power
40 hp
39.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry paper, dual element
Fuel System
Direct injection
Electronic CRS (Common Rail System)
Alternator
45 A, 12 V
40 A, 12 V
Pump Type
Not Published
Tandem pump - gear type
Implement Flow
11 gpm
9.4 gpm
Steering Flow
5 gpm
4.7 gpm
Total Hydraulic Flow
16 gpm (11 + 5, computed)
14.1 gpm
Overall Hydraulic Pump Flow
Not Published
14.1 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
None standard (up to 3 optional)
No. of Optional Remote Valves
Not Published
Optional, up to 3 (double-acting valve or float detent valve options, any position)
Fuel Tank Capacity
11.3 gal (3550 PST); 11.3 gal (3550 HST); 14.5 gal (3550 PST Cab); 14.5 gal (3550 HST Cab)
13.5 gal
Coolant Capacity
Not Published
8.7 qt
Crankcase Capacity
Not Published
8.7 qt
Transmission / Hydraulic System Capacity
Not Published
11.4 gal
Front Axle Fluid Capacity
Not Published
8.9 qt
PTO Type
Independent
Live independent (hydraulic clutch)
PTO Rear
540 rpm @ 2404 rpm
540 rpm @ 2475 engine rpm
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
CAT I with telescopic lower links
SAE Category I
Hitch Lift Capacity
3090 lb
3,858 lb
Hitch Lift Capacity (at 24”)
Not Published
2,756 lb
Lift Control Type
Position and draft control
Position control
Transmission Type
Power shuttle with full synchro mesh (3550 PST); HST, 3 ranges (3550 HST); Power shuttle with full synchro mesh (3550 PST Cab); HST, 3 ranges (3550 HST Cab)
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
