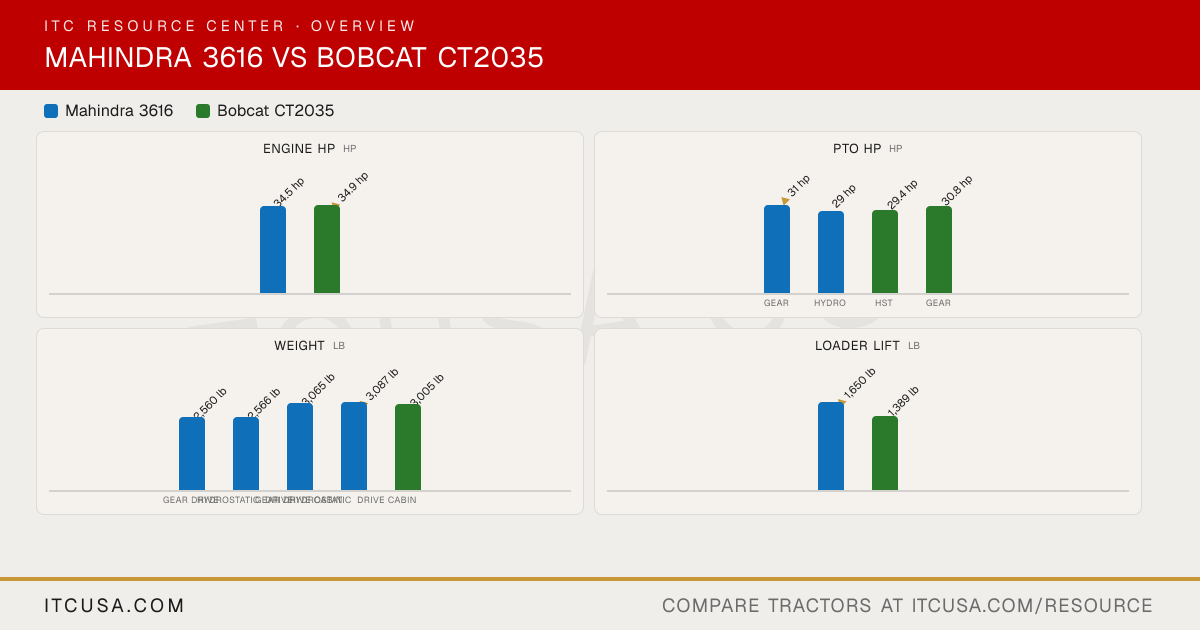

▶ EngineEngine Manufacturer Mitsubishi Daedong Engine Model Not Published 3H-TH4A Engine Type Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting Diesel No. of Cylinders 3 3 Displacement 101.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34.5 hp 34.9 hp PTO Power Gear: 31 hp; Hydro: 29 hp HST: 29.4 hp; MST (gear): 30.8 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Type Air Cleaning System with Double Filter Dry type, replaceable Fuel System 3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR Common rail direct injection (CRDI) Alternator 55 A, 12 V 75 A, 12 V ▶ HydraulicsPump Type Front Mounted, Engine Driven, Pressure Loading Gear Type Not Published Implement Flow 7.7 gpm at 2600 engine rpm 6.9 gpm Steering Flow 3.4 gpm at 2600 engine rpm 4.5 gpm Total Hydraulic Flow Not Published 11.4 gpm Overall Hydraulic Pump Flow Not Published 11.4 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None (rear hydraulics optional) No. of Optional Remote Valves 1 (optional) 2 pairs ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 9.0 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published 7.8 qt Transmission / Hydraulic System Capacity Not Published 5.8 gal Front Axle Fluid Capacity Not Published 6.3 qt ▶ PTO & HitchPTO Type Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch) Live PTO Rear 540 rpm @ 2376 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm @ 2525 rpm Optional: 1988 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2646 lb 2271 lb Hitch Lift Capacity (at 24”) 1720 lb 1631 lb Lift Control Type Position control Hydraulic Position Control System ▶ Transmission & DrivetrainTransmission Type Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears 3-Range HST No. of Speeds Not Published Infinite, 3 range Max Travel Speed (Forward) Not Published 14.0 mph Max Travel Speed (Reverse) Not Published 9.7 mph Clutch Dry, Single Disc, Diaphragm Type, 8.46 in Not Published Differential Lock & Limited Slip Options Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet Disk Plate Type Wet multi-disc Seat Suspension & Adjustability Not Published Adjustable seat (standard) Front Axle Type Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity 969 lbf 1433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 121.3 in 120.9 in Overall Width 3616 (43x16.00-20): 62 in 62.4 in Wheelbase 68.9 in 65.7 in Ground Clearance 3616 (28x8.50-15): 12.5 in 11.7 in Min. Turn Radius without Brakes 3616: 98.4 in (with brake assistance) (with brake applied) 96.5 in (with brake applied) Height to Top of ROPS 3616 (43x16.00-20): 84.4 in 92.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 3616 CABIN (43x16.00-20): 83 in Not Published ▶ WeightTractor Weight (Base) Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb 3005 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 7x16 7-16 R1 Agricultural - Rear 11.2x24 11.4-24 R3 Turf - Front 27x10.5-15 27x8.5-15 R3 Turf - Rear 41x14-20 41x14-20 R4 Industrial - Front 28x8.5-15 25x8.5-14 R4 Industrial - Rear 43x16-20 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Standard quick attach mounting system Loader Model ML115 FL8 Loader Lift Height ML115: 99 in 99.6 in Loader Lift Capacity (Full Height) ML115: 1,650 lb 1389 lb Loader Breakout Force ML115: 2,650 lb 3285 lb ▶ WarrantyWarranty Length & Coverage Not Published 24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers ▶ ITC Company AccessoriesAccessories that fit None tagged yet
