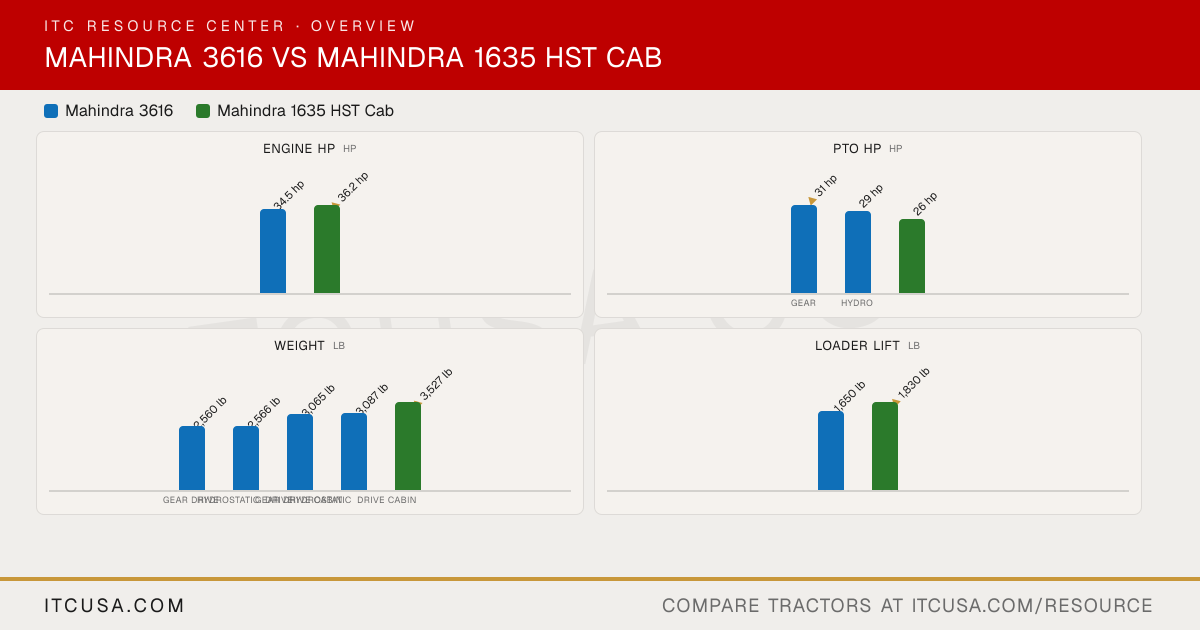

▶ EngineEngine Manufacturer Mitsubishi Mahindra Engine Model Not Published CE-35 Engine Type Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting Four-stroke, naturally aspirated, direct injection, water cooled diesel No. of Cylinders 3 3 Displacement 101.4 in³ 125.0 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 34.5 hp 36.2 hp PTO Power Gear: 31 hp; Hydro: 29 hp 26 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Type Air Cleaning System with Double Filter Not Published Fuel System 3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR Direct injection Alternator 55 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Front Mounted, Engine Driven, Pressure Loading Gear Type Not Published Implement Flow 7.7 gpm at 2600 engine rpm 7.5 gpm Steering Flow 3.4 gpm at 2600 engine rpm 3.3 gpm Total Hydraulic Flow Not Published 10.8 gpm Overall Hydraulic Pump Flow Not Published 10.8 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 (optional) 1 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 7.7 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch) Live with o/r clutch PTO Rear 540 rpm @ 2376 rpm 540 rpm @ 2376 rpm Mid-PTO Availability Optional, 2000 rpm @ 2525 rpm Optional; 2000 rpm @ 2526 rpm Category, 3-Point Hitch Category I CAT I with Telescoping Stabilizers & Flex Links Hitch Lift Capacity 2646 lb 2646 lb Hitch Lift Capacity (at 24”) 1720 lb 1720 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears HST, 3 ranges No. of Speeds Not Published Infinite / 3 Ranges Max Travel Speed (Forward) Not Published 13.3 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dry, Single Disc, Diaphragm Type, 8.46 in Dry-Single Differential Lock & Limited Slip Options Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Power Steering Brakes Wet Disk Plate Type Wet Disc Seat Suspension & Adjustability Not Published mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt Front Axle Type Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 969 lbf Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 121.3 in 123.8 in Overall Width 3616 (43x16.00-20): 62 in 64 in Wheelbase 68.9 in 73 in Ground Clearance 3616 (28x8.50-15): 12.5 in 12.2 in Min. Turn Radius without Brakes 3616: 98.4 in (with brake assistance) (with brake applied) 8.5 ft (with brake applied) Height to Top of ROPS 3616 (43x16.00-20): 84.4 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 3616 CABIN (43x16.00-20): 83 in 88.0 in ▶ WeightTractor Weight (Base) Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb 3,527 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 4150 lb ▶ Tire OptionsTire Size & Options Not Published R1 Agriculture, R3 Turf, R4 Industrial R1 Agricultural - Front 7x16 7 x 16 R1 Agricultural - Rear 11.2x24 11.2 x 24 R3 Turf - Front 27x10.5-15 25 x 8.5-14 R3 Turf - Rear 41x14-20 13.6 x 16 R4 Industrial - Front 28x8.5-15 27 x 8.5-15 R4 Industrial - Rear 43x16-20 15 x 19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Front loader with skid-steer couplers for superfast hookups Loader Model ML115 1635L (64 in bucket) Loader Lift Height ML115: 99 in 1635L: 92 in Loader Lift Capacity (Full Height) ML115: 1,650 lb 1635L: 1,830 lb Loader Breakout Force ML115: 2,650 lb 1635L: 2,777 lb ▶ WarrantyWarranty Length & Coverage Not Published 7-year/3,000-hour, $0 deductible limited powertrain warranty
