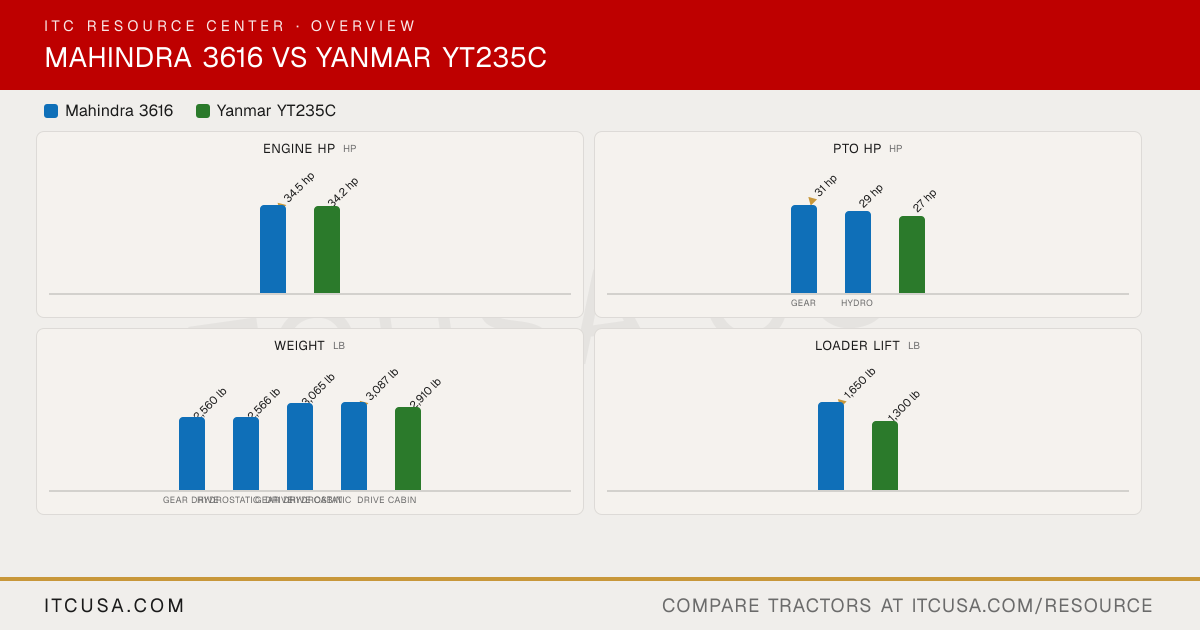

▶ EngineEngine Manufacturer Mitsubishi YANMAR Engine Model Not Published 3TNV88C Engine Type Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 101.4 in³ 100.1 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 34.5 hp 34.2 hp PTO Power Gear: 31 hp; Hydro: 29 hp 27 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Dry Type Air Cleaning System with Double Filter Dual stage cyclonic (resin 5.5 in.) Fuel System 3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR Common rail direct injection Alternator 55 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Front Mounted, Engine Driven, Pressure Loading Gear Type Not Published Implement Flow 7.7 gpm at 2600 engine rpm 7.1 gpm Steering Flow 3.4 gpm at 2600 engine rpm 4.1 gpm Total Hydraulic Flow Not Published 11.2 gpm (7.1 + 4.1, computed) Overall Hydraulic Pump Flow Not Published 11.2 gpm (7.1 + 4.1, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 (optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 7.4 gal Coolant Capacity Not Published 5.3 qt Crankcase Capacity Not Published 4.6 qt Transmission / Hydraulic System Capacity Not Published 8.2 gal Front Axle Fluid Capacity Not Published 2.4 gal ▶ PTO & HitchPTO Type Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch) Independent (electro-hydraulic) PTO Rear 540 rpm @ 2376 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm @ 2525 rpm Standard Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2646 lb 2,205 lb Hitch Lift Capacity (at 24”) 1720 lb 1,764 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears Hydrostatic (Dual Touch Pedal) No. of Speeds Not Published Unlimited (hydrostatic); 3 ranges Max Travel Speed (Forward) Not Published 11.7 mph (with R4 tires) Max Travel Speed (Reverse) Not Published 8.2 mph (with R4 tires) Clutch Dry, Single Disc, Diaphragm Type, 8.46 in N/A (hydrostatic) Differential Lock & Limited Slip Options Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step) Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Fully hydraulic power steering Brakes Wet Disk Plate Type Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions 2WD/4WD selectable engagement Front Axle Rating Not Published Not Published Drawbar Capacity 969 lbf Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 121.3 in 116.9 in Overall Width 3616 (43x16.00-20): 62 in 58.3 in (with R4 tires) Wheelbase 68.9 in 65 in Ground Clearance 3616 (28x8.50-15): 12.5 in 10.8 in (with R4 tires) Min. Turn Radius without Brakes 3616: 98.4 in (with brake assistance) (with brake applied) Not Published Height to Top of ROPS 3616 (43x16.00-20): 84.4 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 3616 CABIN (43x16.00-20): 83 in 83.6 in (with R4 tires) ▶ WeightTractor Weight (Base) Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb 2,910 lb (cab, R4 tires, full fluid) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 3,823 lb ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front 7x16 6-14 R1 Agricultural - Rear 11.2x24 9.5-22 R3 Turf - Front 27x10.5-15 25x8.5-14 R3 Turf - Rear 41x14-20 13.6x16 R4 Industrial - Front 28x8.5-15 25x8.5-14 R4 Industrial - Rear 43x16-20 15-19.6 ▶ Loader & AttachmentsQuick Attach Loader System Not Published YL310: Skid steer style bucket attachment Loader Model ML115 YL310 Loader Lift Height ML115: 99 in YL310: 84 in (to bucket pivot pin) Loader Lift Capacity (Full Height) ML115: 1,650 lb YL310: 1,300 lb at pivot pins Loader Breakout Force ML115: 2,650 lb YL310: 2,105 lb at pivot pins ▶ WarrantyWarranty Length & Coverage Not Published Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
