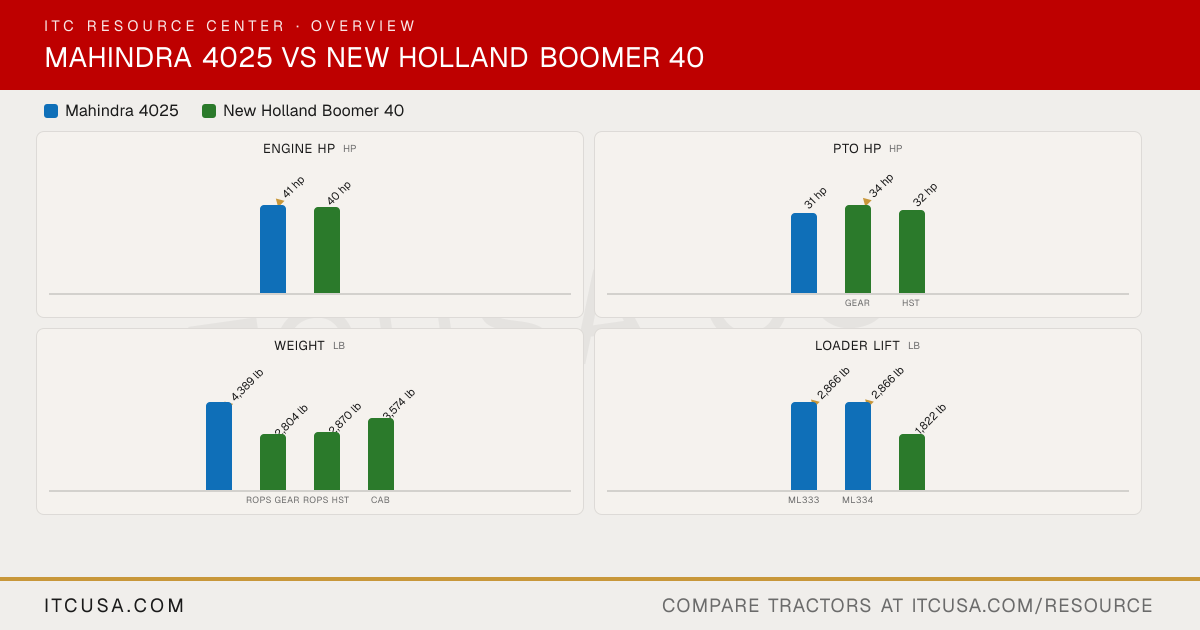

▶ EngineEngine Manufacturer Mahindra LS Mtron Engine Model MDI 2700R2 L3CRV-T4 Engine Type Four stroke, direct injection, water-cooled diesel 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 4 3 Displacement 167 in³ 114.7 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 41 hp 40 hp PTO Power 31 hp Gear: 34 hp; HST: 32 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid cooled Air Cleaner Not Published Replaceable primary and inner elements Fuel System Direct injection Electronically controlled common rail direct injection Alternator 36 A, 12 V ROPS: 70 A, 12 V; Cab: 85 A, 12 V ▶ HydraulicsPump Type Not Published Gear Implement Flow 8.29 gpm 8.2 gpm Steering Flow 5 gpm Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow 13.29 gpm (8.29 + 5, computed) Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow Not Published Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves 1 Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity 14.55 gal ROPS: 10.5 gal; Cab: 12.4 gal Coolant Capacity Not Published 7.5 qt Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 8.5 gal Front Axle Fluid Capacity Not Published 6.87 qt ▶ PTO & HitchPTO Type Live Independent, electro-hydraulic engagement PTO Rear 540 rpm @ 2058 rpm 540 rpm Mid-PTO Availability Not Published Standard (2000 rpm) Category, 3-Point Hitch CAT I and II adjustable, with telescopic stabilizers Category I Hitch Lift Capacity 3527 lb (4025 2WD); 3525 lb (4025 4WD) 1,808 lb Hitch Lift Capacity (at 24”) Not Published 1,345 lb Lift Control Type Position and draft control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Sliding mesh Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds 8F/2R Gear: 12F/12R; HST: 3-range Max Travel Speed (Forward) 14.3 mph (4025 2WD); 17.6 mph (4025 4WD) Gear: 14.2 mph; HST: 14.8 mph Max Travel Speed (Reverse) 6.0 mph (4025 2WD); 7.5 mph (4025 4WD) Gear: 13.63 mph; HST: 13.60 mph Clutch Dual (2-stage) Gear: dry single disc (9.4 in); HST: n/a Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Fully enclosed dry disc Wet multi-disc Seat Suspension & Adjustability Not Published ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Front Axle Type Not Published Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 115.3 in (4025 2WD); 129 in (4025 4WD) 119 in Overall Width 69.4 in (4025 2WD); 82 in (4025 4WD) 66.4 in Wheelbase Not Published 66 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 9.6 ft (4025 2WD); 10.5 ft (4025 4WD) 9.2 ft (with brake applied) Height to Top of ROPS 88.0 in (4025 2WD); 93.7 in (4025 4WD) 92.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 90 in ▶ WeightTractor Weight (Base) 4389 lb (4025 2WD); 4950 lb (4025 4WD) ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag (4025 2WD); Ag, Industrial (4025 4WD) R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 6x16 (4025 2WD); 9.5x16 (4025 4WD) 7-14 R1 Agricultural - Rear 12.4x28 11.2-24 R3 Turf - Front Not Published 25x8.50-14 R3 Turf - Rear Not Published 41x14.00-20 R4 Industrial - Front 12x16.5 (4025 4WD) 25x8.50-14 R4 Industrial - Rear 16.9x24 (4025 4WD) 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published New Holland Quick Mount loader; optional skid steer quick attach plates Loader Model ML333 (4025 2WD); ML334 (4025 4WD) 250TLA Loader Lift Height ML333: 116.6 in; ML334: 116.6 in 250TLA: 104 in Loader Lift Capacity (Full Height) ML333: 2,866 lb; ML334: 2,866 lb 250TLA: 1,822 lb Loader Breakout Force ML333: 4,978 lb; ML334: 4,978 lb 250TLA: 3,257 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)
