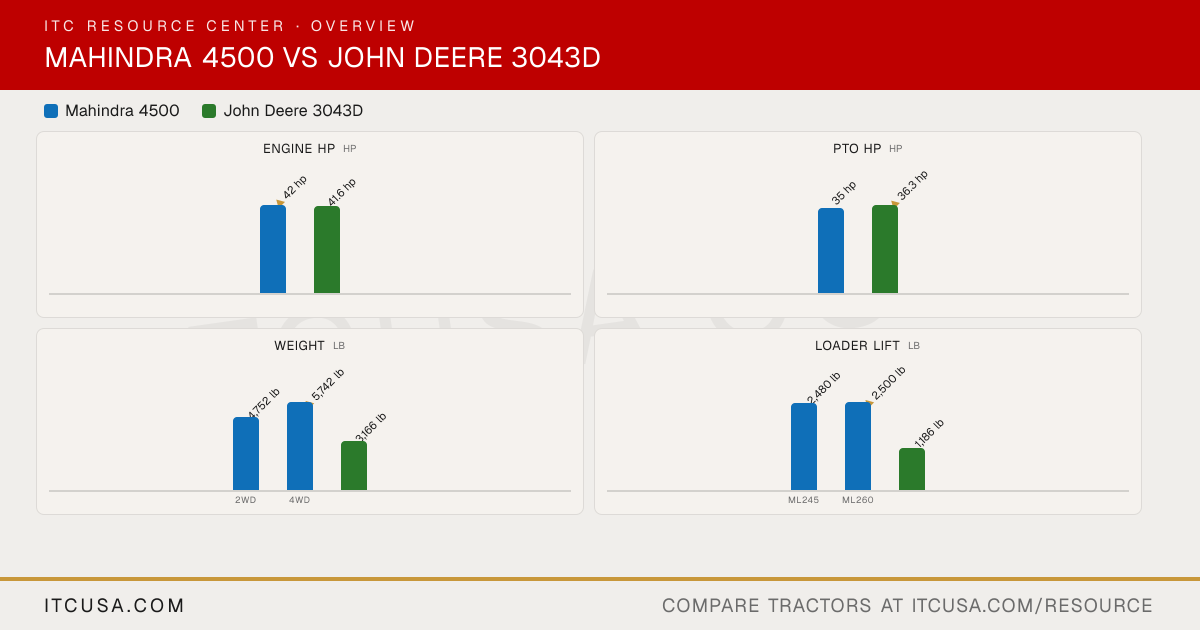

▶ EngineEngine Manufacturer Mahindra Yanmar Engine Model NE342 3TNV86CT-KJPT Engine Type Not Published 4-cycle, inline, water-cooled diesel, turbocharged No. of Cylinders 3 3 Displacement 146 in³ 100.1 in³ Rated Engine Speed 2100 rpm 2800 rpm Engine Power (Gross) 42 hp 41.6 hp PTO Power 35 hp 36.3 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Not Published Dual element Fuel System Direct injection Direct injection Alternator Not Published 55 A, 12 V ▶ HydraulicsPump Type Not Published Two single-section external gear pumps, one each side of engine timing-gear cover Implement Flow 11 gpm 5.0 gpm Steering Flow Not Published 3.6 gpm Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 0 No. of Optional Remote Valves Not Published Up to 2 (optional) ▶ Fluid CapacityFuel Tank Capacity Not Published 10.0 gal Coolant Capacity Not Published 1.3 gal Crankcase Capacity Not Published 1.1 gal Transmission / Hydraulic System Capacity Not Published 9.2 gal Front Axle Fluid Capacity Not Published 1.0 gal ▶ PTO & HitchPTO Type 2WD: Continuous; 4WD: Independent Transmission PTO Rear 540/1000 rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Rear Type II/I Category I Hitch Lift Capacity 3968 lb 2081.2 lb Hitch Lift Capacity (at 24”) Not Published 2081.2 lb Lift Control Type Position and draft control Position control ▶ Transmission & DrivetrainTransmission Type 2WD: constant mesh; 4WD: synchromesh shuttle 8F/8R synchromesh shuttle shift gear transmission No. of Speeds 2WD: 8F/2R; 4WD: 8F/8R 8F/8R Max Travel Speed (Forward) Not Published 12.9 mph Max Travel Speed (Reverse) Not Published 13.5 mph Clutch Not Published Single dry traction (mechanical) Differential Lock & Limited Slip Options Not Published Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS Not Published Steering Power steering Power steering Brakes 2WD: dry disc; 4WD: wet disc Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published 4WD Front Axle Rating Not Published 1940 lb Drawbar Capacity Not Published 1102 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.4 in 111.2 in Overall Width 67.3 in 57.3 in Wheelbase Not Published 62.6 in Ground Clearance Not Published 13.0 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brakes) (with brake applied) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2WD: 4752 lb; 4WD: 5742 lb 3166 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 2WD: 6-16; 4WD: 9.5-20 7-14 R1 Agricultural - Rear 2WD: 13.6-28; 4WD: 14.9-26 11.2-24 R3 Turf - Front Not Published 27X8.50-15 R3 Turf - Rear Not Published 41X14-20 R4 Industrial - Front Not Published 25X8.50-14 R4 Industrial - Rear Not Published 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick-change attachment carrier Loader Model 4WD: ML245; 2WD: ML260 D160 Loader Lift Height ML245: 117.4 in; ML260: 107.5 in 84.0 in Loader Lift Capacity (Full Height) ML245: 2480 lb; ML260: 2500 lb 1186 lb Loader Breakout Force ML245: 4400 lb; ML260: 5000 lb 1704 lb ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
