Mahindra 4500 vs Kubota L4060 | Side-by-side comparison | ITC Resource Center
Compare Tractors

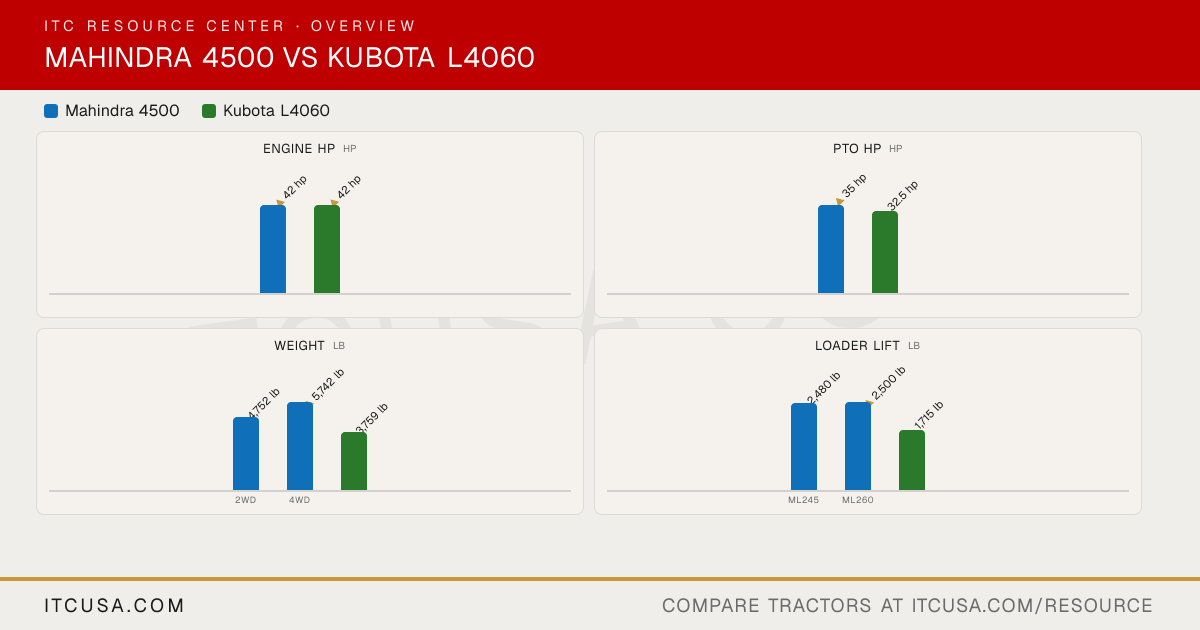

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra4500
KubotaL4060
Engine Manufacturer
Mahindra
Kubota
Engine Model
NE342
V2403-CR-E4-GL2
Engine Type
Not Published
Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders
3
4
Displacement
146 in³
148.5 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
42 hp
42 hp
PTO Power
35 hp
32.5 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry paper, dual element
Fuel System
Direct injection
Electronic CRS (Common Rail System)
Alternator
Not Published
40 A, 12 V
Pump Type
Not Published
Tandem pump - gear type
Implement Flow
11 gpm
9.4 gpm
Steering Flow
Not Published
4.7 gpm
Total Hydraulic Flow
Not Published
14.1 gpm
Overall Hydraulic Pump Flow
Not Published
14.1 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
None standard (up to 3 optional)
No. of Optional Remote Valves
Not Published
Optional, up to 3 (double-acting valve or float detent valve options, any position)
Fuel Tank Capacity
Not Published
13.5 gal
Coolant Capacity
Not Published
7.9 qt
Crankcase Capacity
Not Published
8.7 qt
Transmission / Hydraulic System Capacity
Not Published
11.4 gal
Front Axle Fluid Capacity
Not Published
6.9 qt
PTO Type
2WD: Continuous; 4WD: Independent
Live independent (hydraulic clutch)
PTO Rear
540/1000 rpm
540 rpm @ 2476 engine rpm
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
Rear Type II/I
SAE Category I
Hitch Lift Capacity
3968 lb
3,858 lb
Hitch Lift Capacity (at 24”)
Not Published
2,756 lb
Lift Control Type
Position and draft control
Position control
Transmission Type
2WD: constant mesh; 4WD: synchromesh shuttle
Hydrostatic
No. of Speeds
2WD: 8F/2R; 4WD: 8F/8R
3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)
Not Published
16.8 mph
Max Travel Speed (Reverse)
Not Published
15.1 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Rear differential lock, standard
Frame Type
Two-post folding ROPS
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
2WD: dry disc; 4WD: wet disc
Wet disc type, mechanically activated
Seat Suspension & Adjustability
Not Published
Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type
Not Published
4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1,433 lb
Overall Length with 3-Point Hitch
145.4 in
129.5 in
Overall Width
67.3 in
66.5 in
Wheelbase
Not Published
74.6 in
Ground Clearance
Not Published
14.2 in
Min. Turn Radius without Brakes
Not Published
8.9 ft (with brake applied)
Height to Top of ROPS
Not Published
97.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Tractor Weight (Base)
2WD: 4752 lb; 4WD: 5742 lb
3759 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
2WD: 6-16; 4WD: 9.5-20
8.3-16
R1 Agricultural - Rear
2WD: 13.6-28; 4WD: 14.9-26
14.9-24
R3 Turf - Front
Not Published
27X10.50LL-15
R3 Turf - Rear
Not Published
41X18LL-16.1
R4 Industrial - Front
Not Published
10-16.5
R4 Industrial - Rear
Not Published
17.5L-24
Quick Attach Loader System
Not Published
Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model
4WD: ML245; 2WD: ML260
LA805
Loader Lift Height
ML245: 117.4 in; ML260: 107.5 in
104.7 in
Loader Lift Capacity (Full Height)
ML245: 2480 lb; ML260: 2500 lb
1715 lb
Loader Breakout Force
ML245: 4400 lb; ML260: 5000 lb
2549 lb (19.7 in forward of pivot pin)
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
