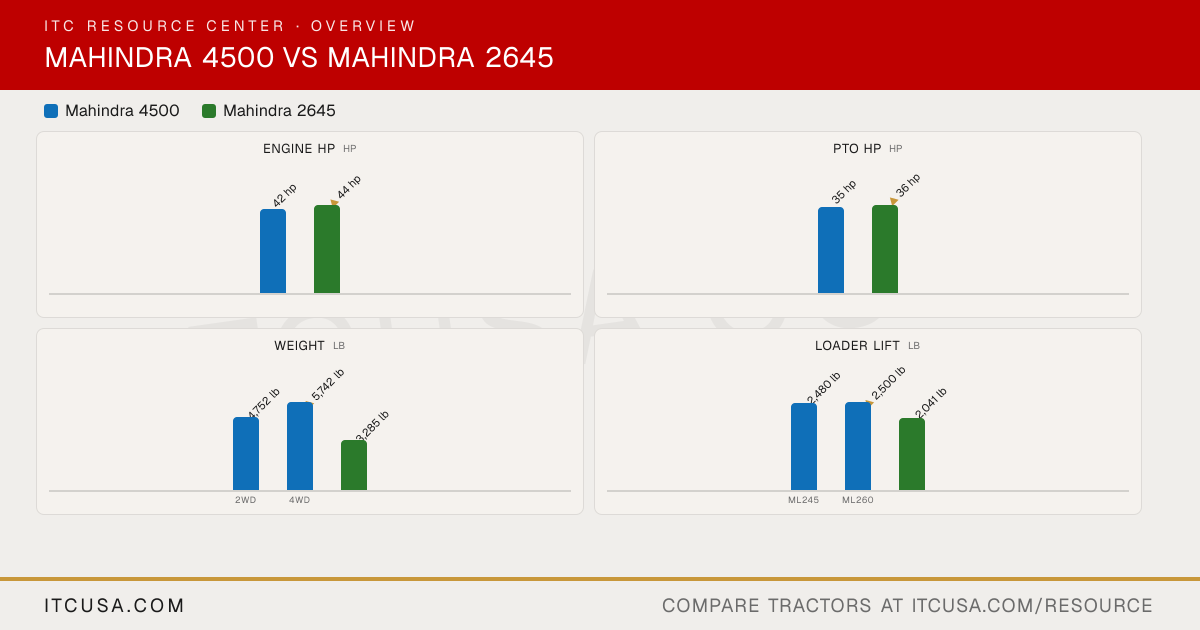

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model NE342 CE-45 Engine Type Not Published Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine No. of Cylinders 3 4 Displacement 146 in³ 166.7 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 42 hp 44 hp PTO Power 35 hp 36 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry dual element Fuel System Direct injection Direct Injection (mCRD fuel-injected) Alternator Not Published 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11 gpm 8.2 gpm Steering Flow Not Published 4.1 gpm Total Hydraulic Flow Not Published 12.7 gpm Overall Hydraulic Pump Flow Not Published 12.7 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves Not Published 1 (optional) ▶ Fluid CapacityFuel Tank Capacity Not Published 9 gal Coolant Capacity Not Published 1.85 gal Crankcase Capacity Not Published 1.98 gal Transmission / Hydraulic System Capacity Not Published 9.25 gal Front Axle Fluid Capacity Not Published 2.17 gal ▶ PTO & HitchPTO Type 2WD: Continuous; 4WD: Independent Independent PTO Rear 540/1000 rpm 540 rpm @ 2650 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Rear Type II/I CAT I Hitch Lift Capacity 3968 lb 2646 lb Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Position Control ▶ Transmission & DrivetrainTransmission Type 2WD: constant mesh; 4WD: synchromesh shuttle Sync, shuttle with part synchromesh No. of Speeds 2WD: 8F/2R; 4WD: 8F/8R 12F / 12R Max Travel Speed (Forward) Not Published 13 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Dry single plate Differential Lock & Limited Slip Options Not Published Bevel gears with diff-lock ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS Not Published Steering Power steering Power steering Brakes 2WD: dry disc; 4WD: wet disc Wet Disc Brake, Mechanical Seat Suspension & Adjustability Not Published mComfort seat (mechanical suspension; adjustable headrest; foldable armrests) Front Axle Type Not Published Center pin Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.4 in 119.3 in Overall Width 67.3 in 63.2 in Wheelbase Not Published 67.7 in Ground Clearance Not Published 14.5 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 94.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2WD: 4752 lb; 4WD: 5742 lb 3285 lb Weight with ROPS and Loader Not Published 4462 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R4 Industrial R1 Agricultural - Front 2WD: 6-16; 4WD: 9.5-20 8.3x16 R1 Agricultural - Rear 2WD: 13.6-28; 4WD: 14.9-26 12.4x24 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 2645L: Quick-attach adapter included (loader interfaces with compatible attachments via quick-attach system). Loader Model 4WD: ML245; 2WD: ML260 2645L (66 in bucket) Loader Lift Height ML245: 117.4 in; ML260: 107.5 in 2645L: 101.9 in Loader Lift Capacity (Full Height) ML245: 2480 lb; ML260: 2500 lb 2645L: 2,041 lb Loader Breakout Force ML245: 4400 lb; ML260: 5000 lb 2645L: 3,430 lb ▶ WarrantyWarranty Length & Coverage Not Published 7-Year Limited Powertrain Warranty
