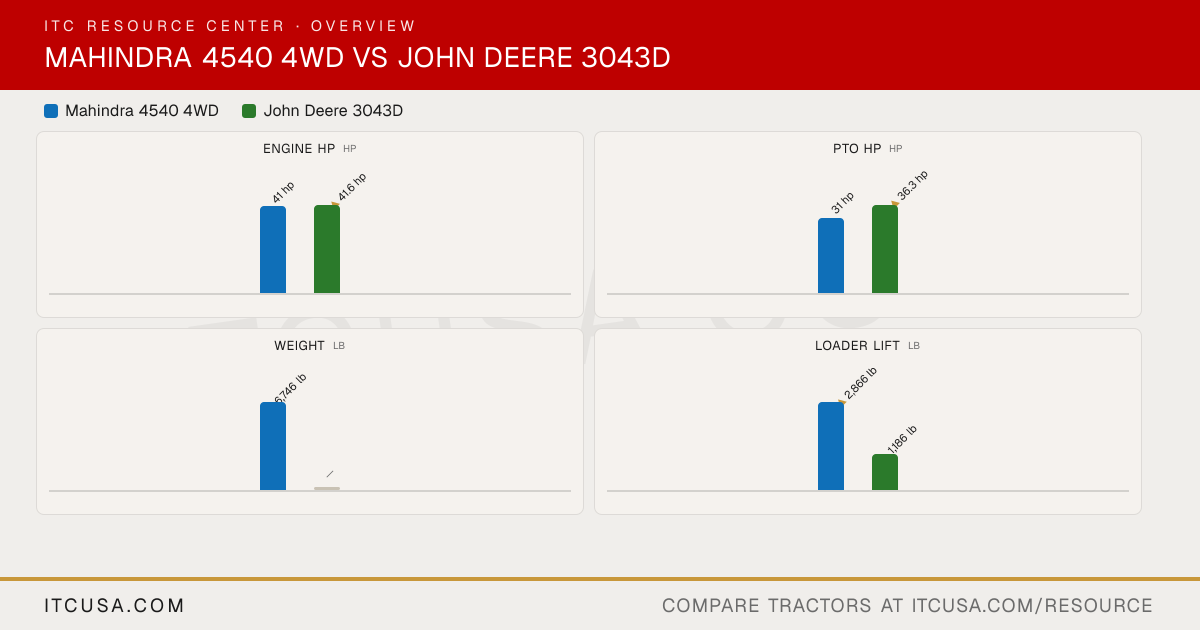

▶ EngineEngine Manufacturer Mahindra Yanmar Engine Model MDI 2700 R2 3TNV86CT-KJPT Engine Type Four-stroke, direct-injection water-cooled, diesel 4-cycle, inline, water-cooled diesel, turbocharged No. of Cylinders 4 3 Displacement 166.7 in³ 95.8 in³ Rated Engine Speed 2300 rpm 2800 rpm Engine Power (Gross) 41 hp 41.6 hp PTO Power 31 hp 36.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid Air Cleaner Dry type with safety cartridge and dust unloader valve Dry Fuel System Direct injection Direct injection Alternator 45 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Not Published Two single-section external gear pumps, one either side of the engine Implement Flow 8.7 gpm 5.9 gpm Steering Flow 5.8 gpm 4.4 gpm Total Hydraulic Flow 8.7 gpm 10.3 gpm Overall Hydraulic Pump Flow 8.7 gpm 10.3 gpm Hydraulic System Type Open center, full-live hydraulic, with position and draft control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None None No. of Optional Remote Valves 1 spool Loader mast mounted SCV (optional); 4th/5th SCV (optional) ▶ Fluid CapacityFuel Tank Capacity 14.55 gal 9.7 gal Coolant Capacity 2.25 gal 1.3 gal Crankcase Capacity 2.14 gal 1.1 gal Transmission / Hydraulic System Capacity 10.57 gal 9.2 gal Front Axle Fluid Capacity 2.24 gal 1.0 gal ▶ PTO & HitchPTO Type Live Transmission driven PTO Rear 540 rpm @ 2058 engine rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I & II adjustable, with telescopic stabilizers Category I Hitch Lift Capacity 3,527 lb Not Published Hitch Lift Capacity (at 24”) Not Published 1,670 lb Lift Control Type Position & draft control Position control ▶ Transmission & DrivetrainTransmission Type Full constant mesh 8F/8R synchromesh shuttle shift gear transmission No. of Speeds 8F / 2R 8F/8R Max Travel Speed (Forward) 17.6 mph 12.9 mph Max Travel Speed (Reverse) 7.53 mph Not Published Clutch Dual Single dry traction (mechanical) Differential Lock & Limited Slip Options Foot-operated differential lock Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Fully enclosed dry disc Wet disk Seat Suspension & Adjustability mComfort mechanical suspension seat Not Published Front Axle Type Not Published 4WD Front Axle Rating Not Published 1,940 lb Drawbar Capacity Not Published 1,102 lb (maximum static vertical load) ▶ Dimensions & ManeuverabilityOverall Width 82.6 in 57.3 in Wheelbase 76.7 in 62 in Ground Clearance 8.7 in 14 in Min. Turn Radius without Brakes 147.63 in 6.9 ft (with brake applied) Height to Top of ROPS 92.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 128.9 in 111.2 in ▶ WeightTractor Weight (Base) 5,192 lb (operating weight) 2,800 lb Weight with ROPS and Loader 6,746 lb (5,192 + 1,554, computed; 4550-1.1 gal loader transport weight) Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Industrial (standard); Agri (optional) R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5X16 7-14 R1 Agricultural - Rear 12.4X28 11.2-24 R3 Turf - Front Not Published 27X8.50-15 R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12X16.5 25X8.50-14 R4 Industrial - Rear 16.9X24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style quick-attach coupler Quick-change attachment carrier Loader Model 4550-4L D160 Loader Lift Height 116.6 in 84 in (at pivot pin) Loader Lift Capacity (Full Height) 2,866 lb at pivot pins to full height 1,186 lb (at pivot point, maximum height) Loader Breakout Force 4,978 lb at pivot pins 1,704 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
