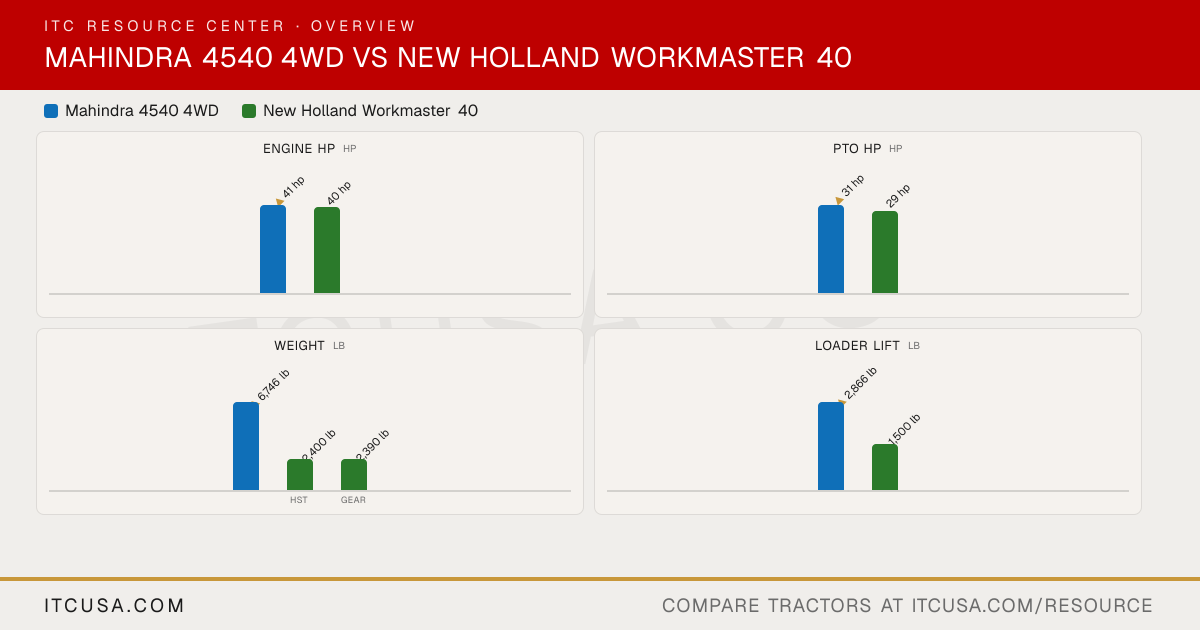

▶ EnginePTO Power 31 hp @ 300 rpm 29 hp Alternator 45 A, 12 V 70 A, 12 V Air Cleaner Not Published Dual element dry air cleaner Engine Type Four-stroke, direct-injection water-cooled, diesel Turbocharged diesel Fuel System Direct injection High pressure common rail (ECU controlled timing) Displacement 166.7 in³ 0.1 in³ No. of Cylinders 4 3 Rated Engine Speed 2300 rpm 2600 rpm Cooling System Type Water-cooled Pressurized liquid with recirculating bypass Engine Manufacturer Mahindra LS Mtron Engine Power (Gross) 41 hp @ 300 rpm 40 hp Engine Emissions Constraints Tier 4 Tier 4B Final ▶ WeightWeight with ROPS and Loader 6746 lbs HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires) Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty 6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain) ▶ HydraulicsPump Type Not Published Gear Steering Flow 5.0 gpm 4.8 gpm Implement Flow 8.7 gpm 8.2 gpm Total Hydraulic Flow 8.7 gpm 13.0 gpm Hydraulic System Type Open center, full-live hydraulic with position and draft controls Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 8.7 gpm 13.0 gpm No. of Optional Remote Valves Not Published 1 or 2 No. of Standard Remote Valves 1 (spool) standard 0 ▶ PTO & HitchPTO Rear 540 rpm @ 2058 engine rpm 540 rpm (6-spline) PTO Type Live Independent Lift Control Type Position & draft control Position control Hitch Lift Capacity Not Published 1,808 lb Mid-PTO Availability Not Applicable Optional Category, 3-Point Hitch Category I & II adjustable, with telescopic stabilizers Category I Hitch Lift Capacity (at 24”) 3527 lbs 1,433 lb ▶ Tire OptionsR3 Turf - Rear Not Applicable 41X14.00-20 R3 Turf - Front Not Applicable 25X8.50-14 Tire Size & Options R1 Agricultural or R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 16.9X24 43X16-20 R4 Industrial - Front 12X16.5 25X8.50-14 R1 Agricultural - Rear 12.4X28 11.2-24 R1 Agricultural - Front 9.5X16 7.0-14 ▶ Fluid CapacityCoolant Capacity Not Published 7.5 qt Crankcase Capacity Not Published 5.8 qt Fuel Tank Capacity 14.55 gal 7.4 gal Front Axle Fluid Capacity Not Published 6.9 qt Transmission / Hydraulic System Capacity Not Published 8.5 gal ▶ Loader & AttachmentsLoader Lift Height 116.6 inches 91.5 in (to bucket pivot pin) Loader Breakout Force 4978 lbs 2,700 lb (bucket pivot pin) Quick Attach Loader System 4550-1.1 gal: Skid-steer style quick-attach coupler 140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates Loader Lift Capacity (Full Height) 2866 lbs 1,500 lb (bucket pivot pin, max height) ▶ Transmission & DrivetrainClutch Dual HST: Not Applicable; Gear: Dry disc, 9.4 in No. of Speeds 8F / 2R HST: Infinite (3-range); Gear: 12F/12R Transmission Type Full constant mesh HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle Max Travel Speed (Forward) 17.6 mph HST: 14.96 mph; Gear: 14.33 mph Max Travel Speed (Reverse) Not Published HST: 14.96 mph; Gear: 13.63 mph Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock ▶ Chassis, Steering & ControlsBrakes Fully enclosed dry disc Wet disc Steering Hydrostatic power steering Power steering Frame Type Not Published Not Published Front Axle Type Not Published 4WD (FWD) Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability mComfort mechanical suspension seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 76.7 inches 69 in Overall Width 82.6 inches 54 in Ground Clearance 8.7 inches 13 in Height to Top of ROPS 92.6 inches 89 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 128.9 inches 134 in
