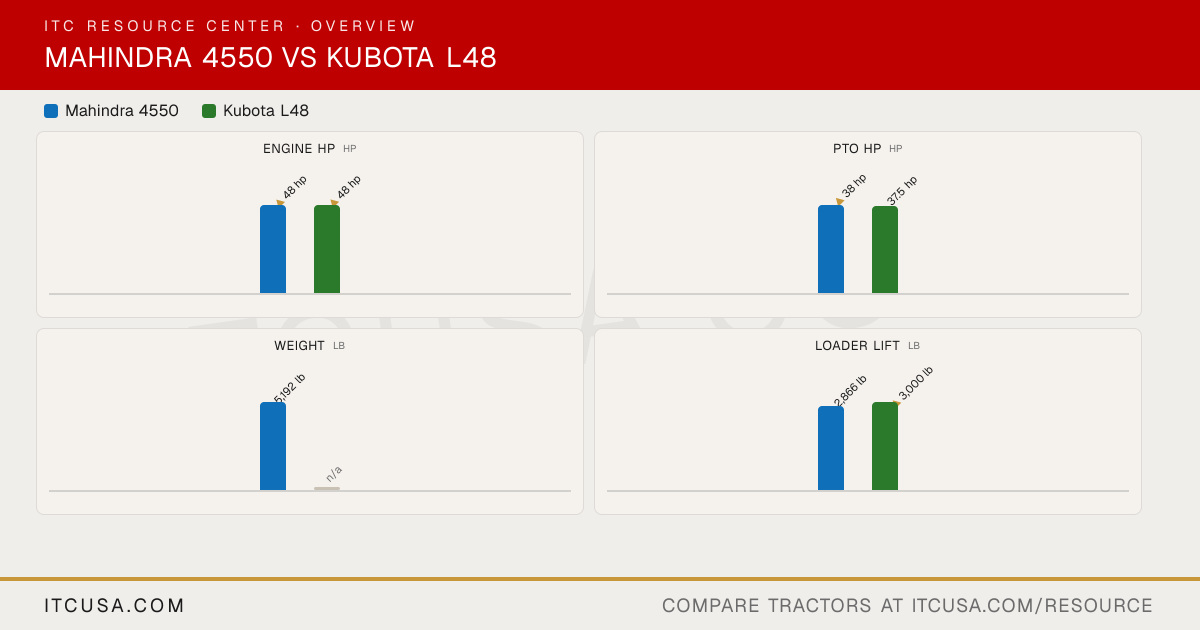

▶ EngineEngine Manufacturer Mahindra Kubota Engine Model MDI 2700 R1 Not Published Engine Type Four-stroke, direct-injection water-cooled, diesel 4-cylinder, indirect injection, liquid-cooled diesel No. of Cylinders 4 4 Displacement 166.7 in³ 148.5 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 48 hp 48 hp PTO Power 38 hp 37.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type with safety cartridge and dust unloader valve Not Published Fuel System Direct injection Not Published Alternator 45 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 8.7 gpm Not Published Steering Flow 5 gpm Not Published Total Hydraulic Flow Not Published 25.9 gpm Overall Hydraulic Pump Flow Not Published 25.9 gpm Hydraulic System Type Open center, full-live hydraulic, with position and draft control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (spool) standard Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 14.55 gal 13.2 gal Coolant Capacity 2.25 gal Not Published Crankcase Capacity 2.14 gal Not Published Transmission / Hydraulic System Capacity 10.57 gal Not Published Front Axle Fluid Capacity 2.24 gal Not Published ▶ PTO & HitchPTO Type Live Live-continuous running PTO Rear 540 rpm @ 2058 engine rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I & II adjustable, with telescopic stabilizers Category I (standard) Hitch Lift Capacity 3,527 lb Not Published Hitch Lift Capacity (at 24”) Not Published 3,310 lb Lift Control Type Position & draft control Position control ▶ Transmission & DrivetrainTransmission Type Full constant mesh "Feather Step" hydrostatic transmission, 3-range No. of Speeds 8F / 2R 3-range (infinite) Max Travel Speed (Forward) 17.6 mph 15.3 mph Max Travel Speed (Reverse) 7.53 mph Not Published Clutch Dual Dry, single Differential Lock & Limited Slip Options Foot-operated differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Four-post ROPS/FOPS standard Steering Hydrostatic power steering Hydrostatic power steering Brakes Fully enclosed dry disc Wet disc Seat Suspension & Adjustability mComfort mechanical suspension seat Movable seat, spins in place; tilt steering standard Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 82.6 in 74.5 in Wheelbase 76.7 in 74.0 in Ground Clearance 8.7 in Not Published Min. Turn Radius without Brakes 147.63 in 10.5 ft Height to Top of ROPS 93.7 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 127 in Not Published ▶ WeightTractor Weight (Base) 5,192 lb (operating weight) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Industrial (standard); Agri (optional) Industrial (R4): 10-16.5 R4 front, 17.5L-24 R4 rear R1 Agricultural - Front 9.5X16 Not Published R1 Agricultural - Rear 12.4X28 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12 x 16.5 10-16.5 R4 R4 Industrial - Rear 16.9X24 17.5L-24 R4 ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style quick-attach coupler Not Published Loader Model 4550-4L TL1150 Loader Lift Height 116.6 in TL1150: 116.1 in (at pivot pin) Loader Lift Capacity (Full Height) 2,866 lb at pivot pins to full height TL1150: 3,000 lb (at pivot pin) Loader Breakout Force 4,978 lb at pivot pins TL1150: 4,375 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty Not Published
