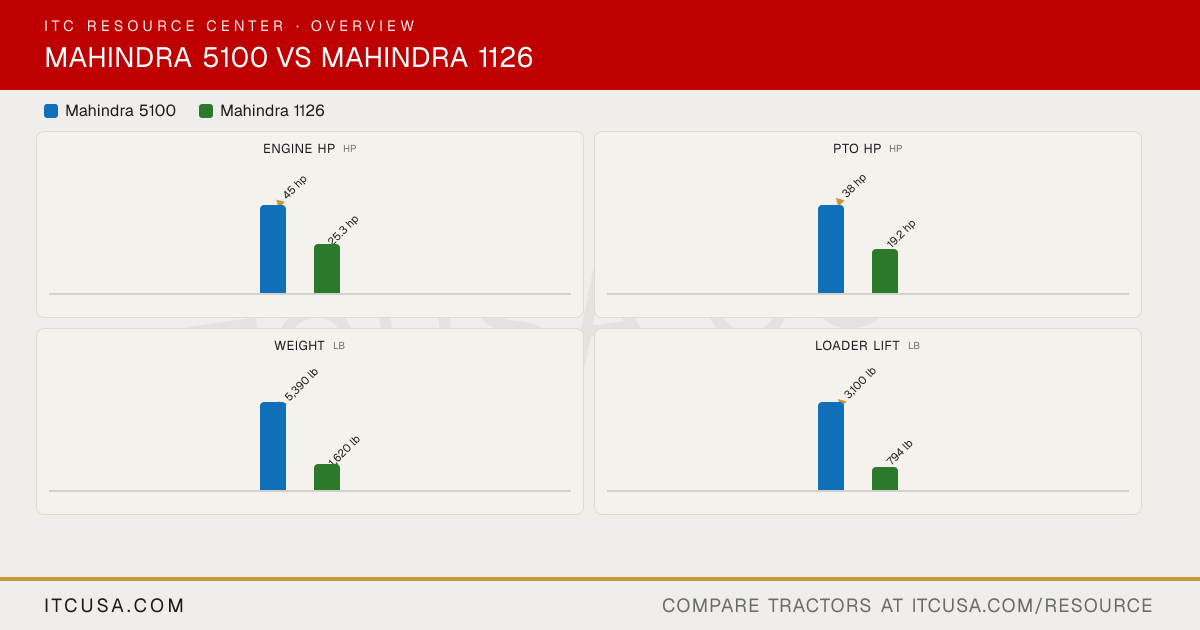

▶ EngineEngine Manufacturer Mahindra Mitsubishi Engine Model Not Published MVL3E3 Engine Type 5145: Four-stroke, naturally aspirated, direct injection, water-cooled diesel; 5155: Four-stroke, turbocharged, direct injection, water-cooled diesel Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel No. of Cylinders 4 3 Displacement 166.2 in³ 67.2 in³ Rated Engine Speed 2300 rpm 3000 rpm Engine Power (Gross) 45 hp 25.3 hp PTO Power 38 hp 19.2 hp Engine Emissions Constraints Not Published No DPF Cooling System Type Not Published Water-Cooled Air Cleaner Not Published Not Published Fuel System Not Published Indirect Injection Alternator 55 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 8.71 gpm 7.6 gpm Steering Flow 4.62 gpm 3.8 gpm Total Hydraulic Flow Not Published 11.2 gpm Overall Hydraulic Pump Flow Not Published 11.2 gpm Hydraulic System Type Open center Open Center, full-live hydraulic with position control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves One Not Published No. of Optional Remote Valves One (optional second rear valve) Single or dual ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 6.6 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent Wet Clutch PTO Rear 540 rpm @ 2300 rpm; 540E @ 1725 rpm 540 rpm @ 2837 rpm Mid-PTO Availability Not Published Optional; 2500 rpm @ 2837 rpm Category, 3-Point Hitch CAT I & II w/ Telescopic Stabilizers & Flex Links CAT I with check chains Hitch Lift Capacity 3,748 lb Not Published Hitch Lift Capacity (at 24”) Not Published 771 lb Lift Control Type Not Published Position Control ▶ Transmission & DrivetrainTransmission Type Full synchromesh with forward/reverse synchro shuttle and constant-mesh range HST - 2 Range No. of Speeds 12F / 12R Infinite Max Travel Speed (Forward) Not Published 7.3 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dual Dry with Cerametallic Lining Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Tilt, power-assisted steering Hydrostatic Power Steering Brakes Fully-enclosed, 7-in Diameter, Dry Disc Single Pedal Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 46.3 in Wheelbase 77.9 in 55.1 in Ground Clearance 5145: 15.2 in; 5155: 16.4 in 6.7 in Min. Turn Radius without Brakes 12.8 ft (3.9 m) 7.2 ft (with brake applied) Height to Top of ROPS Not Published 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length Not Published 100.4 in ▶ WeightTractor Weight (Base) 5,390 lb 1,620 lb (operating weight) Weight with ROPS and Loader Not Published 2,026 lb (1,620 + 406, computed; L11 loader shipping weight) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Industrial, Turf R1 Agricultural - Front 9.5 x 20 Not Published R1 Agricultural - Rear 14.9 x 28 Not Published R3 Turf - Front Not Published 18x8.5-10 R3 Turf - Rear Not Published 26x12-12 R4 Industrial - Front 10.5/80x18 18x8.5-10 R4 Industrial - Rear 16.9 x 24 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published L11: Front loader skid-steer couplers for superfast hookups Loader Model 5155-4L L11 Loader Lift Height 5155-4L: 122 in L11: 68 in Loader Lift Capacity (Full Height) 5155-4L: 3,100 lb L11: 794 lb; Measured at: pivot pin, full height Loader Breakout Force 5155-4L: 5,200 lb L11: 1,433 lb ▶ WarrantyWarranty Length & Coverage 5-year, 3000-hour limited powertrain warranty 7-Year Limited Powertrain Warranty
