Mahindra 5100 vs Mahindra 4530 | Side-by-side comparison | ITC Resource Center
Compare Tractors

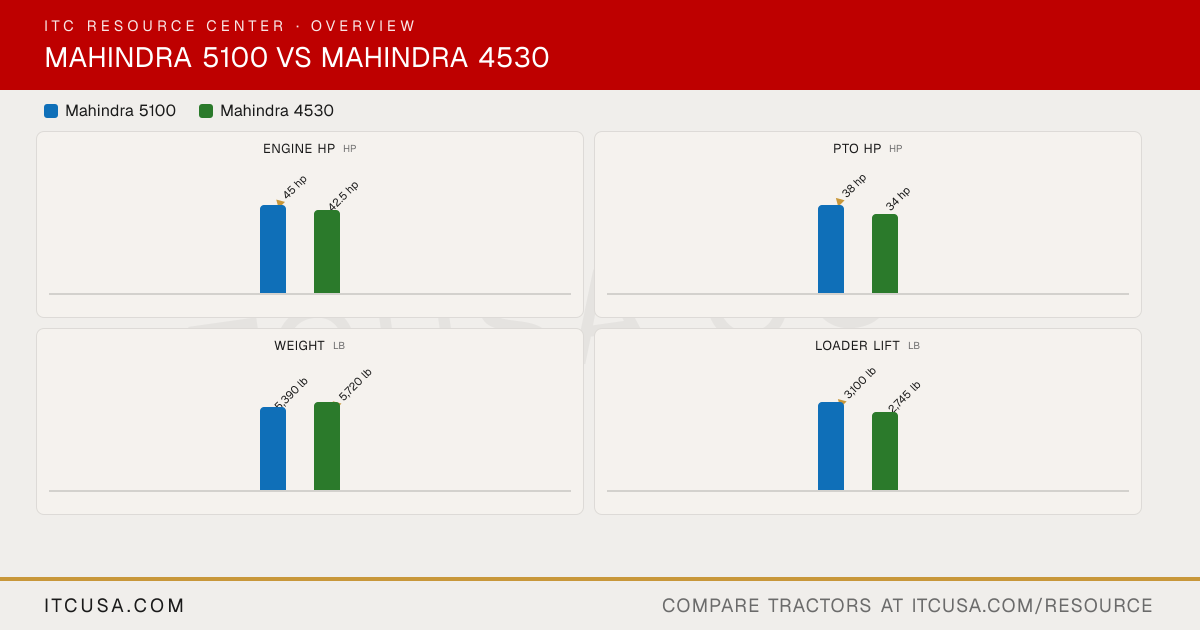

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra5100
Mahindra4530
Engine Manufacturer
Mahindra
Mahindra
Engine Model
Not Published
NE342
Engine Type
5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine
Four stroke, direct injection, water-cooled, diesel
No. of Cylinders
4
3
Displacement
166.2 in³
146 in³
Rated Engine Speed
2300 rpm
2100 rpm
Engine Power (Gross)
45 hp
42.5 hp
PTO Power
38 hp
34 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Not Published
Not Published
Air Cleaner
Not Published
Not Published
Fuel System
Not Published
Direct injection
Alternator
55 A, 12 V
36 A, 12 V
Pump Type
Open center; adjustable lower links with stabilizer
Not Published
Implement Flow
8.71 gpm
11 gpm
Steering Flow
4.62 gpm
4.5 gpm
Total Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
Not Published
Hydraulic System Type
Open center
Open centre, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
1 (optional second rear valve)
Optional (1)
Fuel Tank Capacity
17.1 gal
Not Published
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Independent
PTO Rear
540 rpm @ 2300 rpm; 540E @ 1725 rpm
540 rpm @ 2100 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
CAT I & II w/ Telescopic Stabilizers & Flex Links
Category 1 & 2 with telescopic check chains
Hitch Lift Capacity
3748 lb
3968 lb
Hitch Lift Capacity (at 24”)
Not Published
Not Published
Lift Control Type
Not Published
Position and draft control
Transmission Type
Full Synchromesh with forward/reverse synchro shuttle & constant mesh range
Forward-reverse synchro-shuttle with full synchromesh gearshift
No. of Speeds
12F / 12R
8F/8R
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dual Dry with Cerametallic Lining
Dual with cerametallic lining
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Tilt, power-assisted steering
Hydrostatic power
Brakes
Fully-enclosed, 7-in Diameter, Dry Disc
Dry disc
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
Not Published
133.9 in
Overall Width
Not Published
73 in
Wheelbase
77.9 in
Not Published
Ground Clearance
5145: 15.2 in; 5155: 16.4 in
Not Published
Min. Turn Radius without Brakes
10.8 ft
10.9 ft
Height to Top of ROPS
60.6 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
5390 lb
5720 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
9.5 x 20
9.5x20
R1 Agricultural - Rear
14.9 x 28
13.6x28
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
10.5/80x18
10.5/80x18
R4 Industrial - Rear
16.9 x 24
16.9Lx24
Quick Attach Loader System
Not Published
Not Published
Loader Model
5155-4L
ML445 (named by Mahindra literature; a US listing calls the same loader the ML245)
