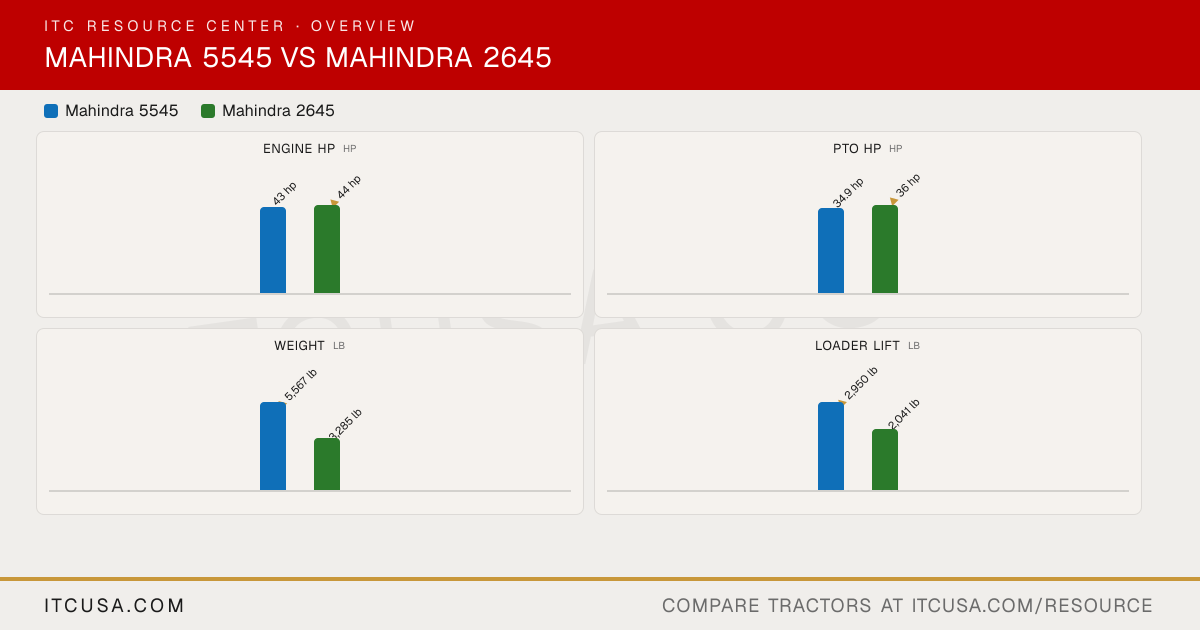

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published CE-45 Engine Type Four stroke, direct injection, water-cooled diesel Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine No. of Cylinders 3 4 Displacement 161.7 in³ 166.7 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 43 hp 44 hp PTO Power 34.9 hp 36 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Water-cooled Air Cleaner Not Published Dry dual element Fuel System Not Published Direct Injection (mCRD fuel-injected) Alternator 45 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 10.9 gpm 8.2 gpm Steering Flow 5 gpm 4.1 gpm Total Hydraulic Flow Not Published 12.7 gpm Overall Hydraulic Pump Flow Not Published 12.7 gpm Hydraulic System Type Open center, full-live hydraulic with position and draft controls Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 1 (optional) 1 (optional) ▶ Fluid CapacityFuel Tank Capacity 12 gal 9 gal Coolant Capacity Not Published 1.85 gal Crankcase Capacity Not Published 1.98 gal Transmission / Hydraulic System Capacity Not Published 9.25 gal Front Axle Fluid Capacity Not Published 2.17 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2058 rpm 540 rpm @ 2650 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1 and 2 with telescopic stabilizers CAT I Hitch Lift Capacity 3969 lb 2646 lb Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Position Control ▶ Transmission & DrivetrainTransmission Type Forward/reverse synchro shuttle with synchro speeds and constant mesh range Sync, shuttle with part synchromesh No. of Speeds 8F/8R 12F / 12R Max Travel Speed (Forward) Not Published 13 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry with cerametallic lining Dry single plate Differential Lock & Limited Slip Options Not Published Bevel gears with diff-lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power Power steering Brakes Dry disc Wet Disc Brake, Mechanical Seat Suspension & Adjustability Not Published mComfort seat (mechanical suspension; adjustable headrest; foldable armrests) Front Axle Type Not Published Center pin Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 134 in 119.3 in Overall Width 72.5 in 63.2 in Wheelbase Not Published 67.7 in Ground Clearance Not Published 14.5 in Min. Turn Radius without Brakes 10.8 ft Not Published Height to Top of ROPS 93.3 in 94.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 5567 lb 3285 lb Weight with ROPS and Loader Not Published 4462 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R4 Industrial R1 Agricultural - Front 9.5x20 8.3x16 R1 Agricultural - Rear 13.6x28 12.4x24 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.5/80x18 10-16.5 R4 Industrial - Rear 16.9x24 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 2645L: Quick-attach adapter included (loader interfaces with compatible attachments via quick-attach system). Loader Model 5545L 2645L (66 in bucket) Loader Lift Height 5545L: 120 in 2645L: 101.9 in Loader Lift Capacity (Full Height) 5545L: 2950 lb 2645L: 2,041 lb Loader Breakout Force 5545L: 4950 lb 2645L: 3,430 lb ▶ WarrantyWarranty Length & Coverage Not Published 7-Year Limited Powertrain Warranty
