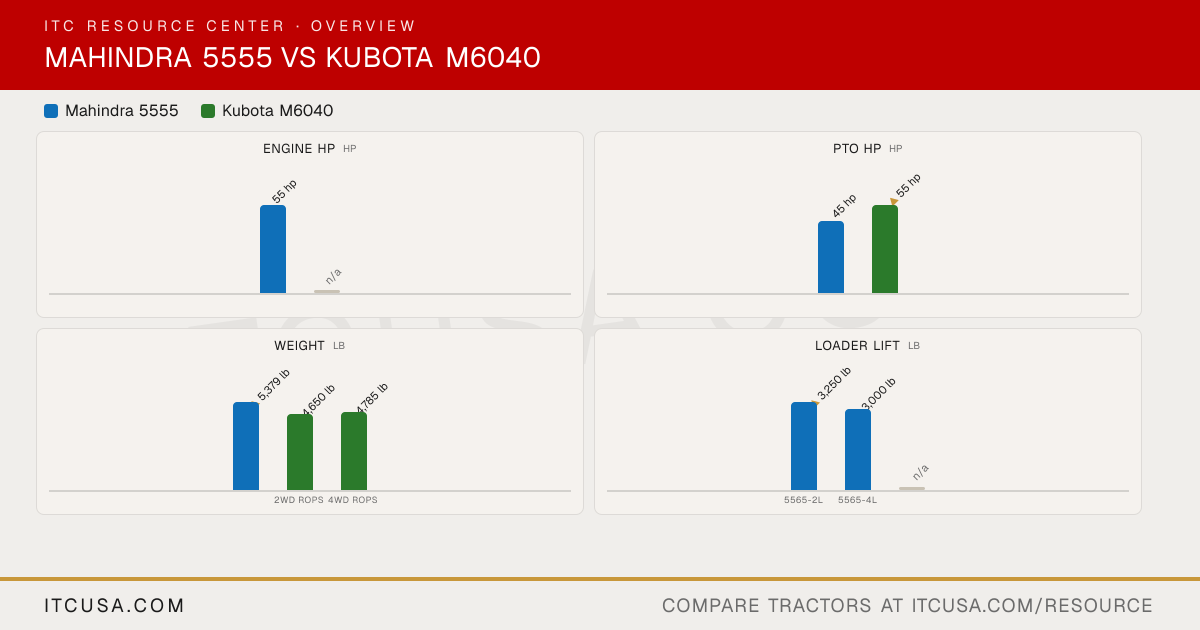

▶ EngineEngine Manufacturer Mahindra Kubota Engine Model Not Published V3307-DI Engine Type Turbocharged and intercooled, direct injection diesel 4-cylinder inline, direct injected diesel No. of Cylinders 3 4 Displacement 161.7 in³ 203 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 55 hp Not Published PTO Power 45 hp 55 hp Engine Emissions Constraints Tier 4 Tier 2 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published 8 in dry, dual element Fuel System Turbocharged and intercooled, direct injection, common-rail Direct injection Alternator 55 A, 12 V ROPS: 45 A, 12 V; Cab: 60 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.2 gpm 11.0 gpm Steering Flow 4.6 gpm 6.1 gpm Total Hydraulic Flow 15.8 gpm (11.2 + 4.6, computed) 17.1 gpm (11.0 + 6.1, computed) Overall Hydraulic Pump Flow Not Published 17.1 gpm (11.0 + 6.1, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.0 gpm No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 2 spool optional 2nd and 3rd optional ▶ Fluid CapacityFuel Tank Capacity 17.1 gal ROPS: 18.5 gal; Cab: 29.1 gal Coolant Capacity Not Published 8.5 qt Crankcase Capacity Not Published 11.6 qt Transmission / Hydraulic System Capacity Not Published 59.2 qt Front Axle Fluid Capacity Not Published Front differential case: 5.8 qt; front axle gear case: 3.7 qt each side ▶ PTO & HitchPTO Type Independent Live, independent PTO, hydraulically operated wet clutch with PTO brake PTO Rear 540 rpm @ 2059 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I and II with telescopic stabilizers Category I and II Hitch Lift Capacity 3,968 lb 4,189 lb Hitch Lift Capacity (at 24”) Not Published 3,307 lb Lift Control Type Position and draft control Position, draft (top link sensing) and mix control ▶ Transmission & DrivetrainTransmission Type Constant mesh with forward/reverse synchro shuttle Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models No. of Speeds 8F/8R 8F/8R (12F/12R with optional creep) Max Travel Speed (Forward) Not Published 17.8 mph Max Travel Speed (Reverse) Not Published 18.0 mph Clutch Dual dry with cerametallic lining Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle) Differential Lock & Limited Slip Options Not Published Rear differential lock (bevel gears) ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc Multiple wet disc, mechanical Seat Suspension & Adjustability Not Published Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab) Front Axle Type Not Published 4WD: bevel-gear type, on-the-go engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 2,200 lb ▶ Dimensions & ManeuverabilityOverall Width 75.3 in (5555 2WD); 79 in (5555 4WD) 73.2 in Wheelbase Not Published 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in Ground Clearance Not Published 15.4 in Min. Turn Radius without Brakes 11.6 ft (5555 2WD); 13.75 ft (5555 4WD) 2WD: 11.2 ft; 4WD: 11.8 ft Height to Top of ROPS 100.5 in (5555 2WD); 98.8 in (5555 4WD) 96.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 99.8 in Overall Length 138.4 in (5555 2WD); 140 in (5555 4WD) 2WD: 140.4 in; 4WD: 135.6 in ▶ WeightTractor Weight (Base) 5,379 lb (5555 2WD, operating weight); 6,039 lb (5555 4WD, operating weight) 2WD ROPS: 4,650 lb; 4WD ROPS: 4,785 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag (5555 2WD); Ag, Industrial (5555 4WD) Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear R1 Agricultural - Front 7.5x16 (5555 2WD); 9.5x24 (5555 4WD) 2WD: 7.5-16; 4WD: 9.5-24 R1 Agricultural - Rear 14.9x28 16.9-28 R3 Turf - Front Not Published 2WD: 29x12.5-15 or 27x9.5-15 R3 Turf - Rear Not Published 2WD: 21.5L-16.1 or 16.9-24 R4 Industrial - Front 12.5/80x18 (5555 4WD) 12.5/80-18 (4WD) R4 Industrial - Rear 16.9x24 (5555 4WD) 16.9-24 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA1153: two-lever quick coupler Loader Model 5565-2L (5555 2WD); 5565-4L (5555 4WD) LA1153 Loader Lift Height 5565-2L: 123 in; 5565-4L: 128 in LA1153 height position: 132.7 in; LA1153 power position: 117.2 in Loader Lift Capacity (Full Height) 5565-2L: 3,250 lb; 5565-4L: 3,000 lb Not Published Loader Breakout Force 5565-2L: 5,300 lb; 5565-4L: 4,825 lb Not Published ▶ WarrantyWarranty Length & Coverage 5-year limited powertrain warranty Not Published
