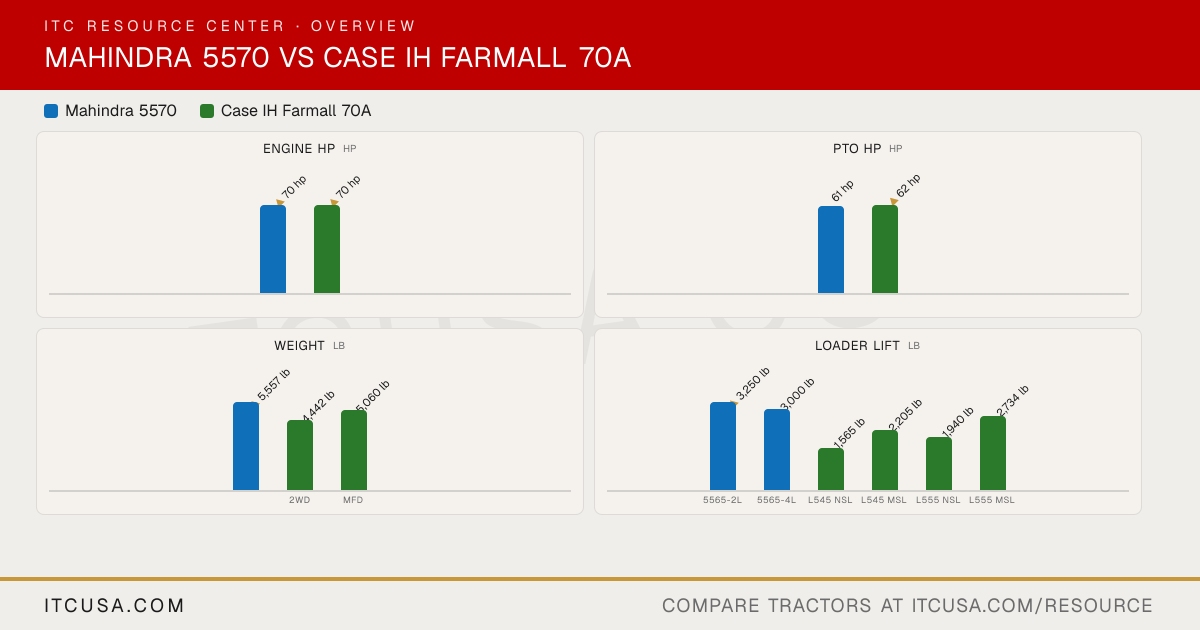

▶ EngineEngine Manufacturer Mahindra FPT Engine Model Not Published R 753 IE4 Engine Type Four stroke, direct injection, turbo-charged and intercooled diesel 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 3 3 Displacement 161.5 in³ 135.9 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 70 hp 70 hp PTO Power 61 hp 62 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry Fuel System Direct injection, turbocharged and intercooled (mCRD common rail) Electronic high pressure common rail Alternator 55 A, 12 V 75 A ▶ HydraulicsPump Type Not Published Engine-driven dual gear-type Implement Flow 11.2 gpm 11.9 gpm Steering Flow 4.6 gpm 5.5 gpm Total Hydraulic Flow 15.8 gpm (11.2 + 4.6, computed) 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 17.2 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2059 rpm 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I and II with telescopic stabilizers Category I/II Hitch Lift Capacity 3968 lb Not Published Hitch Lift Capacity (at 24”) Not Published 2,701 lb Lift Control Type Position and draft control Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Constant mesh with forward/reverse synchro shuttle 8x8 mechanical shuttle (dry clutch) No. of Speeds 8F/8R 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry with cerametallic lining Dry clutch Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Contoured seat, adjustable Front Axle Type Not Published 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 138.3 in (5570 2WD); 145 in (5570 4WD) 2WD: 129.5 in; MFD: 134.0 in Overall Width 77.3 in (5570 2WD); 81 in (5570 4WD) 67.5 in Wheelbase Not Published 2WD: 77.5 in; MFD: 77.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 14 ft (5570 2WD); 15.7 ft (5570 4WD) 2WD: 135.8 in; MFD: 190.9 in Height to Top of ROPS 103.3 in (5570 2WD); 99.7 in (5570 4WD) 2WD: 92.7 in; MFD: 97.4 in Height to Top of ROPS (folded) Not Published 77 in Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 5557 lb (5570 2WD); 6302 lb (5570 4WD) 2WD: 4,442 lb; MFD: 5,060 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag (5570 2WD); Ag, Industrial (5570 4WD) R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD R1 Agricultural - Front 9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD) 2WD: 7.5x16; MFD: 8.3x24 R1 Agricultural - Rear 16.9x28 (5570 2WD); 16.9x30 (5570 4WD) 13.6x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80x18 (5570 4WD) MFD: 12.5x18 R4 Industrial - Rear 16.9x24 (5570 4WD) MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Compatible loaders: L545, L555 Loader Model 5565-2L (5570 2WD); 5565-4L (5570 4WD) L545; L555 Loader Lift Height 5565-2L: 123 in; 5565-4L: 128 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) 5565-2L: 3,250 lb; 5565-4L: 3,000 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force 5565-2L: 5,300 lb; 5565-4L: 4,825 lb L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
