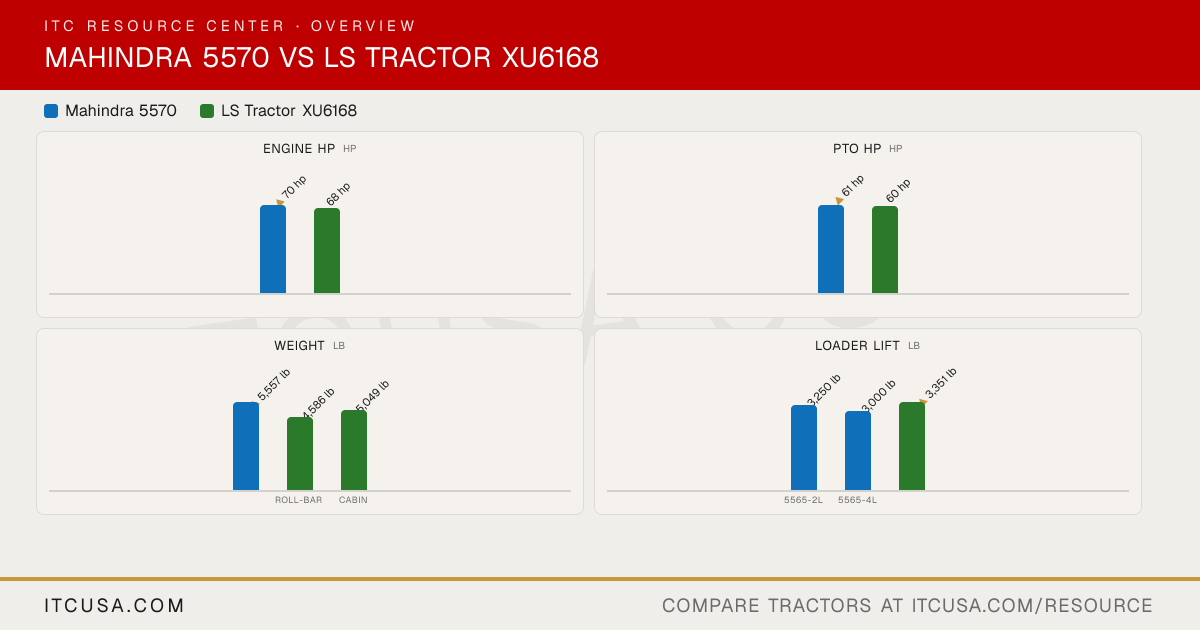

▶ EngineEngine Manufacturer Mahindra LS Mtron Engine Model Not Published L4C25-T2 Engine Type Four stroke, direct injection, turbo-charged and intercooled diesel In-line vertical, Water cooled 4-cycle diesel, CRDI No. of Cylinders 3 4 Displacement 161.5 in³ 152.86 in³ Rated Engine Speed 2100 rpm 2500 rpm Engine Power (Gross) 70 hp 68 hp PTO Power 61 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry Fuel System Direct injection, turbocharged and intercooled (mCRD common rail) CRDI Alternator 55 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Not Published Gear type, engine drive Implement Flow 11.2 gpm 9.9 gpm Steering Flow 4.6 gpm 4.6 gpm Total Hydraulic Flow 15.8 gpm (11.2 + 4.6, computed) 14.5 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 21.1 gal Coolant Capacity Not Published 2.4 gal Crankcase Capacity Not Published 1.8 gal Transmission / Hydraulic System Capacity Not Published 12.4 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2059 rpm 540 (standard); 540 / 750 / 1,000 (optional 3-speed) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I and II with telescopic stabilizers Category II Hitch Lift Capacity 3968 lb 4,079 lb Hitch Lift Capacity (at 24”) Not Published 3,483 lb Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Constant mesh with forward/reverse synchro shuttle Synchro-shuttle (standard); Power shuttle (optional) No. of Speeds 8F/8R F16 x R16 (F32 x R16 with creeper, optional) Max Travel Speed (Forward) Not Published 17.99 mph Max Travel Speed (Reverse) Not Published 14.81 mph Clutch Dual dry with cerametallic lining Dry single clutch (mechanical); wet clutch disks (power shuttle) Differential Lock & Limited Slip Options Not Published Mechanical pedal type differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 138.3 in (5570 2WD); 145 in (5570 4WD) 138.6 in Overall Width 77.3 in (5570 2WD); 81 in (5570 4WD) 70 in Wheelbase Not Published 80.3 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 14 ft (5570 2WD); 15.7 ft (5570 4WD) 10.8 ft (with brake applied) Height to Top of ROPS 103.3 in (5570 2WD); 99.7 in (5570 4WD) 103 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 100.6 in ▶ WeightTractor Weight (Base) 5557 lb (5570 2WD); 6302 lb (5570 4WD) Roll-bar: 4,586 lb; Cabin: 5,049 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag (5570 2WD); Ag, Industrial (5570 4WD) Ag 9.5-20 / 16.9-24; Industrial 10.5/80-18 / 19.5L-24; Turf 36x13.5-15 / 16.9-24 R1 Agricultural - Front 9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD) 9.5-20 R1 Agricultural - Rear 16.9x28 (5570 2WD); 16.9x30 (5570 4WD) 16.9-24 R3 Turf - Front Not Published 36x13.5-15 R3 Turf - Rear Not Published 16.9-24 R4 Industrial - Front 12.5/80x18 (5570 4WD) 10.5/80-18 R4 Industrial - Rear 16.9x24 (5570 4WD) 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 5565-2L (5570 2WD); 5565-4L (5570 4WD) LL5106 Loader Lift Height 5565-2L: 123 in; 5565-4L: 128 in LL5106: 116 in Loader Lift Capacity (Full Height) 5565-2L: 3,250 lb; 5565-4L: 3,000 lb LL5106: 3,351 lb (at pivot pin, 1.5 m height) Loader Breakout Force 5565-2L: 5,300 lb; 5565-4L: 4,825 lb LL5106: 4,556 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
