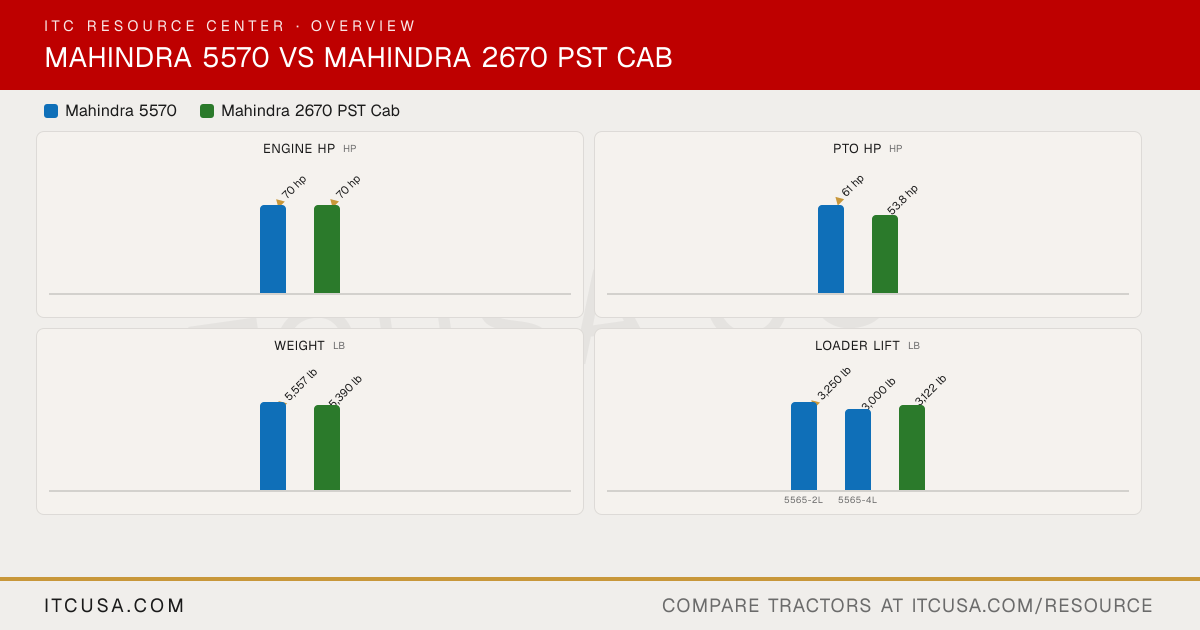

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published VNEF Engine Type Four stroke, direct injection, turbo-charged and intercooled diesel Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine No. of Cylinders 3 3 Displacement 161.5 in³ 161.7 in³ Rated Engine Speed 2100 rpm 2300 rpm Engine Power (Gross) 70 hp 70 hp PTO Power 61 hp 53.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dual dry Fuel System Direct injection, turbocharged and intercooled (mCRD common rail) Direct Injection (mCRD fuel-injected) Alternator 55 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.2 gpm 11.8 gpm Steering Flow 4.6 gpm 4.9 gpm Total Hydraulic Flow 15.8 gpm (11.2 + 4.6, computed) 16.7 gpm Overall Hydraulic Pump Flow Not Published 16.7 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 Spool No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 18.5 gal Coolant Capacity Not Published 9.5 qt Crankcase Capacity Not Published 7.1 qt Transmission / Hydraulic System Capacity Not Published 11 gal Front Axle Fluid Capacity Not Published 17.4 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2059 rpm 540 rpm @ 2300 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I and II with telescopic stabilizers CAT II with Telescoping Stabilizers & Flex Links Hitch Lift Capacity 3968 lb 3528 lb Hitch Lift Capacity (at 24”) Not Published 3153 lb Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Constant mesh with forward/reverse synchro shuttle Power Shuttle No. of Speeds 8F/8R 12F / 12R Max Travel Speed (Forward) Not Published 17.7 mph Max Travel Speed (Reverse) Not Published 18.1 mph Clutch Dual dry with cerametallic lining Dry Single Plate Differential Lock & Limited Slip Options Not Published Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc Wet Disc Brake, Mechanical Seat Suspension & Adjustability Not Published mComfort seat (mechanical suspension; adjustable headrest; foldable armrests) Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 138.3 in (5570 2WD); 145 in (5570 4WD) 144.4 in Overall Width 77.3 in (5570 2WD); 81 in (5570 4WD) 71.5 in Wheelbase Not Published 83 in Ground Clearance Not Published 15.7 in Min. Turn Radius without Brakes 14 ft (5570 2WD); 15.7 ft (5570 4WD) Not Published Height to Top of ROPS 103.3 in (5570 2WD); 99.7 in (5570 4WD) Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 102 in ▶ WeightTractor Weight (Base) 5557 lb (5570 2WD); 6302 lb (5570 4WD) 5390 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 6708 lb ▶ Tire OptionsTire Size & Options Ag (5570 2WD); Ag, Industrial (5570 4WD) R1 Agricultural, R4 Industrial, R3 Turf R1 Agricultural - Front 9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD) 9.5X20 R1 Agricultural - Rear 16.9x28 (5570 2WD); 16.9x30 (5570 4WD) 14.9X28 R3 Turf - Front Not Published LSW305-521 R3 Turf - Rear Not Published LSW570-648 R4 Industrial - Front 12.5/80x18 (5570 4WD) 10.5/80X18 R4 Industrial - Rear 16.9x24 (5570 4WD) 18.4X24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 2670CL: Quick-attach adapter included (loader interfaces with compatible attachments via quick-attach system). Loader Model 5565-2L (5570 2WD); 5565-4L (5570 4WD) 2670CL Loader Lift Height 5565-2L: 123 in; 5565-4L: 128 in 2670CL: 115.4 in Loader Lift Capacity (Full Height) 5565-2L: 3,250 lb; 5565-4L: 3,000 lb 2670CL: 3,122 lb at pivot pin to full height Loader Breakout Force 5565-2L: 5,300 lb; 5565-4L: 4,825 lb 2670CL: 5,225 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 7-Year Limited Powertrain Warranty
