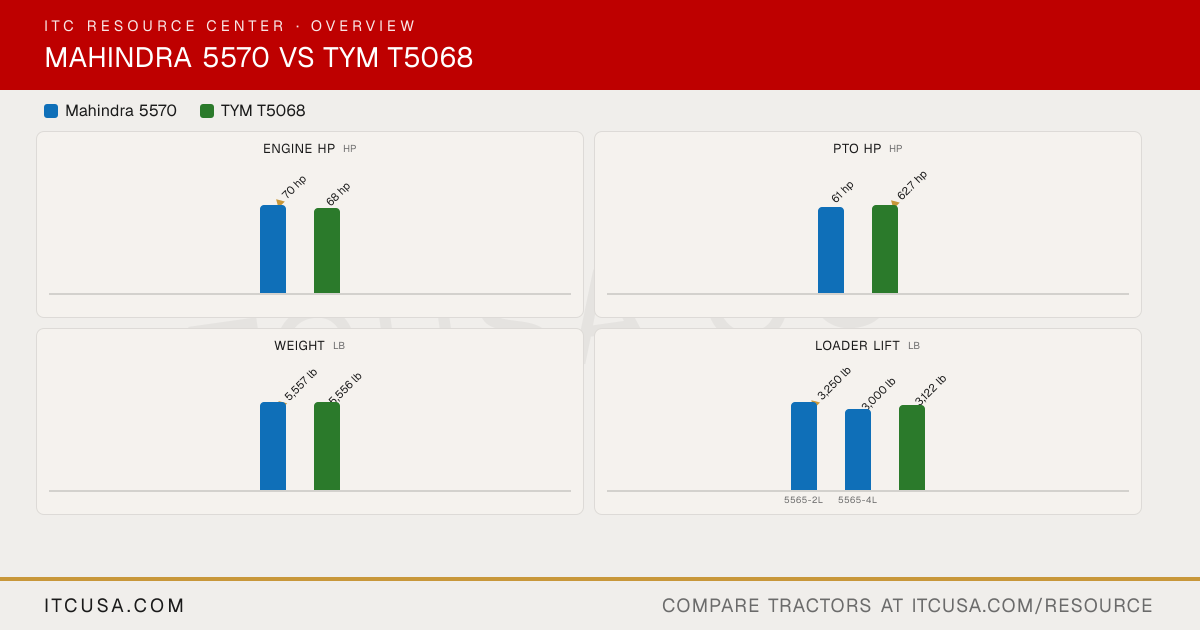

▶ EngineEngine Manufacturer Mahindra Deutz Engine Model Not Published TCD 2.9 Engine Type Turbocharged and intercooled, direct injection diesel 4-cylinder, turbocharged diesel No. of Cylinders 3 4 Displacement 161.5 in³ 177 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 70 hp 68 hp PTO Power 61 hp 62.7 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dual dry Fuel System Turbocharged and intercooled, direct injection, common-rail CRDI Alternator 55 A, 12 V 95 A, 12 V ▶ HydraulicsPump Type Not Published Dual gear pump Implement Flow 11.2 gpm 10.3 gpm Steering Flow 4.6 gpm 5.8 gpm Total Hydraulic Flow 15.8 gpm (11.2 + 4.6, computed) 16.1 gpm Overall Hydraulic Pump Flow Not Published 16.1 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 6 (Floating/Regen); 4 (Spring/Floating) No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 18.5 gal Coolant Capacity Not Published 2.8 gal Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published 11.1 gal Front Axle Fluid Capacity Not Published 4.3 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2059 rpm 540/750 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I and II with telescopic stabilizers Category II Hitch Lift Capacity 3,968 lb 4,270 lb Hitch Lift Capacity (at 24”) Not Published 3,153 lb Lift Control Type Position and draft control Position/Draft ▶ Transmission & DrivetrainTransmission Type Constant mesh with forward/reverse synchro shuttle Synchro or power shuttle No. of Speeds 8F/8R Not Published Max Travel Speed (Forward) Not Published 23 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry with cerametallic lining M: Dry Single Plate; PS: Wet Multi Plate Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 77.3 in (5570 2WD); 81 in (5570 4WD) 72.4 in Wheelbase Not Published 84.7 in Ground Clearance Not Published 17.1 in Min. Turn Radius without Brakes 14 ft (5570 2WD); 15.7 ft (5570 4WD) 162.2 in Height to Top of ROPS 103.3 in (5570 2WD); 99.7 in (5570 4WD) Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 103 in Overall Length 138.3 in (5570 2WD); 145 in (5570 4WD) 155.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 5,557 lb (5570 2WD, operating weight); 6,302 lb (5570 4WD, operating weight) 5,556 lb (with cab) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag (5570 2WD); Ag, Industrial (5570 4WD) Not Published R1 Agricultural - Front 9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD) 9.5R20 R1 Agricultural - Rear 16.9x28 (5570 2WD); 16.9x30 (5570 4WD) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80x18 (5570 4WD) Not Published R4 Industrial - Rear 19.5x24 (5570 4WD) 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 5565-2L (5570 2WD); 5565-4L (5570 4WD) L5068SL Loader Lift Height 5565-2L: 123 in; 5565-4L: 128 in L5068SL: 124.8 in Loader Lift Capacity (Full Height) 5565-2L: 3,250 lb; 5565-4L: 3,000 lb L5068SL: 3,122 lb (at pivot pin) Loader Breakout Force 5565-2L: 5,300 lb; 5565-4L: 4,825 lb L5068SL: 5,225 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage 5-year limited powertrain warranty Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
