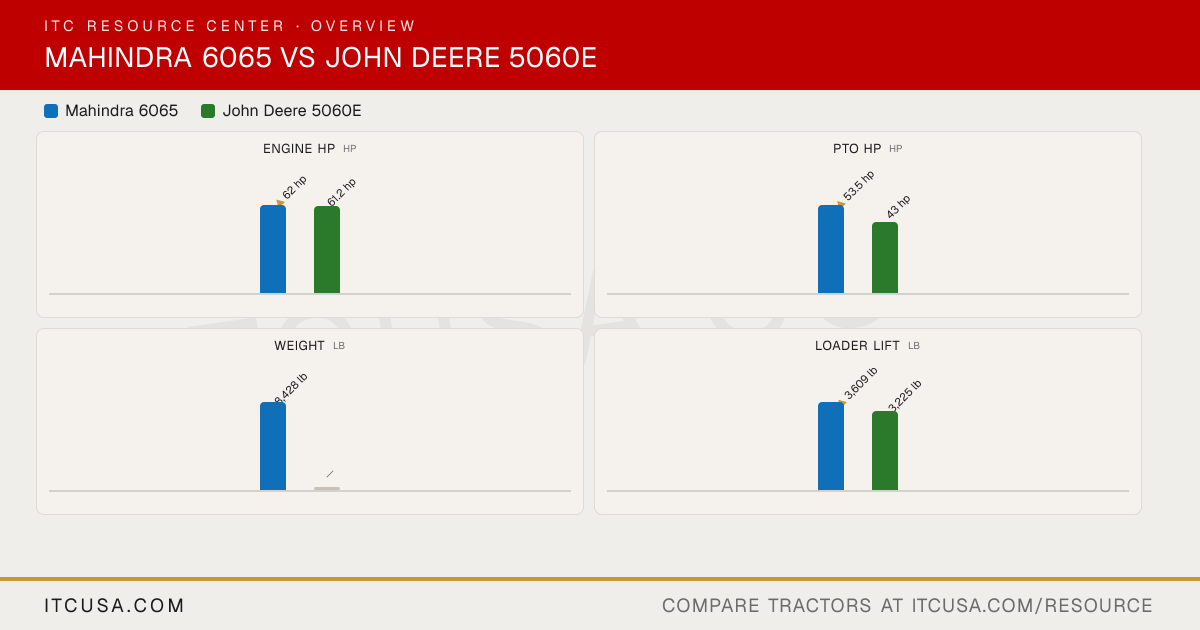

▶ EnginePTO Power 53.5 hp 43 hp Alternator 55 A, 12 V 60 A, 12 V Air Cleaner Not Published Dry type air cleaner with safety element Engine Type Four stroke, turbocharged, intercooled, CRDI, water cooled diesel engine, comply with US Tier-4 Final Diesel, turbocharged and aftercooled Fuel System CRDI Electronically controlled, high-pressure common rail Displacement 161.7 in³ 179 in³ No. of Cylinders 3 3 Rated Engine Speed 2100 rpm 2100 rpm Cooling System Type Water-cooled Liquid-cooled Engine Manufacturer Mahindra John Deere PowerTech 3029 EWR Engine Power (Gross) 62 hp @ 100 rpm 61.2 hp @ 100 rpm Engine Emissions Constraints US Tier-4 Final; No DPF; No DEF; No regeneration Tier 4 ▶ WeightWeight with ROPS and Loader 8428 lb Not Published Weight with Cab and Loader Not Applicable Not Published ▶ WarrantyWarranty Length & Coverage 5-Year limited powertrain warranty 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ HydraulicsPump Type Not Published Tandem gear pump (implement + steering) Steering Flow 4.6 gpm 6.8 gpm Implement Flow 11.1 gpm 11.4 gpm Total Hydraulic Flow 15.7 gpm 18.2 gpm Hydraulic System Type Open center with position and draft control, telescoping stabilizers and flex links Open center Rear Remote Hydraulic Flow Not Published 11.4 gpm at a single rear SCV Overall Hydraulic Pump Flow 15.7 gpm 18.2 gpm No. of Optional Remote Valves 1 2 No. of Standard Remote Valves 2 1 ▶ PTO & HitchPTO Rear 540 @ 1993 rpm and 540E @ 1469 rpm 540 @ 2083 engine rpm; 540E @ 1588 engine rpm (PowrReverser) PTO Type 2-speed independent push button type 1 PTO (wet clutch) Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Lift Control Type Position & draft control Position control with draft control; adjustable rate of drop Hitch Lift Capacity Not Published 3,968 lb @ hitch points Mid-PTO Availability Not Published Not Applicable Category, 3-Point Hitch CAT I & II Category II; convertible to Category I Hitch Lift Capacity (at 24”) 5952 lb 3,197 lb @ 24 in behind hitch balls ▶ Tire OptionsR3 Turf - Rear Not Published 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R3 Turf - Front Not Published 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Tire Size & Options R1 Agricultural, R4 Industrial R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial - Rear 18.4X28 4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 R4 Industrial - Front 43X16-20 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R1 Agricultural - Rear 16.9X30 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W R1 Agricultural - Front 11.2X24 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W ▶ Fluid CapacityCoolant Capacity Not Published Open operator station: 2.85 gal; Cab: 3.08 gal Crankcase Capacity Not Published 9.0 qt (with filter) Fuel Tank Capacity 23.8 gal Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal) Front Axle Fluid Capacity Not Published DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side Transmission / Hydraulic System Capacity Not Published 8.36 gal (9x3); 9.46 gal (12x12) ▶ Loader & AttachmentsLoader Lift Height 133 in 124 in Loader Breakout Force 5000 lb 4,354 lb (measured at pivot) Quick Attach Loader System 1,604.8 gal: Skid steer tool carrier system Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Loader Lift Capacity (Full Height) 3609 lb 3,225 lb (measured at pivot) ▶ Transmission & DrivetrainClutch Power shuttle with wet clutch and torsional damper Dual clutch, 11 in (PowrReverser) No. of Speeds 15F / 15R 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) Transmission Type Full Synchro Mesh Speed and Constant Mesh Range SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional) Max Travel Speed (Forward) 21.4 mph 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) Max Travel Speed (Reverse) Not Published 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) Differential Lock & Limited Slip Options Not Published Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Oil immersed brakes, lever actuated parking brake Hydraulically actuated wet disk brakes (oil-immersed) Steering Hydrostatic power steering with tiltable steering column Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type Not Published 2WD (standard) or MFWD (optional) Drawbar Capacity Not Published 1,675 lb (fully extended); 2,470 lb (short position) Front Axle Rating Not Published Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) Seat Suspension & Adjustability Not Published Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment ▶ Dimensions & ManeuverabilityWheelbase 87.4 in 80.7 in Overall Width 82 in Not Published Ground Clearance 15.5 in Not Published Height to Top of ROPS 106 in Not Published Height to Top of Cab Model Not Applicable Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 13.5 ft (4.1 m) 137.8 in (2WD); 183.1 in (4WD); 153.5 in (4WD, Carraro axle) Overall Length with 3-Point Hitch 152.7 in 143.3 in
