Mahindra 6065 | Side-by-side comparison | ITC Resource Center
Compare Tractors

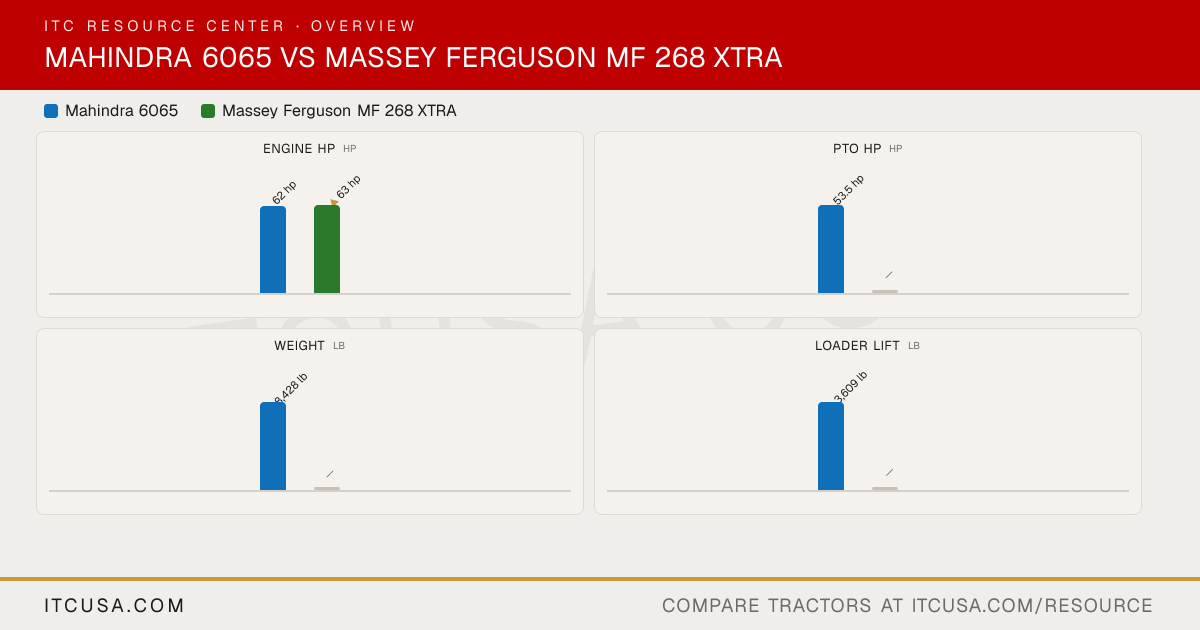

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
2 of 4 selected
n/a
Mahindra6065
n/a
MasseyFergusonMF268XTRA
Comparison loaded for 2 tractors.
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra6065
Engine Manufacturer
Mahindra
Engine Model
VNEM 363
Engine Type
Four stroke, turbocharged, intercooled, common rail direct injection, water cooled diesel, comply with US Tier-4 Final
No. of Cylinders
3
Displacement
161.7 in³
Rated Engine Speed
2100 rpm
Engine Power (Gross)
62 hp
PTO Power
53.5 hp
Engine Emissions Constraints
Tier 4
Cooling System Type
Water-cooled
Air Cleaner
Not Published
Fuel System
Common rail direct injection
Alternator
Power Shuttle: 55 A; Power Shuttle Cab: 140 A; Shuttle: 55 A
Pump Type
Not Published
Implement Flow
11.1 gpm
Steering Flow
4.6 gpm
Total Hydraulic Flow
15.7 gpm
Overall Hydraulic Pump Flow
15.7 gpm
Hydraulic System Type
Open center with position and draft control, telescoping stabilizers and flex links
Rear Remote Hydraulic Flow
Not Published
No. of Standard Remote Valves
2
No. of Optional Remote Valves
1
Fuel Tank Capacity
23.8 gal
Coolant Capacity
Not Published
Crankcase Capacity
Not Published
Transmission / Hydraulic System Capacity
Not Published
Front Axle Fluid Capacity
Not Published
PTO Type
2 speed independent push button type 1 PTO (wet clutch)
PTO Rear
540 @ 1993 rpm and 540E @ 1469 rpm
Mid-PTO Availability
Not Published
Category, 3-Point Hitch
CAT I & II
Hitch Lift Capacity
Not Published
Hitch Lift Capacity (at 24”)
5952 lb
Lift Control Type
Position and draft control
Transmission Type
Full synchro mesh speed and constant mesh range
No. of Speeds
15F / 15R
Max Travel Speed (Forward)
21.4 mph
Max Travel Speed (Reverse)
Not Published
Clutch
Power shuttle with wet clutch and torsional damper
Differential Lock & Limited Slip Options
Not Published
Frame Type
Not Published
Steering
Hydrostatic power steering with tiltable steering column
Brakes
Oil immersed brakes, lever actuated parking brake
Seat Suspension & Adjustability
Suspension seat with foldable armrests
Front Axle Type
Not Published
Front Axle Rating
Not Published
Drawbar Capacity
Not Published
Overall Length with 3-Point Hitch
152.7 in
Overall Width
82 in
Wheelbase
87.4 in
Ground Clearance
15.5 in
Min. Turn Radius without Brakes
12.5 ft
Height to Top of ROPS
106 in
Height to Top of ROPS (folded)
Not Published
Height to Top of Cab Model
115 in
Tractor Weight (Base)
6,548 lb (6065 Power Shuttle); 7,495 lb (6065 Power Shuttle Cab); 6,416 lb (6065 Shuttle)
