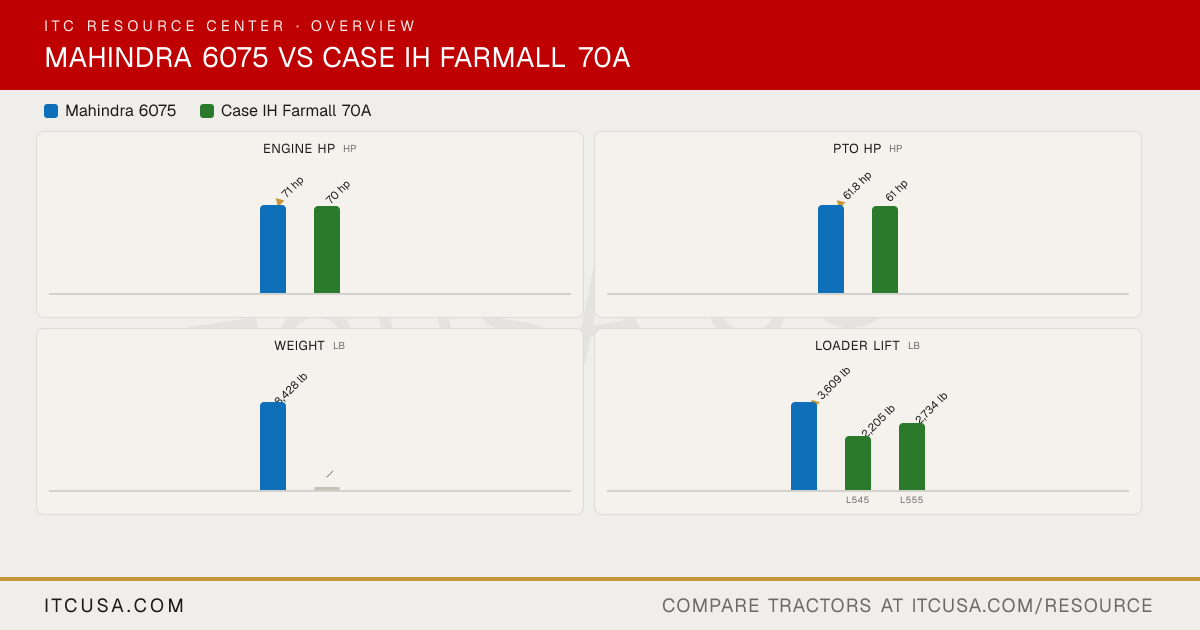

▶ EngineEngine Manufacturer Mahindra FPT Engine Model VNEM 373 R 753 IE4 Engine Type Four stroke, turbocharged, intercooled, common rail direct injection, water cooled diesel, comply with US Tier-4 Final 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 3 3 Displacement 161.7 in³ 135.9 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 71 hp 70 hp PTO Power 61 hp 62 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Not Published Dry Fuel System Common rail direct injection Electronic high pressure common rail Alternator Power Shuttle: 55 A; Power Shuttle Cab: 140 A 75 A ▶ HydraulicsPump Type Not Published Engine-driven dual gear-type Implement Flow 11.1 gpm 11.9 gpm Steering Flow 4.6 gpm 5.5 gpm Total Hydraulic Flow 15.7 gpm 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow 15.7 gpm Not Published Hydraulic System Type Open center with position and draft control, telescoping stabilizers and flex links Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 1 2 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 17.2 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type 2 speed independent push button type 1 PTO (wet clutch) Independent PTO Rear 540 @ 1993 rpm and 540E @ 1469 rpm 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I & II Category I/II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5952 lb 2,701 lb Lift Control Type Position and draft control Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Full synchro mesh speed and constant mesh range 8x8 mechanical shuttle (dry clutch) No. of Speeds 15F / 15R 8F/8R Max Travel Speed (Forward) 21.4 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Power shuttle with wet clutch and torsional damper Dry clutch Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering with tiltable steering column Hydrostatic Brakes Oil immersed brakes, lever actuated parking brake Wet disc Seat Suspension & Adjustability Suspension seat with foldable armrests Contoured seat, adjustable Front Axle Type Not Published 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 152.7 in 2WD: 129.5 in; MFD: 134.0 in Overall Width 82 in 67.5 in Wheelbase 87.4 in 2WD: 77.5 in; MFD: 77.7 in Ground Clearance 15.5 in Not Published Min. Turn Radius without Brakes 12.5 ft 2WD: 135.8 in; MFD: 190.9 in Height to Top of ROPS 106 in 2WD: 92.7 in; MFD: 97.4 in Height to Top of ROPS (folded) Not Published 77 in Height to Top of Cab Model 115 in Not Published ▶ WeightTractor Weight (Base) 6,548 lb (6075 Power Shuttle); 7,495 lb (6075 Power Shuttle Cab) 2WD: 4,442 lb; MFD: 5,060 lb Weight with ROPS and Loader 8428 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R4 Industrial R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD R1 Agricultural - Front 11.2 x 24 2WD: 7.5x16; MFD: 8.3x24 R1 Agricultural - Rear 16.9 x 30 13.6x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 43 x 16-20 MFD: 12.5x18 R4 Industrial - Rear 18.4-28 MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer attachment system Compatible loaders: L545, L555 Loader Model Loader 6075L: open station; Loader 6075CL: cab L545; L555 Loader Lift Height Loader 6075L: 133 in; Loader 6075CL: 133 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) Loader 6075L: 3,550 lb; Loader 6075CL: 3,550 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force Loader 6075L: 5,000 lb; Loader 6075CL: 5,000 lb L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage 5-year limited powertrain warranty Not Published
