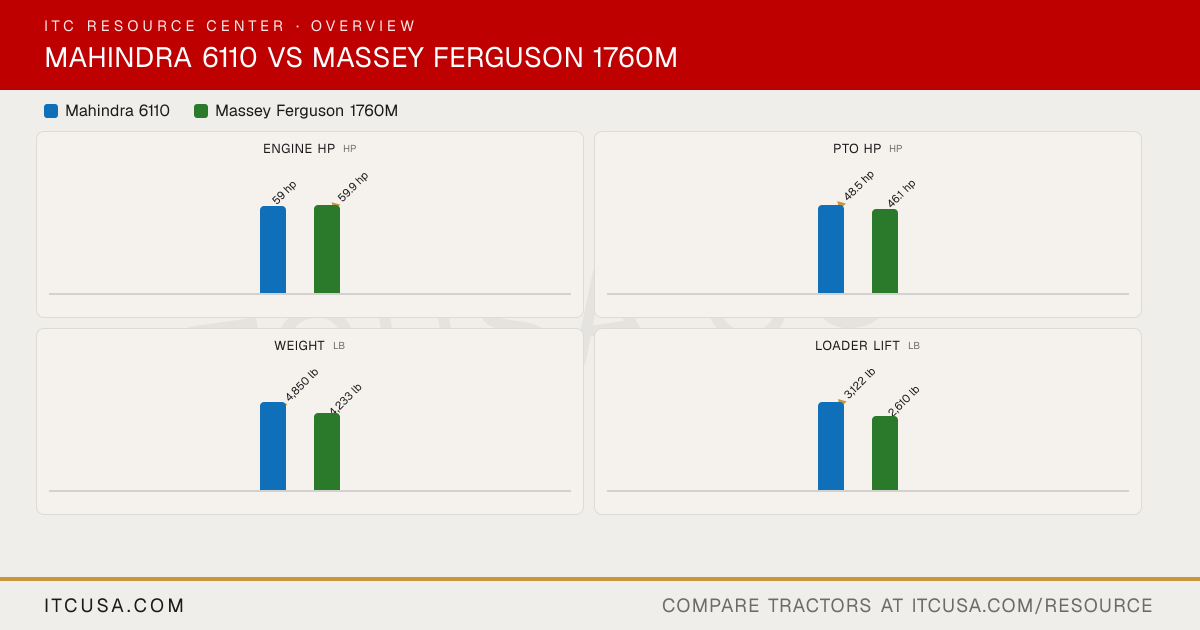

▶ EngineEngine Manufacturer Daedong Shibaura Engine Model Not Published N4LDI-TA Engine Type Turbo-charged, indirect injection 4-cylinder turbocharged intercooled diesel, liquid-cooled No. of Cylinders 4 4 Displacement 148.6 in³ 135.2 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 59 hp 59.9 hp PTO Power 48.5 hp Mech: 46.1 hp; HST: 44.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry Fuel System Not Published Common rail direct injection Alternator 50 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Engine-driven gear-type pump Implement Flow 11 gpm Not Published Steering Flow 5.4 gpm Not Published Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm Hydraulic System Type Open Center with position and draft control Open center Rear Remote Hydraulic Flow Not Published 12.1 gpm No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 3 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 18.5 gal 14 gal Coolant Capacity Not Published 7.08 qt Crankcase Capacity Not Published 6.87 qt Transmission / Hydraulic System Capacity Not Published Power Shuttle: 11.35 gal; HST: 9.25 gal Front Axle Fluid Capacity Not Published 9 qt ▶ PTO & HitchPTO Type Independent Independent, with soft-start feature PTO Rear 540 rpm @ 2600 rpm 540 rpm (6-spline) Mid-PTO Availability Not Published Optional, 2,000 rpm (not offered with the 12x12 power shuttle) Category, 3-Point Hitch Category 2, with telescopic check chains Category I with extendable ball ends Hitch Lift Capacity 3,527 lb Not Published Hitch Lift Capacity (at 24”) Not Published 12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb Lift Control Type Position and draft control Draft control optional ▶ Transmission & DrivetrainTransmission Type Sync, shuttle w/ part synchromesh 12 x 12 power shuttle or 3-range hydrostatic No. of Speeds 12F / 12R 12 x 12 Power Shuttle (3 ranges, 4 gears); HST: 3-range, infinite speeds in each range Max Travel Speed (Forward) 20.0 mph Not Published Max Travel Speed (Reverse) 20.5 mph Not Published Clutch Single plate, dry Multiple stage wet type Differential Lock & Limited Slip Options Not Published Mechanical engagement via right side heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic/Tiltable Power steering Brakes Wet Disc Internal wet disc brakes, independent foot pedals Seat Suspension & Adjustability Not Published Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering Front Axle Type Not Published Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 71.5 in 12x12 Power Shuttle: 71.1 in; HST: 65.4 in Wheelbase Not Published 12x12 Power Shuttle: 80.3 in; HST: 77.9 in Ground Clearance Not Published 14.8 in Min. Turn Radius without Brakes 12.5 ft Not Published Height to Top of ROPS Not Published 12x12 Power Shuttle: 103.2 in; HST: 102.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 99.2 in 12x12 Power Shuttle: 93.3 in; HST: 92.9 in Overall Length 141.3 in HST: 132.3 in ▶ WeightTractor Weight (Base) 4,850 lb (operating weight) 12x12 Power Shuttle: 4,233 lb (ROPS base weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published AG, Turf, Industrial, Snow R1 Agricultural - Front 9.5x20 9.5x16 R1 Agricultural - Rear 14.9x28 16.9x26 R3 Turf - Front LSW305-521 27x10.50-15 R3 Turf - Rear LSW570-648 44x18.00-20 R4 Industrial - Front 10.5/80x18 12-16.5 R4 Industrial - Rear 18.4x24 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published DL135: Skid steer quick attach Loader Model ML161 DL135 Loader Lift Height ML161: 115.4 in DL135: 111 in (at pivot pin) Loader Lift Capacity (Full Height) ML161: 3,122 lb (at pivot pin) DL135: 2,610 lb (at pivot pin, full height) Loader Breakout Force ML161: 5,225 lb (at pivot pin) DL135: 4,000 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Five-year powertrain warranty
