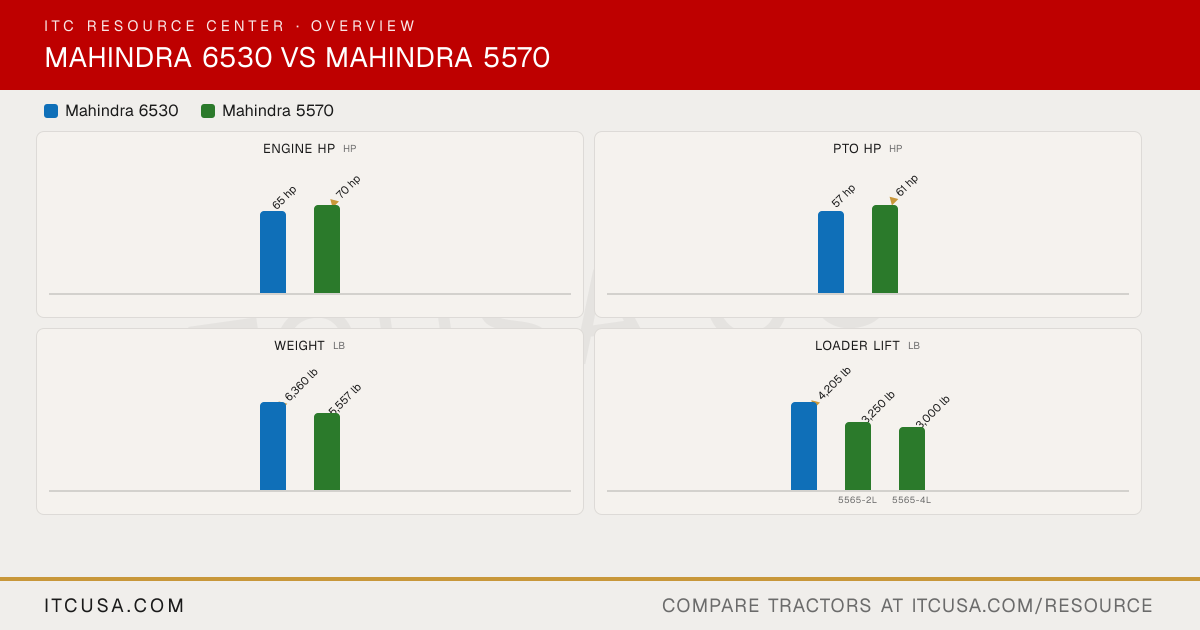

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published Not Published Engine Type Four stroke, direct injection, water-cooled, diesel Four stroke, direct injection, turbo-charged and intercooled diesel No. of Cylinders 3 3 Displacement 215.5 in³ 161.5 in³ Rated Engine Speed 2200 rpm 2100 rpm Engine Power (Gross) 65 hp 70 hp PTO Power 57 hp 61 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Direct injection Direct injection, turbocharged and intercooled (mCRD common rail) Alternator 36 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.4 gpm 11.2 gpm Steering Flow 4.8 gpm 4.6 gpm Total Hydraulic Flow Not Published 15.8 gpm (11.2 + 4.6, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open centre, full-live hydraulic with position and draft controls Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 standard 2 No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 17.1 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2058 rpm 540 rpm @ 2059 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1 & 2 with telescopic check chains CAT I and II with telescopic stabilizers Hitch Lift Capacity 3968 lb 3968 lb Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Forward-reverse synchro-shuttle with full synchromesh gearshift Constant mesh with forward/reverse synchro shuttle No. of Speeds 8F/8R 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dual Dual dry with cerametallic lining Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145 in 138.3 in (5570 2WD); 145 in (5570 4WD) Overall Width 81 in 77.3 in (5570 2WD); 81 in (5570 4WD) Wheelbase Not Published Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 13.75 ft 14 ft (5570 2WD); 15.7 ft (5570 4WD) Height to Top of ROPS Not Published 103.3 in (5570 2WD); 99.7 in (5570 4WD) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 6360 lb 5557 lb (5570 2WD); 6302 lb (5570 4WD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Ag (5570 2WD); Ag, Industrial (5570 4WD) R1 Agricultural - Front Not Published 9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD) R1 Agricultural - Rear Not Published 16.9x28 (5570 2WD); 16.9x30 (5570 4WD) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80x18 12.5/80x18 (5570 4WD) R4 Industrial - Rear 19.5Lx24 16.9x24 (5570 4WD) ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model ML3070 5565-2L (5570 2WD); 5565-4L (5570 4WD) Loader Lift Height ML3070: 126 in 5565-2L: 123 in; 5565-4L: 128 in Loader Lift Capacity (Full Height) ML3070: 4205 lb 5565-2L: 3,250 lb; 5565-4L: 3,000 lb Loader Breakout Force ML3070: 6807 lb 5565-2L: 5,300 lb; 5565-4L: 4,825 lb ▶ WarrantyWarranty Length & Coverage Not Published 5-year powertrain warranty
