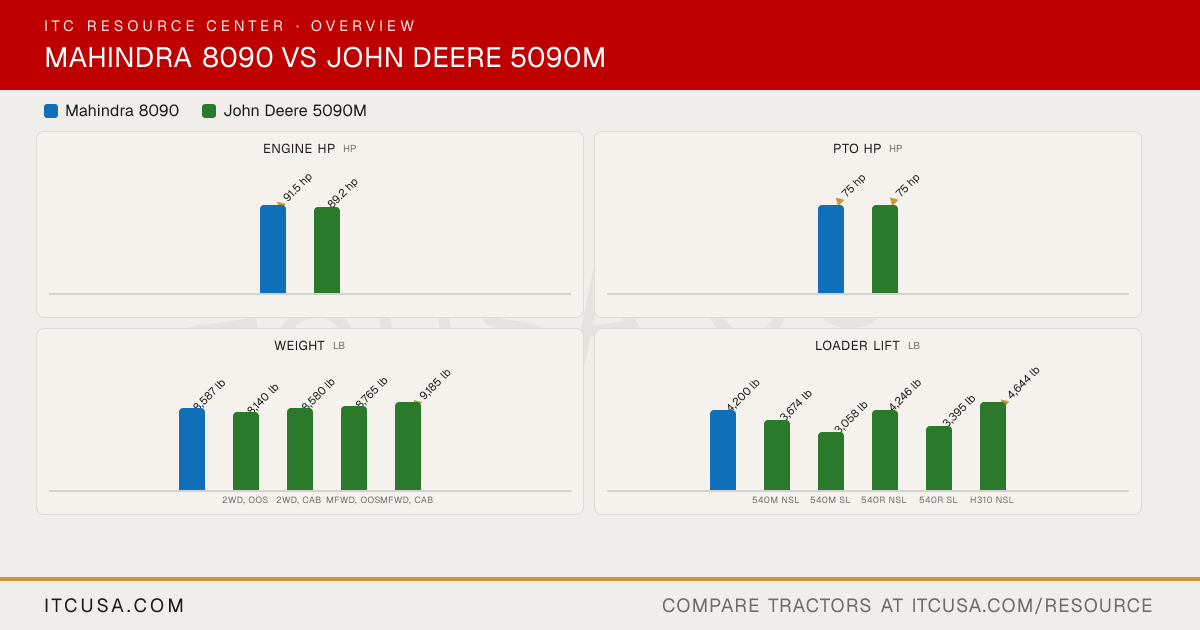

▶ EngineEngine Manufacturer Mahindra John Deere Engine Model Not Published PowerTech 4045 PWL Engine Type Four-stroke, turbocharged, direct injection, water-cooled diesel Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 4 4 Displacement 215.4 in³ 276 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 91.5 hp 89.2 hp PTO Power 75 hp 75 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Cool-Gard II coolant Air Cleaner Not Published Primary and secondary air cleaner elements Fuel System Common rail direct injection High pressure common rail; electronic fuel control Alternator 140 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Not Published Tandem gear pump Implement Flow 17 gpm 18.4 gpm Steering Flow 5.2 gpm 6.3 gpm Total Hydraulic Flow 22.2 gpm 24.7 gpm Overall Hydraulic Pump Flow 22.2 gpm 24.7 gpm Hydraulic System Type Open center with position and draft control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 (rear, Dual SCV) No. of Optional Remote Valves 3rd valve optional Up to 1 additional rear valve (3 total with Triple SCV); up to 3 mid SCVs (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity 25.9 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity Not Published OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity Not Published 3.4 gal Transmission / Hydraulic System Capacity Not Published 10.4 gal Front Axle Fluid Capacity Not Published Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type 2-speed independent single lever PTO Independent rear PTO, electro-hydraulic actuation: 540/540E standard, 540/540E/1000 optional PTO Rear 540/1000 rpm 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT II with telescoping stabilizers & flex links Category II (convertible to I) Hitch Lift Capacity 5,500 lb 5,305 lb; 6,114 lb, at hitch ball throughout lift range Hitch Lift Capacity (at 24”) Not Published 5,159 lb standard; 5,954 lb optional Lift Control Type Position and draft control Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type Full synchro mesh with forward/reverse power shuttle and constant-mesh range PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12F / 12R 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Power shuttle with torsional damper (wet) Wet Differential Lock & Limited Slip Options Not Published Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Steel frame Cast iron mid-frame Steering Power steering Not Published Brakes Oil-immersed brakes, 7-in disc, mechanically actuated Not Published Seat Suspension & Adjustability Seat with integrated folding armrests, recline, and air-suspension standard OOS: isolated mechanical seat, mechanical seat, or air suspension seat (fore/aft, weight and lumbar adjustment); Cab: mechanical suspension seat or air suspension seat; adjustable weight range 88-330 lb Front Axle Type Not Published MFWD (standard); 2WD (optional) Front Axle Rating Not Published 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Width 83 in Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 95.6 in 92.5 in Ground Clearance 14.1 in Not Published Min. Turn Radius without Brakes 15.5 ft Not Published Height to Top of ROPS Not Published 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 111.2 in 102.9 in Overall Length 176.6 in 149.5 in (including draft links) ▶ WeightTractor Weight (Base) 8,587 lb 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 12.4 x 24 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 18.4 x 30 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer style quick attach Not Published Loader Model 8100CL 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height 8100CL: 139 in 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) 8100CL: 4,200 lb (at pivot pin) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force 8100CL: 6,050 lb 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
