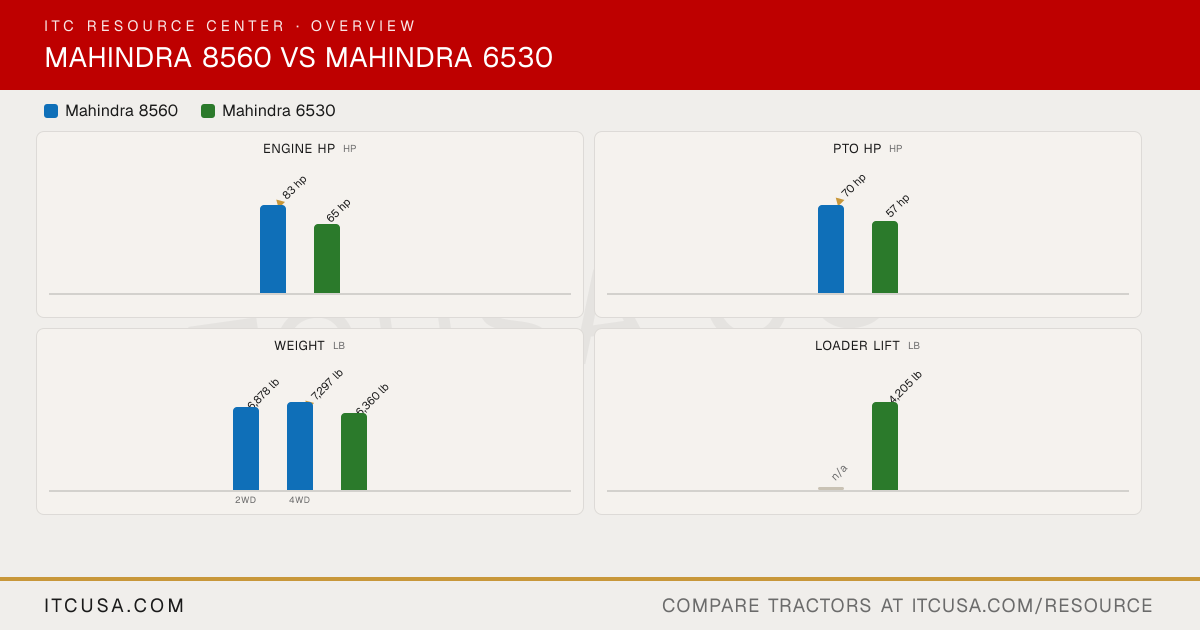

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model NE 479 TCI Not Published Engine Type Four Stroke, Turbo Charged, Intercooled, Direct Injection, Water Cooled Diesel Engine Four stroke, direct injection, water-cooled, diesel No. of Cylinders 4 3 Displacement 203.2 in³ 215.5 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 83 hp 65 hp PTO Power 70 hp 57 hp Engine Emissions Constraints Tier 3 Not Published Cooling System Type Not Published Not Published Air Cleaner Dry type with safety cartridge & dust unloader valve Not Published Fuel System Rotary FIP with KSB Unit MICO (BOSCH) Direct injection Alternator 55 A, 12 V 36 A, 12 V ▶ HydraulicsPump Type Independent fully 'live' hydraulic pump Not Published Implement Flow 17 gpm 11.4 gpm Steering Flow 5.3 gpm 4.8 gpm Total Hydraulic Flow 22.3 gpm Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Independent fully live hydraulic pump with Vary-Touch draft and position controls Open centre, full-live hydraulic with position and draft controls Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 standard No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 19.28 gal 17.1 gal Coolant Capacity 2.58 gal Not Published Crankcase Capacity 9.48 qt Not Published Transmission / Hydraulic System Capacity 8.59 gal Not Published Front Axle Fluid Capacity 1.79 gal Not Published ▶ PTO & HitchPTO Type Rear independent PTO shaft Independent PTO Rear Not Published 540 rpm @ 2058 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II ball joints with adjustable outside lateral stabilizer Category 1 & 2 with telescopic check chains Hitch Lift Capacity 5500 lb 3968 lb Hitch Lift Capacity (at 24”) 3850 lb Not Published Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Not Published Forward-reverse synchro-shuttle with full synchromesh gearshift No. of Speeds 12F / 12R 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry Dual Clutch (normally disengaged PTO clutch) Dual Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic (Power Steering) Hydrostatic power Brakes Oil immersed, foot operated, independent with interlock for simultaneous operation; hand brake for parking Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 162.04 in 145 in Overall Width 77.3 in 81 in Wheelbase 2WD: 85.31 in; 4WD: 85.8 in Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 2WD: 157 in; 4WD: 180 in 13.75 ft Height to Top of ROPS 2WD: 89.5 in; 4WD: 94.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2WD: 6878 lb; 4WD: 7297 lb 6360 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80x18 R4 Industrial - Rear Not Published 19.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model Not Published ML3070 Loader Lift Height Not Published ML3070: 126 in Loader Lift Capacity (Full Height) Not Published ML3070: 4205 lb Loader Breakout Force Not Published ML3070: 6807 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
