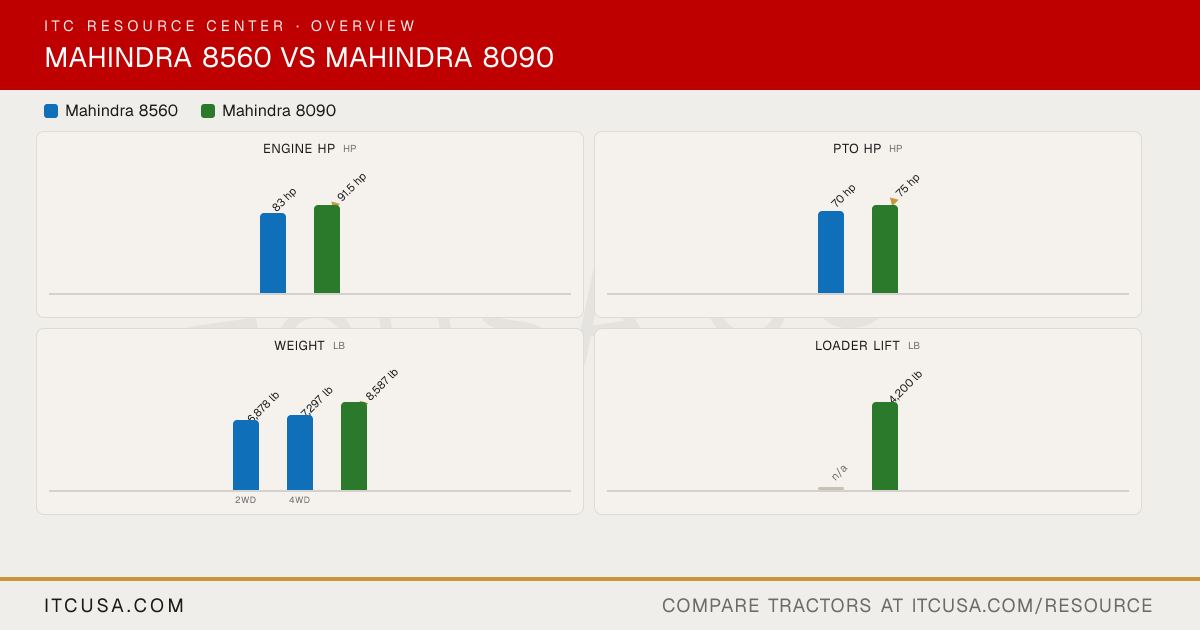

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model NE 479 TCI Not Published Engine Type Four Stroke, Turbo Charged, Intercooled, Direct Injection, Water Cooled Diesel Engine Four-stroke, turbocharged, direct injection, water cooled diesel No. of Cylinders 4 4 Displacement 203.2 in³ 215.4 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 83 hp 91.5 hp PTO Power 70 hp 75 hp Engine Emissions Constraints Tier 3 Tier 4 Cooling System Type Not Published Water-cooled Air Cleaner Dry type with safety cartridge & dust unloader valve Not Published Fuel System Rotary FIP with KSB Unit MICO (BOSCH) Common rail direct injection Alternator 55 A, 12 V 140 A ▶ HydraulicsPump Type Independent fully 'live' hydraulic pump Not Published Implement Flow 17 gpm 17 gpm Steering Flow 5.3 gpm 5.2 gpm Total Hydraulic Flow 22.3 gpm 22.2 gpm Overall Hydraulic Pump Flow Not Published 22.2 gpm Hydraulic System Type Independent fully live hydraulic pump with Vary-Touch draft and position controls Open center with position and draft control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 19.28 gal 25.9 gal Coolant Capacity 2.58 gal Not Published Crankcase Capacity 9.48 qt Not Published Transmission / Hydraulic System Capacity 8.59 gal Not Published Front Axle Fluid Capacity 1.79 gal Not Published ▶ PTO & HitchPTO Type Rear independent PTO shaft 2-speed independent single lever PTO PTO Rear Not Published 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II ball joints with adjustable outside lateral stabilizer CAT II with telescoping stabilizers & flex links Hitch Lift Capacity 5500 lb 5500 lb (measuring point not stated by Mahindra) Hitch Lift Capacity (at 24”) 3850 lb Not Published Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Not Published Full synchro mesh with forward/reverse power shuttle & constant mesh range No. of Speeds 12F / 12R 12F / 12R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry Dual Clutch (normally disengaged PTO clutch) Power shuttle with torsional damper (wet) Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Steel frame Steering Hydrostatic (Power Steering) Power steering Brakes Oil immersed, foot operated, independent with interlock for simultaneous operation; hand brake for parking Oil immersed brakes, 7-in disc diameter, mechanically actuated Seat Suspension & Adjustability Not Published mComfort seat with integrated foldable armrests, recline feature and standard air suspension Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 162.04 in 176.6 in Overall Width 77.3 in 83 in Wheelbase 2WD: 85.31 in; 4WD: 85.8 in 95.6 in Ground Clearance Not Published 14.1 in Min. Turn Radius without Brakes 2WD: 157 in; 4WD: 180 in 15.5 ft Height to Top of ROPS 2WD: 89.5 in; 4WD: 94.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 111.2 in ▶ WeightTractor Weight (Base) 2WD: 6878 lb; 4WD: 7297 lb 8587 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4 x 24 R1 Agricultural - Rear Not Published 18.4 x 30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid steer style quick attach Loader Model Not Published 8100CL Loader Lift Height Not Published 8100CL: 139 in Loader Lift Capacity (Full Height) Not Published 8100CL: 4,200 lb Loader Breakout Force Not Published 8100CL: 6,050 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
