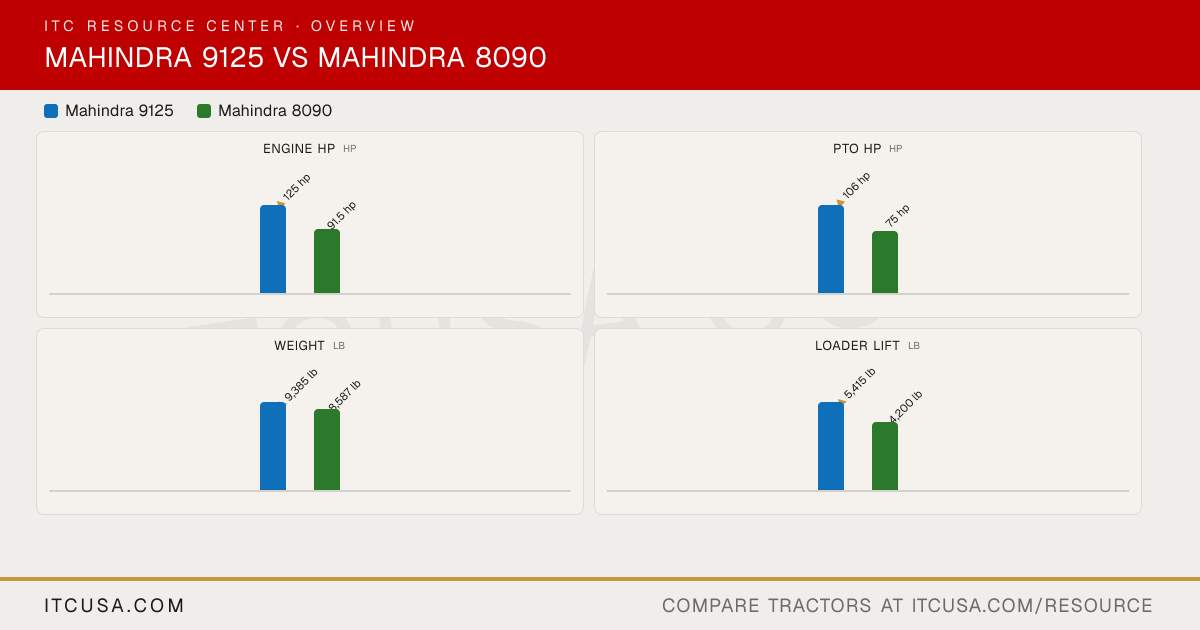

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published Not Published Engine Type 4-cylinder, liquid-cooled inline diesel Four-stroke, turbocharged, direct injection, water-cooled diesel No. of Cylinders 4 4 Displacement 215.6 in³ 215.4 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 125 hp 91.5 hp PTO Power 106 hp 75 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Not Published Fuel System Common Rail Diesel Technology (mCRD) Common rail direct injection Alternator Not Published 140 A ▶ HydraulicsPump Type Not Published Not Published Implement Flow 21.2 gpm 17 gpm Steering Flow 9.25 gpm 5.2 gpm Total Hydraulic Flow Not Published 22.2 gpm Overall Hydraulic Pump Flow Not Published 22.2 gpm Hydraulic System Type Open center, position and draft control, telescoping stabilizers and flex links Open center with position and draft control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (9125 S); 3 (9125 P) 2 No. of Optional Remote Valves One (3rd outlet on S models; 4th outlet on P model) 3rd valve optional ▶ Fluid CapacityFuel Tank Capacity Not Published 25.9 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent 2-speed independent single lever PTO PTO Rear 540 @ 2220 rpm, 1000 @ 2227 rpm (9125 S); 540 @ 2220 rpm, 750 @ 2208 rpm, 1000 @ 2227 rpm (9125 P) 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II with telescopic link ends CAT II with telescoping stabilizers & flex links Hitch Lift Capacity Not Published 5,500 lb Hitch Lift Capacity (at 24”) 5,787 lb (9125 S); 7,628 lb (9125 P) Not Published Lift Control Type Electronic draft control with fender switches Position and draft control ▶ Transmission & DrivetrainTransmission Type Power shuttle with synchromesh Full synchro mesh with forward/reverse power shuttle and constant-mesh range No. of Speeds 12F / 12R (9125 S); 24F / 24R + 8 creepers (9125 P) 12F / 12R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Power shuttle with torsional damper (wet) Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Steel frame Steering Power steering Power steering Brakes Wet disc Oil-immersed brakes, 7-in disc, mechanically actuated Seat Suspension & Adjustability Seat with adjustable air-suspension, folding adjustable armrest, recline and adjustable headrest Seat with integrated folding armrests, recline, and air-suspension standard Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 91.3 in 83 in Wheelbase Not Published 95.6 in Ground Clearance Not Published 14.1 in Min. Turn Radius without Brakes Not Published 15.5 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 107 in 111.2 in Overall Length 169.3 in 176.6 in ▶ WeightTractor Weight (Base) 9,385 lb 8,587 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4 x 24 R1 Agricultural - Rear Not Published 18.4 x 30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer style quick attach couplers Skid steer style quick attach Loader Model 9125L 8100CL Loader Lift Height 162 in 8100CL: 139 in Loader Lift Capacity (Full Height) 5,415 lb (at pivot pin) 8100CL: 4,200 lb (at pivot pin) Loader Breakout Force 6,874 lb (at pivot pin) 8100CL: 6,050 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
