Mahindra Max 26XLT vs Kubota L2501 | Side-by-side comparison | ITC Resource Center
Compare Tractors

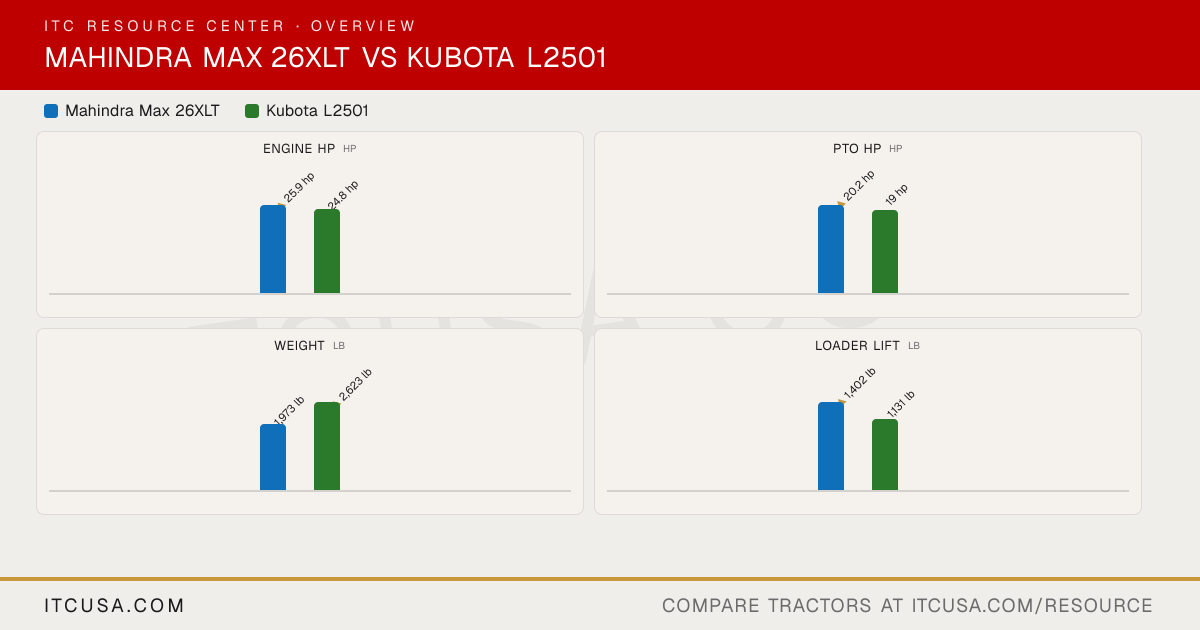

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
MahindraMax 26XLT
KubotaL2501
Engine Manufacturer
Mitsubishi
Kubota
Engine Model
S3L2
D1703-M-DI-E4
Engine Type
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders
3
3
Displacement
80.4 in³
100.47 in³
Rated Engine Speed
2500 rpm
2200 rpm
Engine Power (Gross)
25.9 hp
24.8 hp
PTO Power
20.2 hp
19 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water Cooled
Water-cooled
Air Cleaner
Not Published
Dry paper single element (dual optional)
Fuel System
Indirect Injection
Direct injection
Alternator
50 A, 12 V
40 A, 12 V
Pump Type
Not Published
Open center tandem pump, gear type
Implement Flow
5.8 gpm
5.15 gpm
Steering Flow
2.7 gpm
3.13 gpm
Total Hydraulic Flow
8.5 gpm
8.26 gpm
Overall Hydraulic Pump Flow
8.5 gpm
8.26 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Up to 3 (self canceling detent valve or float detent valve options)
Fuel Tank Capacity
6.1 gal
10.0 gal
Coolant Capacity
Not Published
6.3 qt
Crankcase Capacity
Not Published
6.0 qt
Transmission / Hydraulic System Capacity
Not Published
6.2 gal
Front Axle Fluid Capacity
Not Published
4.8 qt
PTO Type
Live
Live-continuous running
PTO Rear
540 @ 2376 rpm
540 rpm
Mid-PTO Availability
Optional; 2000 @ 2526 rpm
No mid-PTO offered
Category, 3-Point Hitch
CAT I
Category I
Hitch Lift Capacity
2315 lb
1918 lb
Hitch Lift Capacity (at 24”)
Not Published
1389 lb
Lift Control Type
Position Control
Position control
Transmission Type
HST - 2 ranges
Hydrostatic transmission (3-range)
No. of Speeds
Infinite
3-range
Max Travel Speed (Forward)
10.4 mph
11.5 mph
Max Travel Speed (Reverse)
Not Published
10.3 mph
Clutch
Dry - Single
Not Applicable
Differential Lock & Limited Slip Options
Not Published
Rear differential lock standard
Frame Type
Not Published
Not Published
Steering
Power Steering
Integral type power steering
Brakes
Wet disc
Wet disc type
Seat Suspension & Adjustability
Not Published
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Not Published
Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
2865 lb (at 43.1 in tread)
Drawbar Capacity
Not Published
730 lb
Overall Length with 3-Point Hitch
110 in
106.3 in (without 3-point hitch)
Overall Width
54.3 in
55.1 in
Wheelbase
63.2 in
63.3 in
Ground Clearance
11.4 in
13.4 in
Min. Turn Radius without Brakes
7.2 ft
8.2 ft (with brake applied)
Height to Top of ROPS
84.3 in
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
1973 lb
2623 lb
Weight with ROPS and Loader
2600 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural; R4 Industrial
R1 Agricultural - Front
7-12
7.2-16
R1 Agricultural - Rear
9.5-16
11.2-24
R3 Turf - Front
23x8.5-12
Not Published
R3 Turf - Rear
33x12.5-15
Not Published
R4 Industrial - Front
23x8.50-12
27X8.50-15
R4 Industrial - Rear
12-16.5
15-19.5
Quick Attach Loader System
Quick-Attach Adapter (included)
Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model
MXLT26L
LA525
Loader Lift Height
MXLT26L: 82.7 in
94.3 in
Loader Lift Capacity (Full Height)
MXLT26L: 1402 lb (at pivot pin)
1131 lb
Loader Breakout Force
MXLT26L: 2690 lb (at pivot pin)
2373 lbf
Warranty Length & Coverage
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
