Compare Tractors

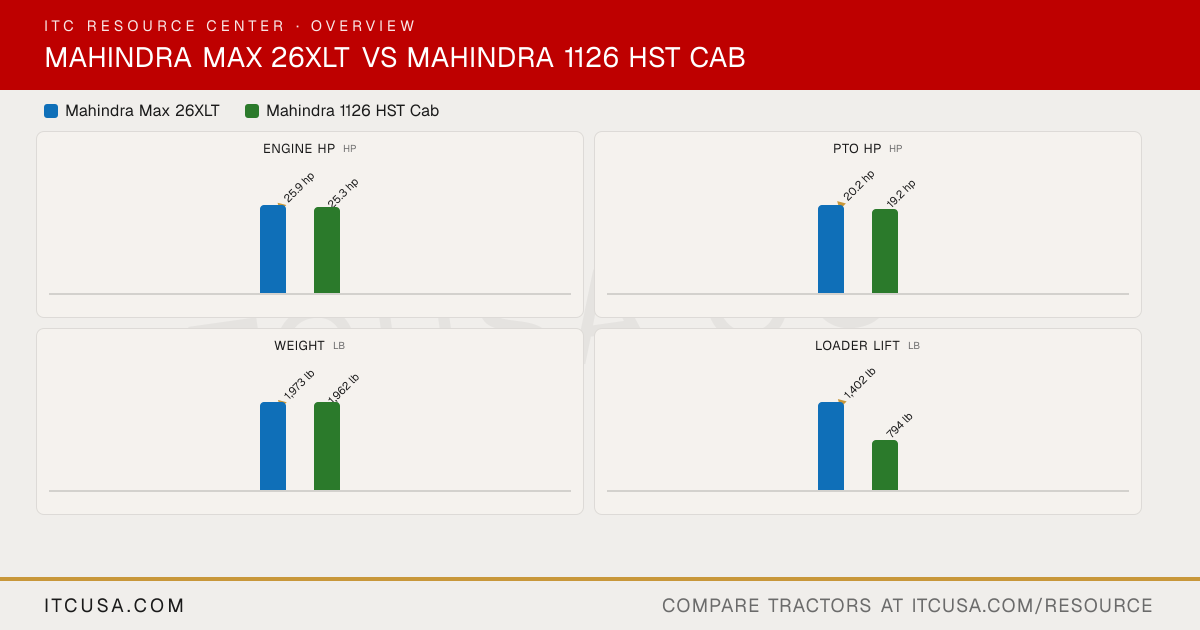

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
MahindraMax 26XLT
Mahindra1126 HST Cab
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Model
S3L2
MVL3E3
Engine Type
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
No. of Cylinders
3
3
Displacement
80.4 in³
67.2 in³
Rated Engine Speed
2500 rpm
3000 rpm
Engine Power (Gross)
25.9 hp
25.3 hp
PTO Power
20.2 hp
19.2 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water Cooled
Water-Cooled
Air Cleaner
Not Published
Not Published
Fuel System
Indirect Injection
Indirect Injection
Alternator
50 A, 12 V
55 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
5.8 gpm
7.6 gpm
Steering Flow
2.7 gpm
3.8 gpm
Total Hydraulic Flow
8.5 gpm
11.2 gpm
Overall Hydraulic Pump Flow
8.5 gpm
11.2 gpm
Hydraulic System Type
Open Center
Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Single or dual
Fuel Tank Capacity
6.1 gal
6.6 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Live
Independent Wet Clutch
PTO Rear
540 @ 2376 rpm
540 rpm @ 2837 rpm
Mid-PTO Availability
Optional; 2000 @ 2526 rpm
Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch
CAT I
CAT 1 with check chains
Hitch Lift Capacity
2315 lb
Not Published
Hitch Lift Capacity (at 24”)
Not Published
771 lb
Lift Control Type
Position Control
Position Control
Transmission Type
HST - 2 ranges
HST - 2 Range
No. of Speeds
Infinite
Infinite forward and reverse (2 ranges)
Max Travel Speed (Forward)
10.4 mph
7.3 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dry - Single
Not Published
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Power Steering
Hydrostatic Power Steering
Brakes
Wet disc
Single Pedal
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
110 in
100.4 in
Overall Width
54.3 in
46.3 in
Wheelbase
63.2 in
55.1 in
Ground Clearance
11.4 in
6.7 in
Min. Turn Radius without Brakes
7.2 ft
7.2 ft (with brake applied)
Height to Top of ROPS
84.3 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
80.5 in
Tractor Weight (Base)
1973 lb
1962 lb
Weight with ROPS and Loader
2600 lb
Not Published
Weight with Cab and Loader
Not Published
2368 lb
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
R3 Turf, R4 Industrial
R1 Agricultural - Front
7-12
Not Published
R1 Agricultural - Rear
9.5-16
Not Published
R3 Turf - Front
23x8.5-12
18x8.5-10
R3 Turf - Rear
33x12.5-15
26x12-12
R4 Industrial - Front
23x8.50-12
18x8.5-10
R4 Industrial - Rear
12-16.5
26x12-12
Quick Attach Loader System
Quick-Attach Adapter (included)
L11: Front loader skid-steer couplers for superfast hookups
Loader Model
MXLT26L
L11
Loader Lift Height
MXLT26L: 82.7 in
L11: 68 in
Loader Lift Capacity (Full Height)
MXLT26L: 1402 lb (at pivot pin)
L11: 794 lb
Loader Breakout Force
MXLT26L: 2690 lb (at pivot pin)
L11: 1433 lb
Warranty Length & Coverage
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
