Mahindra Max 26XLT vs Mahindra 2126 | Side-by-side comparison | ITC Resource Center
Compare Tractors

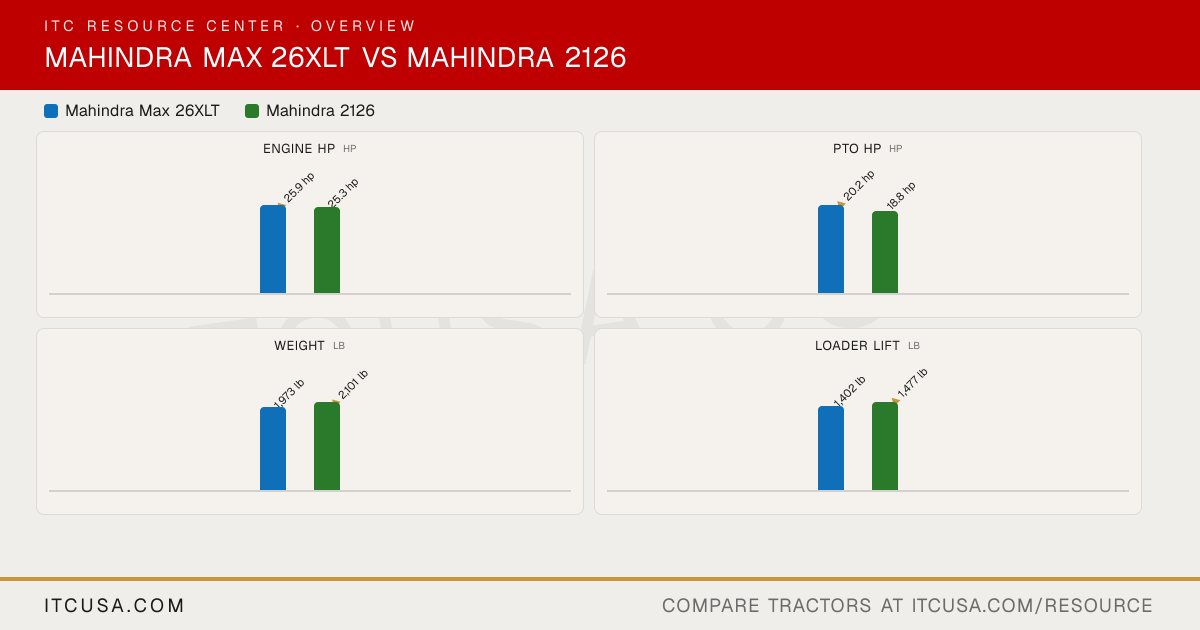

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Open center, full-live hydraulic with position control
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
1 or 2 (single or dual)
Fuel Tank Capacity
6.1 gal
5.8 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Live
Live
PTO Rear
540 @ 2376 rpm
540 rpm @ 2376 rpm
Mid-PTO Availability
Optional; 2000 @ 2526 rpm
Available; 2500 @ 2500
Category, 3-Point Hitch
CAT I
CAT I with Telescoping stabilizers
Hitch Lift Capacity
2315 lb
Not Published
Hitch Lift Capacity (at 24”)
Not Published
1760 lb
Lift Control Type
Position Control
Position Control
Transmission Type
HST - 2 ranges
HST
No. of Speeds
Infinite
Infinite / 3 Ranges
Max Travel Speed (Forward)
10.4 mph
11.2 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dry - Single
Not Published
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Power Steering
Hydrostatic Power Steering
Brakes
Wet disc
Two Pedal
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
2425 lb
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
110 in
112.7 in
Overall Width
54.3 in
54.4 in
Wheelbase
63.2 in
61.4 in
Ground Clearance
11.4 in
13.4 in
Min. Turn Radius without Brakes
7.2 ft
8.2 ft
Height to Top of ROPS
84.3 in
93.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
84.4 in
Tractor Weight (Base)
1973 lb
2101 lb (open station); 2607 lb (cab)
Weight with ROPS and Loader
2600 lb
2557 lb
Weight with Cab and Loader
Not Published
3063 lb
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
R3 Turf, R4 Industrial
R1 Agricultural - Front
7-12
Not Published
R1 Agricultural - Rear
9.5-16
Not Published
R3 Turf - Front
23x8.5-12
8.5x14
R3 Turf - Rear
33x12.5-15
13.5-16
R4 Industrial - Front
23x8.50-12
8.5x14
R4 Industrial - Rear
12-16.5
12.4-16
Quick Attach Loader System
Quick-Attach Adapter (included)
L21: Skid-steer couplers for superfast hookups
Loader Model
MXLT26L
L21 (55 in bucket)
Loader Lift Height
MXLT26L: 82.7 in
L21: 77 in
Loader Lift Capacity (Full Height)
MXLT26L: 1402 lb (at pivot pin)
L21: 1,477 lb
Loader Breakout Force
MXLT26L: 2690 lb (at pivot pin)
L21: 2,160 lb
Warranty Length & Coverage
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
