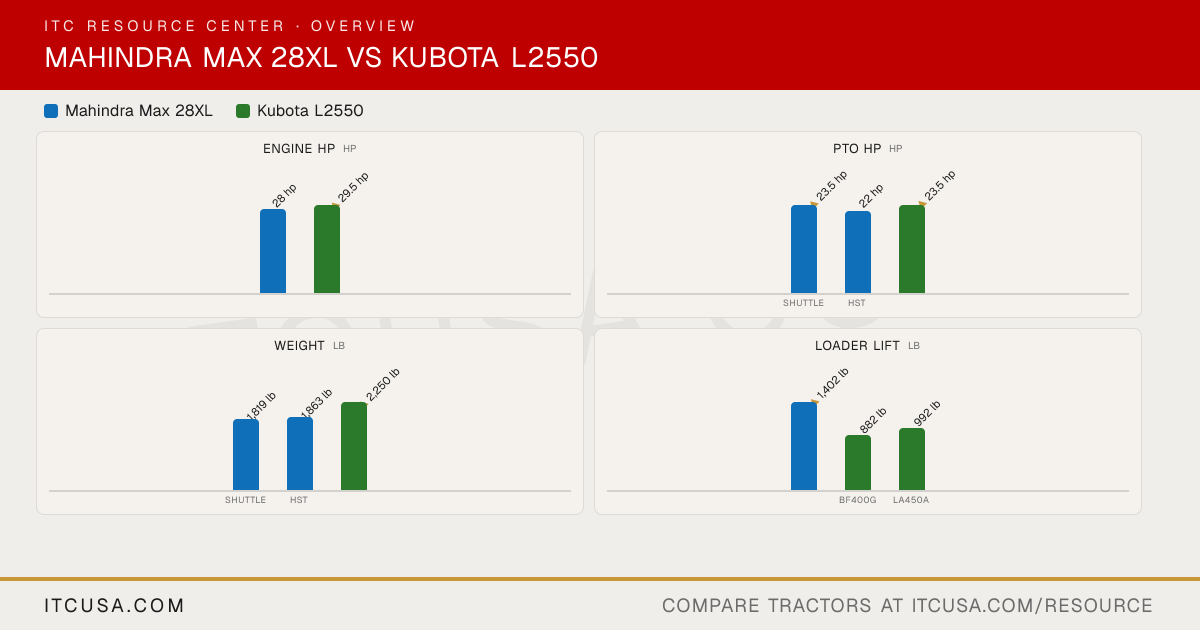

▶ EngineEngine Manufacturer Mitsubishi Kubota Engine Model S3L2 F (2WD), DT (4WD): D1402-DI-A; GST (4WD): D1402-DI-AE Engine Type Four stroke, indirect injection water-cooled, diesel Direct injection, vertical, water-cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 80.4 in³ 85.1 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 28 hp 29.5 hp PTO Power Shuttle: 23.5 hp; HST: 22 hp 23.5 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Not Published Water-cooled, pressurized radiator Air Cleaner Not Published Paper element Fuel System Indirect injection Direct injection Alternator 50 A, 12 V 35 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 4.6 gpm 6.8 gpm Steering Flow 2.7 gpm 2.8 gpm Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center, full live hydraulic with position control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 spool optional Up to 3 ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 7.7 gal Coolant Capacity Not Published 4.9 qt Crankcase Capacity Not Published 6.0 qt Transmission / Hydraulic System Capacity Not Published F (2WD), DT (4WD): 7.5 gal; GST (4WD): 7.1 gal Front Axle Fluid Capacity Not Published 6.8 qt (4WD) ▶ PTO & HitchPTO Type Trans Overrunning clutch on single clutch tractors; live PTO with dual clutch if equipped PTO Rear 540 rpm @ 2376 rpm 540/1000 rpm Mid-PTO Availability Optional, 2000 rpm @ 2526 rpm Optional mid-PTO, 1080/2000 rpm (USA No. 5, Kubota 10-tooth) Category, 3-Point Hitch Category 1, with check chains Category I Hitch Lift Capacity 2,205 lb 2,425 lb Hitch Lift Capacity (at 24”) Not Published 1,810 lb Lift Control Type Position control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Shuttle: Constant mesh on gear shift and synchro mesh on F/R shuttle; HST: HST - 2 ranges F (2WD), DT (4WD): 8F/8R mechanical shuttle; GST (4WD): 8F/8R Glide Shift No. of Speeds HST: Infinite; Shuttle: 8F / 8R 8F/8R Max Travel Speed (Forward) Not Published F (2WD), DT (4WD): 13.5 mph; GST (4WD): 13.3 mph Max Travel Speed (Reverse) Not Published F (2WD), DT (4WD): 12.2 mph; GST (4WD): 11.9 mph Clutch Single plate, dry F (2WD), DT (4WD): dry single plate or 2-plate (live PTO if equipped); GST (4WD): dry single plate Differential Lock & Limited Slip Options Not Published Rear differential lock (bevel gear differential) ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post ROPS Steering Hydrostatic Power F (2WD), DT (4WD): manual recirculating-ball, or integral power steering where fitted; GST (4WD): integral power steering Brakes Wet disc Wet disc type Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,100 lb ▶ Dimensions & ManeuverabilityOverall Width 54.3 in 51.4 in Wheelbase Not Published 64.6 in Ground Clearance Not Published F (2WD): 14.6 in; DT (4WD), GST (4WD): 13.6 in Min. Turn Radius without Brakes 6.6 ft 7.5 ft Height to Top of ROPS Not Published 79.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 109.3 in 109.1 in (without 3-point hitch) ▶ WeightTractor Weight (Base) Shuttle: 1,819 lb (operating weight); HST: 1,863 lb (operating weight) F (2WD): 2,250 lb; DT (4WD): 2,470 lb; GST (4WD): 2,557 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Ag: 5.00-15 (2WD) or 7-16 (4WD) front, 11.2-24 rear R1 Agricultural - Front 7x12 F (2WD): 5.00-15; DT (4WD), GST (4WD): 7-16 R1 Agricultural - Rear 9.5x16 11.2-24 R3 Turf - Front 23x8.5-12 Not Published R3 Turf - Rear 33x12.5-16.5 Not Published R4 Industrial - Front 23x8.5-12 Not Published R4 Industrial - Rear 12x16.5 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style loader couplers Not Published Loader Model ML205 BF400G; LA450A Loader Lift Height ML205: 82.7 in BF400G: 93.7 in; LA450A: 95 in Loader Lift Capacity (Full Height) ML205: 1,402 lb (at pivot pins) BF400G: 882 lb; LA450A: 992 lb Loader Breakout Force ML205: 2,690 lb (at pivot pins) BF400G: 1,654 lbf; LA450A: 1,863 lbf ▶ WarrantyWarranty Length & Coverage Not Published Not Published
