Mahindra Max 28XL vs Mahindra Max 26XLT | Side-by-side comparison | ITC Resource Center
Compare Tractors

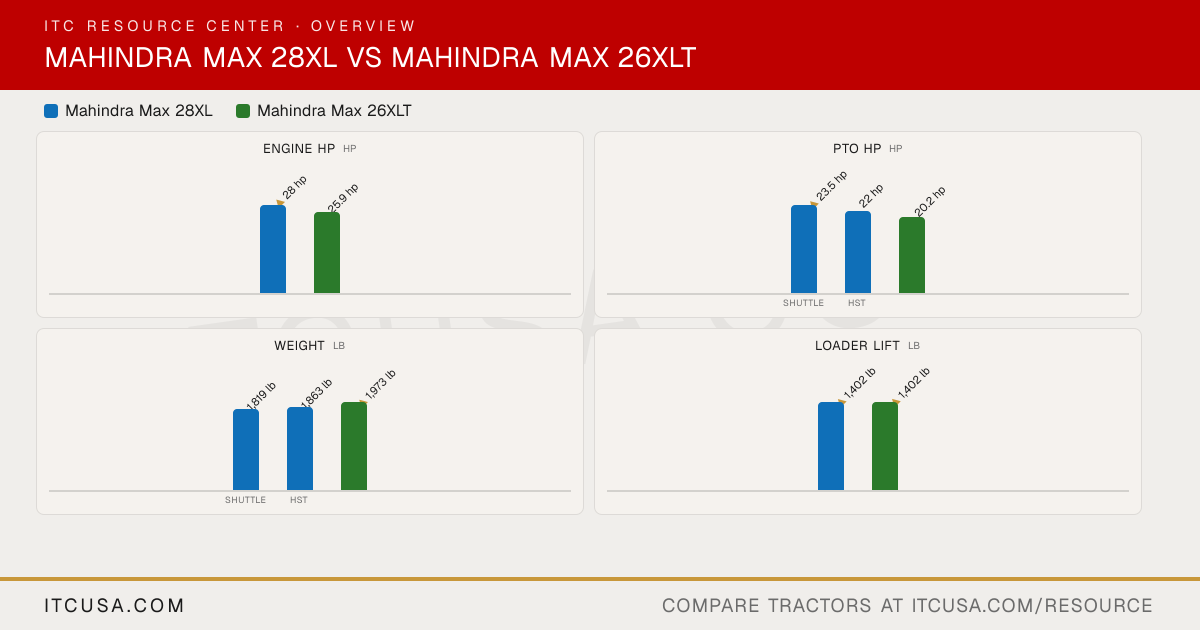

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
MahindraMax 28XL
MahindraMax 26XLT
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Model
S3L2
S3L2
Engine Type
Four stroke, indirect injection water-cooled, diesel
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
No. of Cylinders
3
3
Displacement
80.4 in³
80.4 in³
Rated Engine Speed
2600 rpm
2500 rpm
Engine Power (Gross)
28 hp
25.9 hp
PTO Power
Shuttle: 23.5 hp; HST: 22 hp
20.2 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Not Published
Water Cooled
Air Cleaner
Not Published
Not Published
Fuel System
Direct injection
Indirect Injection
Alternator
50 A, 12 V
50 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
4.6 gpm
5.8 gpm
Steering Flow
2.7 gpm
2.7 gpm
Total Hydraulic Flow
Not Published
8.5 gpm
Overall Hydraulic Pump Flow
Not Published
8.5 gpm
Hydraulic System Type
Open center, full live hydraulic with position control
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
1 spool optional
Not Published
Fuel Tank Capacity
6.1 gal
6.1 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Trans
Live
PTO Rear
540 rpm @ 2376 rpm
540 @ 2376 rpm
Mid-PTO Availability
Optional, 2000 rpm @ 2526 rpm
Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch
Category 1, with check chains
CAT I
Hitch Lift Capacity
2205 lb
2315 lb
Hitch Lift Capacity (at 24”)
Not Published
Not Published
Lift Control Type
Position control
Position Control
Transmission Type
Constant mesh on gear shift and synchro mesh on F/R shuttle
HST - 2 ranges
No. of Speeds
Infinite
Infinite
Max Travel Speed (Forward)
Not Published
10.4 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Single plate, dry
Dry - Single
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic Power
Power Steering
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
109.3 in
110 in
Overall Width
54.3 in
54.3 in
Wheelbase
Not Published
63.2 in
Ground Clearance
Not Published
11.4 in
Min. Turn Radius without Brakes
6.6 ft
7.2 ft
Height to Top of ROPS
Not Published
84.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
Shuttle: 1819 lb; HST: 1863 lb
1973 lb
Weight with ROPS and Loader
Not Published
2600 lb
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front
7x12
7-12
R1 Agricultural - Rear
9.5x16
9.5-16
R3 Turf - Front
23x8.5-12
23x8.5-12
R3 Turf - Rear
33x12.5-16.5
33x12.5-15
R4 Industrial - Front
23x8.5-12
23x8.50-12
R4 Industrial - Rear
12x16.5
12-16.5
Quick Attach Loader System
Skid-steer style loader couplers
Quick-Attach Adapter (included)
Loader Model
ML205 (named by both Mahindra spec sheets; a US listing calls the same loader the ML202)
MXLT26L
Loader Lift Height
ML205: 82.7 in
MXLT26L: 82.7 in
Loader Lift Capacity (Full Height)
ML205: 1402 lb
MXLT26L: 1402 lb (at pivot pin)
Loader Breakout Force
ML205: 2690 lb
MXLT26L: 2690 lb (at pivot pin)
Warranty Length & Coverage
Not Published
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
