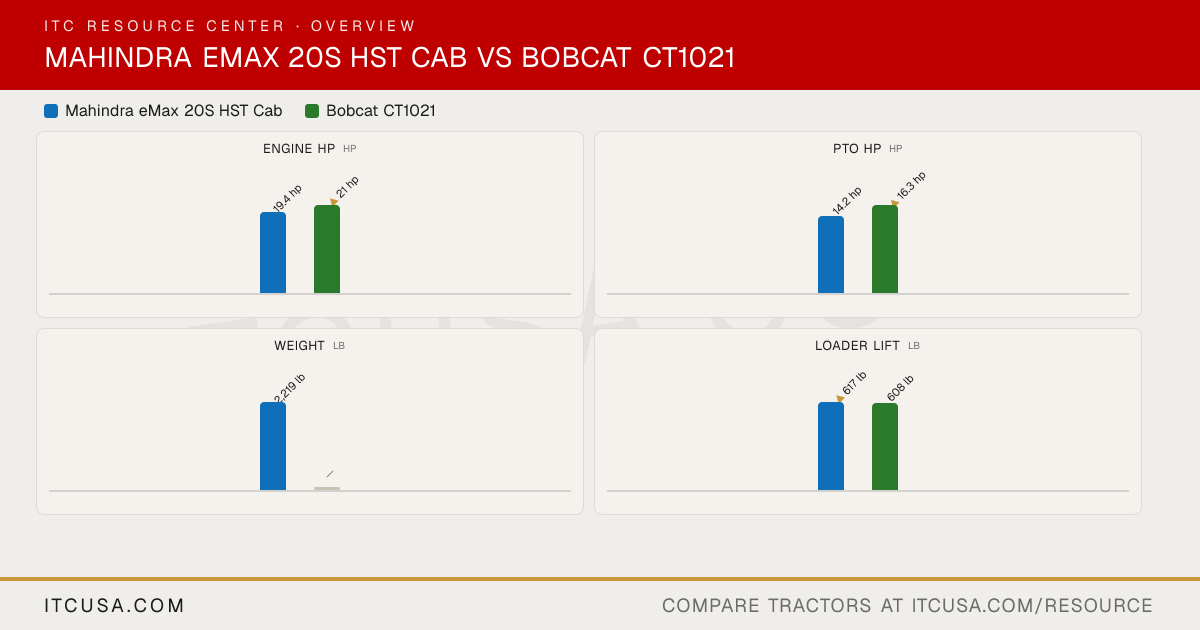

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Pump Type
Not Published
Gear
Steering Flow
2.1 gpm
N/A
Implement Flow
4.1 gpm
6.5 gpm (24.5 Lpm)
Total Hydraulic Flow
6.2 gpm
7.2 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
Not Published
NOT FOUND
Overall Hydraulic Pump Flow
6.2 gpm
7.2 gpm
No. of Optional Remote Valves
Not Published
1 Pair
No. of Standard Remote Valves
Not Published
1
PTO Rear
540 @ 2942 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position Control
Hydraulic Position Control System
Hitch Lift Capacity
Not Published
700 lb.
Mid-PTO Availability
Available; 2500 @ 2958 rpm
Standard: 2200 rpm
Category, 3-Point Hitch
CAT I Narrow with Check Chains
Category 1 Limited
Hitch Lift Capacity (at 24”)
680 lb
700 lb
R3 Turf - Rear
26X12-12
26X12.00-12
R3 Turf - Front
18X8.5-10
18X8.5-10
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R4 Industrial - Rear
26X12-12
26X12.00-12
R4 Industrial - Front
18X8.5-10
18X8.5-10
R1 Agricultural - Rear
26X12-12
26X12.00-12
R1 Agricultural - Front
18X8.5-10
18X8.5-10
Coolant Capacity
Not Published
2.0 (1.9) qts (L)
Crankcase Capacity
Not Published
5.2 (4.9) qts (L)
Fuel Tank Capacity
6.6 gal
6.7 gal.
Front Axle Fluid Capacity
Not Published
NOT FOUND
Transmission / Hydraulic System Capacity
Not Published
NOT FOUND
Loader Lift Height
71.3 in
71.9 in.
Loader Breakout Force
1235 lb
1554 lb.
Quick Attach Loader System
6.1 gal: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front-implement connection.
Standard Quick Attach Mounting System
Loader Lift Capacity (Full Height)
617 lb (at pivot pin)
608 lb.
Loader Model
—
FL6
Clutch
Dry-Single
Clutch-free (Hydrostatic)
No. of Speeds
Infinite / 2 ranges
2
Transmission Type
HST
2-Range HST
Max Travel Speed (Forward)
7.8 mph
11.1 mph (17.8 km/hr.)
Max Travel Speed (Reverse)
Not Published
7.6 mph (12.2 km/hr.)
Differential Lock & Limited Slip Options
Not Published
Std
Brakes
Wet Disc
Wet Multi-disc
Steering
Power Steering
Hydrostatic Power Steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
7.7 kN / 1730 lb
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Suspension Seat ■
Wheelbase
53.1 in
55.1 in.
Overall Width
44.5 in
46.0 in.
Ground Clearance
8.3 in
6.3 in.
Height to Top of ROPS
Not Applicable
87.6 in.
Height to Top of Cab Model
79.6 in
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Height to Top of ROPS (folded)
Not Applicable
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
