Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

MahindraeMax20SHSTCab

—

KubotaB2301HSD

Comparison loaded for 2 tractors.

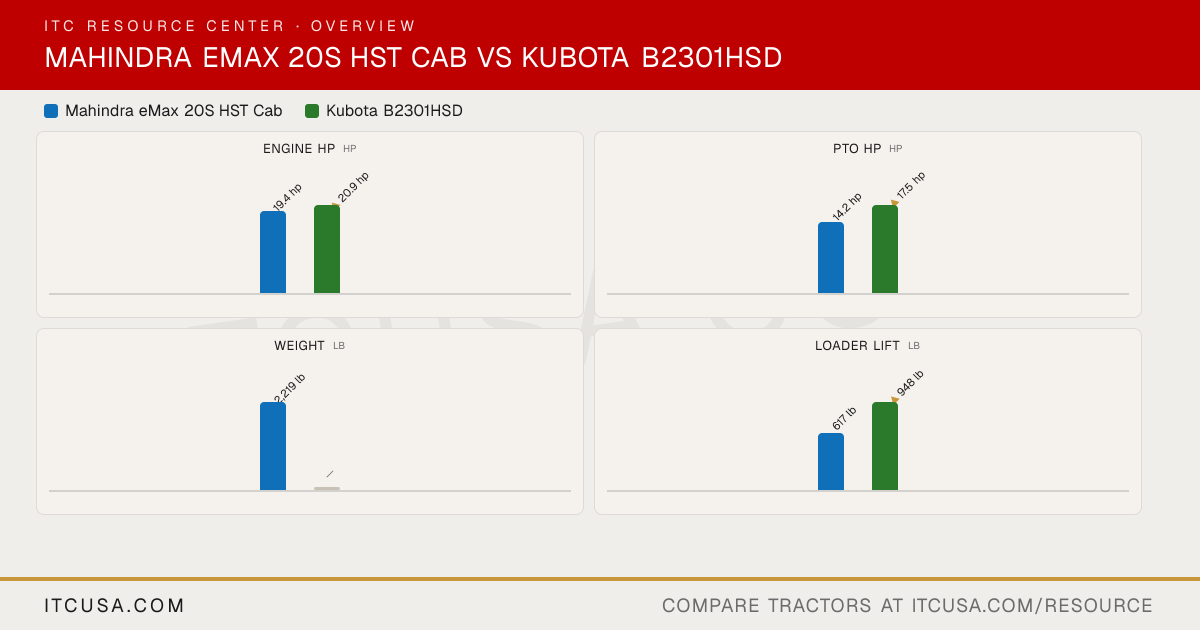

The headline numbers at a glance.

Mahindra eMax 20S HST CabKubota B2301HSD

Engine HPhp

19.4 hp

▲20.9 hp

PTO HPhp

14.2 hp

▲17.5 hp

Weightlb

2,219 lb

—

Loader Liftlb

617 lb

▲948 lb

3-Pt Lift (24 in)lb

680 lb

▲1,411 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S HST Cab	KubotaB2301HSD


PTO Power	14.2 hp	17.5 hp
Alternator	45 A, 12 V	Not Published
Air Cleaner	Not Published	Dual paper element
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	Indirect Injection	Not Published
Displacement	60.6 in³	61.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2800 rpm
Cooling System Type	Water-cooled	Pressurized radiator
Engine Manufacturer	Yanmar	Kubota
Engine Power (Gross)	19.4 hp	20.9 hp
Engine Emissions Constraints	Complies with US TIER-4 Final Norms	Not Published

Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	2219 lb	Not Applicable

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Dual pump
Steering Flow	2.1 gpm	Not Published
Implement Flow	4.1 gpm	Not Published
Total Hydraulic Flow	6.2 gpm	8.3 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.2 gpm	8.3 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 @ 2942 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position control valve
Hitch Lift Capacity	Not Published	1808 lb
Mid-PTO Availability	Available; 2500 @ 2958 rpm	2500 rpm
Category, 3-Point Hitch	CAT I Narrow with Check Chains	Category I
Hitch Lift Capacity (at 24”)	680 lb	1411 lb

R3 Turf - Rear	26X12-12	Not Published
R3 Turf - Front	18X8.5-10	Not Published
Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agricultural
R4 Industrial - Rear	26X12-12	Not Published
R4 Industrial - Front	18X8.5-10	Not Published
R1 Agricultural - Rear	26X12-12	9.5-16
R1 Agricultural - Front	18X8.5-10	8.0-12

Coolant Capacity	Not Published	4.0 qt
Crankcase Capacity	Not Published	3.3 qt
Fuel Tank Capacity	6.6 gal	6.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	4.0 gal

Loader Lift Height	71.3 in	78.5 in
Loader Breakout Force	1235 lb	2146 lb
Quick Attach Loader System	6.1 gal: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front-implement connection.	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	948 lb

Clutch	Dry-Single	N/A
No. of Speeds	Infinite / 2 ranges	3 ranges
Transmission Type	HST	Hydrostatic transmission
Max Travel Speed (Forward)	7.8 mph	11.9 mph
Max Travel Speed (Reverse)	Not Published	8.9 mph
Differential Lock & Limited Slip Options	Not Published	Differential lock standard

Brakes	Wet Disc	Multi-plate wet disc
Steering	Power Steering	Hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	High-back seat designed to absorb shock; armrests standard (HST models)

Wheelbase	53.1 in	61.4 in
Overall Width	44.5 in	45.3 in
Ground Clearance	8.3 in	12.0 in
Height to Top of ROPS	Not Applicable	83.9 in
Height to Top of Cab Model	79.6 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	94.2 in	Not Published

Permanent page for this matchup: Mahindra eMax 20S HST Cab vs Kubota B2301HSD
