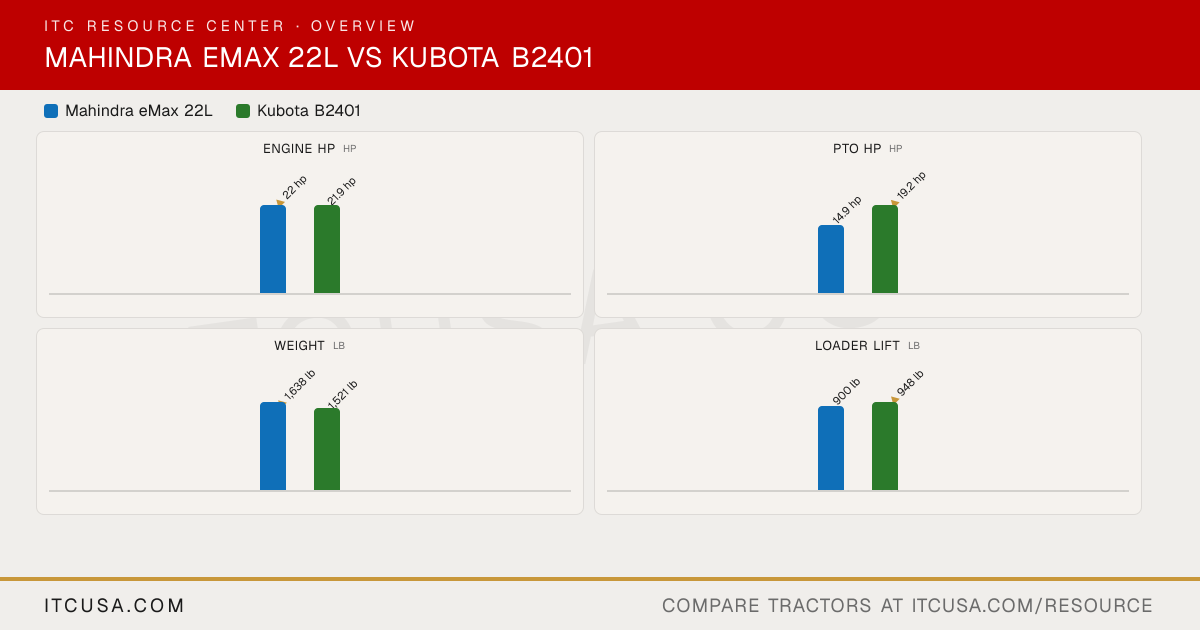

▶ EngineEngine Manufacturer Kukje Kubota Engine Model A1100N3 D1105 Engine Type Four-stroke, naturally aspirated, indirect injection, water-cooled diesel E-TVCS, liquid cooled, 3-cylinder diesel No. of Cylinders 3 3 Displacement 71.7 in³ 68.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 22 hp 21.9 hp PTO Power 14.9 hp 19.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid Cooled Air Cleaner Not Published Dual paper element Fuel System Indirect Injection Not Published Alternator 50 A, 12 V 40 A ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 4.5 gpm 4.4 gpm Steering Flow Not Published 2.6 gpm Total Hydraulic Flow 7.1 gpm 7.0 gpm Overall Hydraulic Pump Flow 7.1 gpm 7.0 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 5.8 gal 6.1 gal Coolant Capacity 3.7 qt 4.0 qt Crankcase Capacity 2.3 qt 3.3 qt Transmission / Hydraulic System Capacity Not Published 3.3 gal Front Axle Fluid Capacity Not Published 0.9 gal ▶ PTO & HitchPTO Type Independent Transmission driven with one way clutch PTO Rear 540 @ 2550 rpm 540, 1000 rpm Mid-PTO Availability Available; 2000 @ 2550 rpm 2500 rpm Category, 3-Point Hitch CAT I with Check Chains Category I Hitch Lift Capacity 1,323 lb 1,653 lb Hitch Lift Capacity (at 24”) Not Published 1,290 lb Lift Control Type Not Published Position control valve ▶ Transmission & DrivetrainTransmission Type HST - 2 range Gear (9 Forward, 3 Reverse) No. of Speeds Infinite 9 Forward, 3 Reverse Max Travel Speed (Forward) Not Published 11.7 mph Max Travel Speed (Reverse) Not Published 6.0 mph Clutch Dry-Single Dry single plate Differential Lock & Limited Slip Options Mechanical rear differential lock Standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Integral type power steering Brakes Wet Disc Multi-plate wet disc Seat Suspension & Adjustability Not Published Fore and aft slide adjustment (position adjust lever) Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 660 lb ▶ Dimensions & ManeuverabilityOverall Width 45.8 in 48.8 in Wheelbase 57.5 in 61.4 in Ground Clearance 9.4 in 12.2 in Min. Turn Radius without Brakes 7.2 ft 6.9 ft (with brake applied) Height to Top of ROPS 91.3 in 83.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable Not Published Overall Length 100.5 in 93.9 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 1,638 lb 1,521 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear R1 Agricultural - Front 6x12 6-12 R1 Agricultural - Rear 9.5x16 9.5-16 R3 Turf - Front 20x8-10 23x8.50-12 R3 Turf - Rear 29x12.5-15 33x12.5-15 R4 Industrial - Front 20x8-10 23x8.50-12 R4 Industrial - Rear 27x12.5-15 12-16.5 ▶ Loader & AttachmentsQuick Attach Loader System 25LSK: Skid steer style quick coupler, standard LA435 Swift-Tach loader; 1-lever quick coupler (standard); 2-lever quick coupler (optional) Loader Model 25LSK LA435 Loader Lift Height 25LSK: 75.3 in 78.5 in (at pivot pin) Loader Lift Capacity (Full Height) 25LSK: 900 lb 948 lb (at pivot pin) Loader Breakout Force 25LSK: 2,000 lb 2,146 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
