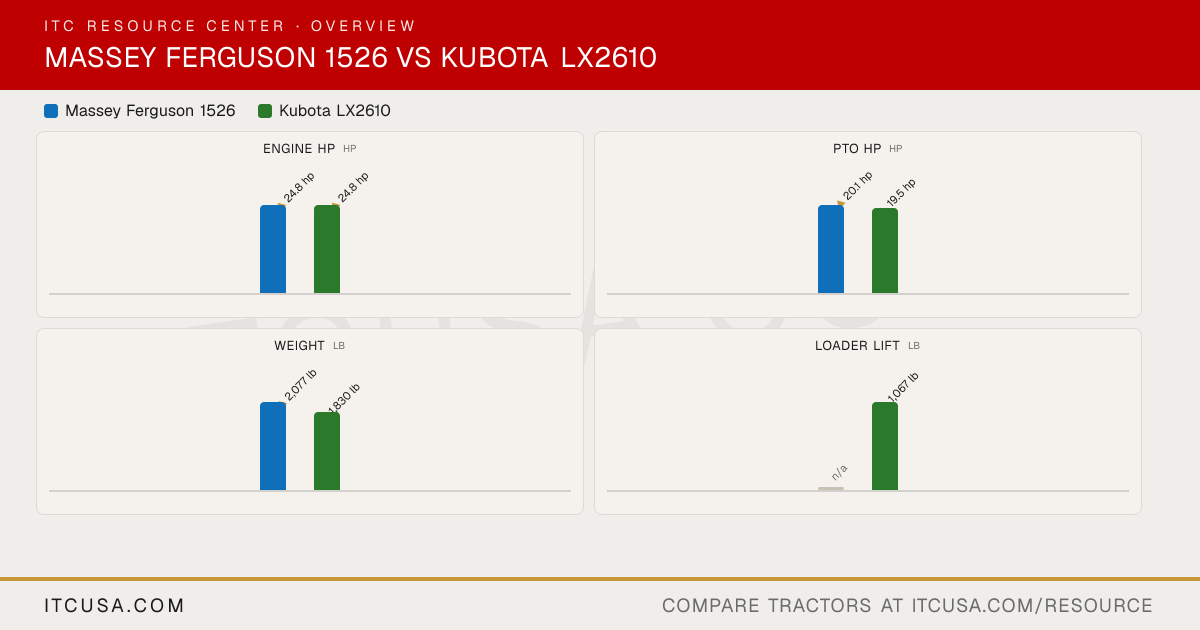

▶ EngineEngine Manufacturer Iseki Kubota Engine Model E3CD D1305-E4-D36-R Engine Type 3-cylinder, liquid-cooled diesel 3-cylinder, indirect injection, liquid-cooled diesel No. of Cylinders 3 3 Displacement 91.4 in³ 77 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 24.8 hp 24.8 hp PTO Power 20.1 hp 19.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Pressurized radiator Air Cleaner Not Published 4.5 in Dual paper element Fuel System Not Published Indirect injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 5.5 gpm 5.0 gpm Steering Flow 3.2 gpm 3.7 gpm Total Hydraulic Flow 8.7 gpm 8.7 gpm Overall Hydraulic Pump Flow 8.7 gpm 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 5.5 gpm Not Published No. of Standard Remote Valves Not Published None (remote valves optional) No. of Optional Remote Valves 1 Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 7.1 gal Coolant Capacity Not Published 4.5 qt Crankcase Capacity Not Published 4.2 qt Transmission / Hydraulic System Capacity Not Published 4.0 gal Front Axle Fluid Capacity Not Published 5.0 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Independent, 2000 rpm (optional) 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,322 lb 2,139 lb Hitch Lift Capacity (at 24”) 992 lb 1,676 lb Lift Control Type Position control Position control valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic Hydrostatic transmission No. of Speeds 3 hydrostatic ranges with cruise 3 ranges Max Travel Speed (Forward) Not Published 11.2 mph Max Travel Speed (Reverse) Not Published 8.4 mph Clutch Not Published Not Applicable Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydraulic power steering Brakes Wet, multiple disc Multi-plate wet disc Seat Suspension & Adjustability Adjustable mechanical suspension Deluxe high-back suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,100 lb ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 53.7 in Wheelbase 61.4 in 65.6 in Ground Clearance 11.6 in 14.6 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 96.1 in 88.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length 111 in 101.8 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 2,077 lb 1,830 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial, R14 R1 Agricultural - Front 7-12 7-12 R1 Agricultural - Rear 35x12.00-16.5 or 9.5-16 12.4-16 R3 Turf - Front 25x8.50-14 24x8.50-14 R3 Turf - Rear 36x13.50-15 13.6-16 R4 Industrial - Front 25x8.50-14 23X8.50-14 / 25X8.50-14 R4 Industrial - Rear 14-17 12.4-16 / 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA535: 2-lever quick coupler, standard; Swift-Tach, optional Loader Model FLx2106 LA535 Loader Lift Height FLx2106: 83 in (at pivot pin) 84 in (at pivot pin) Loader Lift Capacity (Full Height) FLx2106: 852 lb (to full height, at 19.5 in forward of pivot pin) 1,067 lb (at pivot pin) Loader Breakout Force FLx2106: 1,282 lb (at 19.5 in forward of pivot pin) 2,245 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
