Massey Ferguson 1726E vs Mahindra Max 25XL | Side-by-side comparison | ITC Resource Center
Compare Tractors

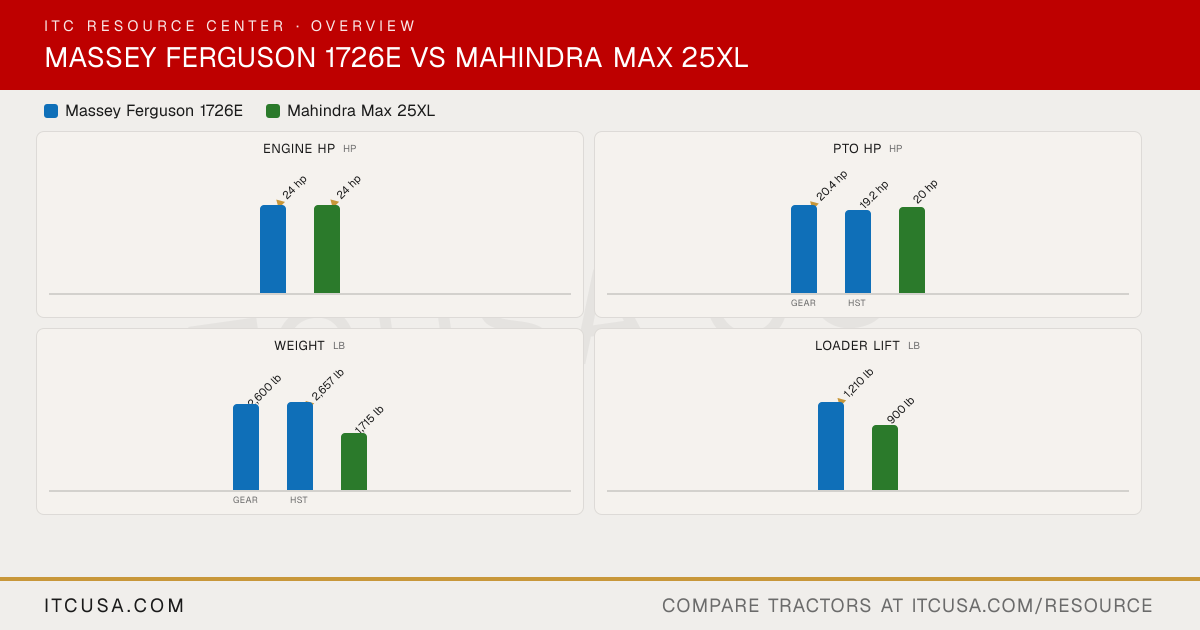

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson1726E
MahindraMax 25XL
Engine Manufacturer
Shibaura
Mitsubishi
Engine Model
Not Published
S3L2
Engine Type
3-cylinder diesel, liquid-cooled
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
No. of Cylinders
3
3
Displacement
91.5 in³
80.4 in³
Rated Engine Speed
2600 rpm
2500 rpm
Engine Power (Gross)
24 hp
24 hp
PTO Power
Gear: 20.4 hp; HST: 19.2 hp
20 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Water Cooled
Air Cleaner
Not Published
Not Published
Fuel System
Indirect low-pressure injection
Indirect Injection
Alternator
Not Published
50 A, 12 V
Pump Type
Gear-type pump
Not Published
Implement Flow
Not Published
4.6 gpm
Steering Flow
3.8 gpm
Not Published
Total Hydraulic Flow
10.5 gpm
7.3 gpm
Overall Hydraulic Pump Flow
Not Published
7.3 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
6.7 gpm
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Up to 2
Not Published
Fuel Tank Capacity
10.0 gal
6.1 gal
Coolant Capacity
1.32 gal
Not Published
Crankcase Capacity
1.22 gal
Not Published
Transmission / Hydraulic System Capacity
10.04 gal
Not Published
Front Axle Fluid Capacity
1.48 gal
Not Published
PTO Type
Transmission driven
Live
PTO Rear
540 rpm (1-3/8 in 6-spline)
540 @ 2376 rpm
Mid-PTO Availability
Not Published
Standard; 2000 @ 2556 rpm
Category, 3-Point Hitch
Category I
CAT I
Hitch Lift Capacity
2,205 lb
1354 lb
Hitch Lift Capacity (at 24”)
1,600 lb
Not Published
Lift Control Type
Not Published
Not Published
Transmission Type
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
HST - 2 ranges
No. of Speeds
Gear: 9F / 3R; HST: 3-range infinite
Infinite
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Gear: dry single disc
Dry - Single
Differential Lock & Limited Slip Options
Mechanical engagement via heel pedal
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Not Published
Brakes
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Wet disc
Seat Suspension & Adjustability
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Not Published
Front Axle Type
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
116.0 in (w/o 3-point linkage) (without 3-point hitch)
106.1 in
Overall Width
52.4 in
50.7 in
Wheelbase
65.9 in
58.2 in
Ground Clearance
Not Published
7.2 in
Min. Turn Radius without Brakes
Not Published
7.2 ft
Height to Top of ROPS
97.6 in
81.5 in
Height to Top of ROPS (folded)
63.8 in
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
Gear: 2,600 lb; HST: 2,657 lb
1715 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
Not Published
6x12
R1 Agricultural - Rear
Not Published
9.5x16
R3 Turf - Front
Not Published
20x8-10
R3 Turf - Rear
Not Published
29x12.5-15
R4 Industrial - Front
Not Published
20x8-10
R4 Industrial - Rear
Not Published
27x12.5-15
Quick Attach Loader System
L105E: skid steer or pin-type implement attachments
Not Published
Loader Model
L105E
MXL25L
Loader Lift Height
L105E: 95.7 in
MXL25L: 75 in
Loader Lift Capacity (Full Height)
L105E: 1,210 lb
MXL25L: 900 lb (at pivot pin)
Loader Breakout Force
L105E: 1,460 lb
MXL25L: 2000 lb (at pivot pin)
Warranty Length & Coverage
5-year powertrain warranty
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
